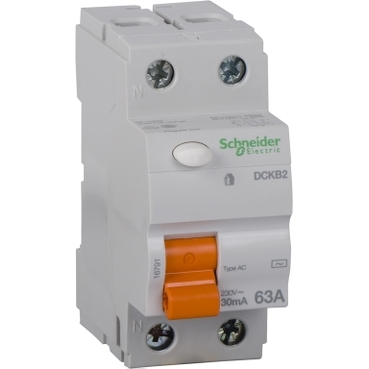

16791| Residual current circuit breaker (RCCB), Domae, 2P, 63A, AC type, 30mA

This product is a Domae residual current circuit breaker (RCCB). It is a 2P circuit breaker with 63A In rated current, a sensitivity of 30mA with a AC type protection class. This product protects against electrical shock by direct or indirect contact and fire hazards. It performs the function of disconnection of electrical circuits in case of earth fault. It has control of on load electric circuit, already protected against overloads and short circuit. This product is compliant with IEC 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 630A. The (Inc/IΔc) conditional rated short circuit current is 6kA. The Ue operational voltage is 230VAC. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The dimensions are (W) 36mm x (H) 81mm x (D) 76mm. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -5°C to 40°C. The storage temperature is from -40°C to 60°C.
