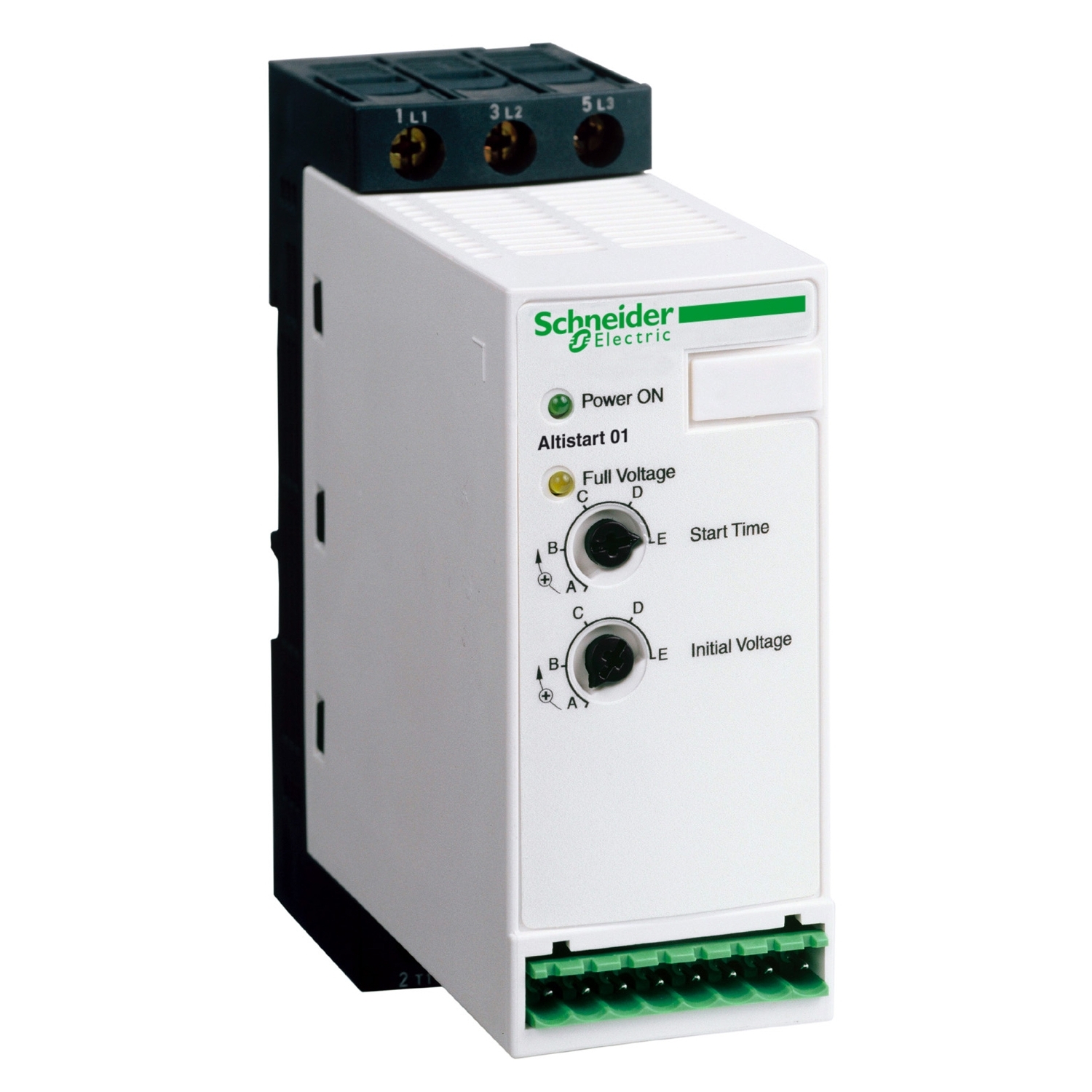

ATS01N125FT | Soft starter for asynchronous motor, Altistart 01, ATS01, 25A, 110 to 480V, 2.2 to 11kW
| brands | Schneider Electric |
|---|---|
| Range of product | Altistart 01 |
| Product or component type | Soft starter |
| Product destination | Asynchronous motors |
| Product specific application | Simple machine |
| Device short name | ATS01 |
| Phase | 1 phase |
| power supply frequency | 50…60 Hz – 5…5 % |
| Type of start | Start with voltage ramp |
| IcL starter rating | 25 A |
| Motor power kW | 11 kW, 3 phase 400 V 3 kW, 3 phase 230 V 4 kW, 3 phase 230 V 9 kW, 3 phase 400 V 7.5 kW, 3 phase 400 V 5.5 kW, 3 phase 230 V 2.2 kW, 1 phase 230 V |
| Utilisation category | AC-53B EN/IEC 60947-4-2 |
| Current consumption | 125 A at nominal load |
| Power dissipation in W | 1 W at full load and at end of starting 126 W in transient state |
| Maximum Horse Power Rating | 11 hp, 3 phase 460 V 2 hp, 3 phase 210 V 3 hp, 3 phase 210 V 5 hp, 3 phase 230 V 9 hp, 3 phase 460 V 7.5 hp, 3 phase 230 V |
| Marking | CE |
| Function available | Integrated bypass |
| Operating position | Vertical +/- 10 degree |
| Height | 4.88 in (124 mm) |
| Width | 1.77 in (45 mm) |
| 1.77 in (45 mm) | 5.16 in (131 mm) |
| Net weight | 0.77 lb(US) (0.35 kg) |
