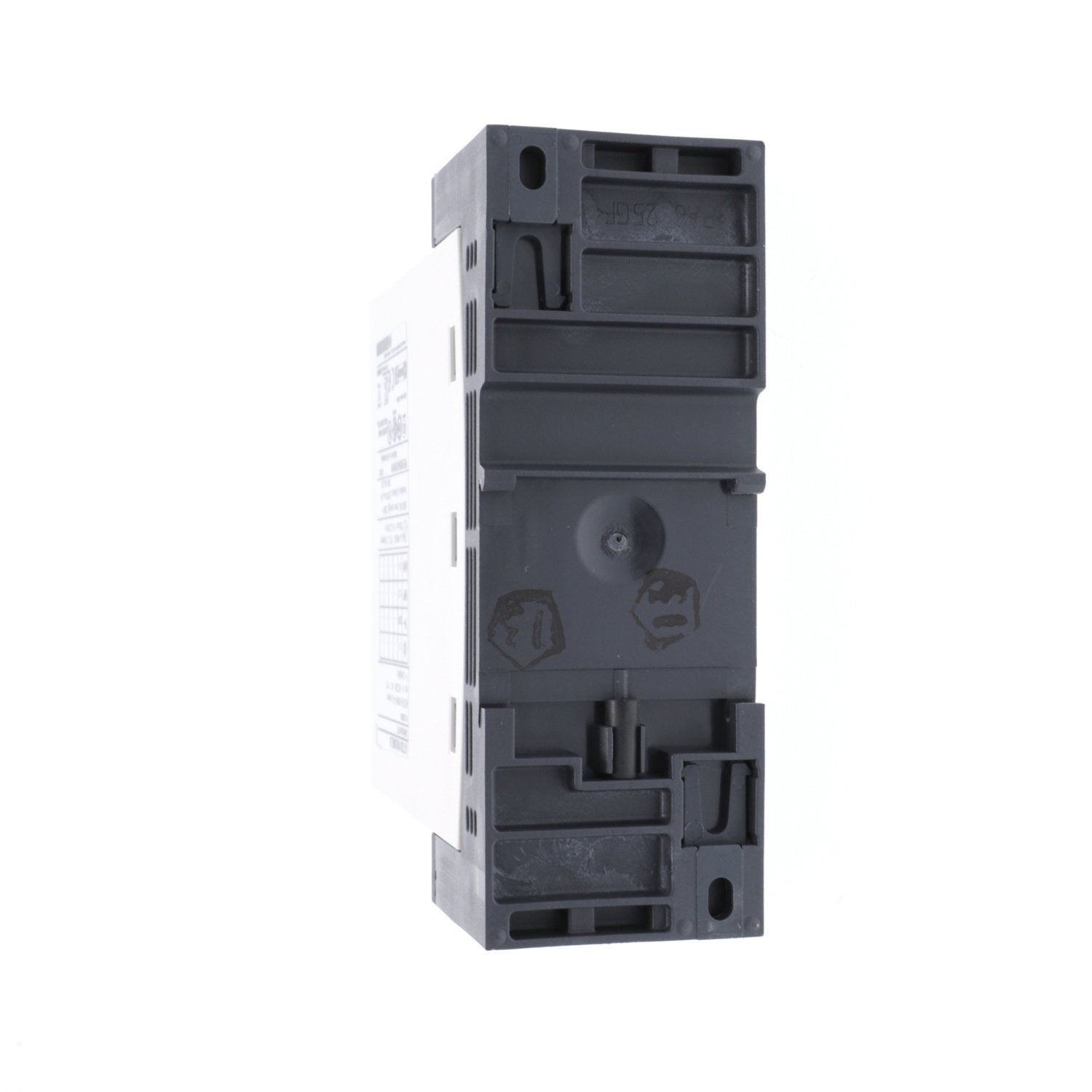

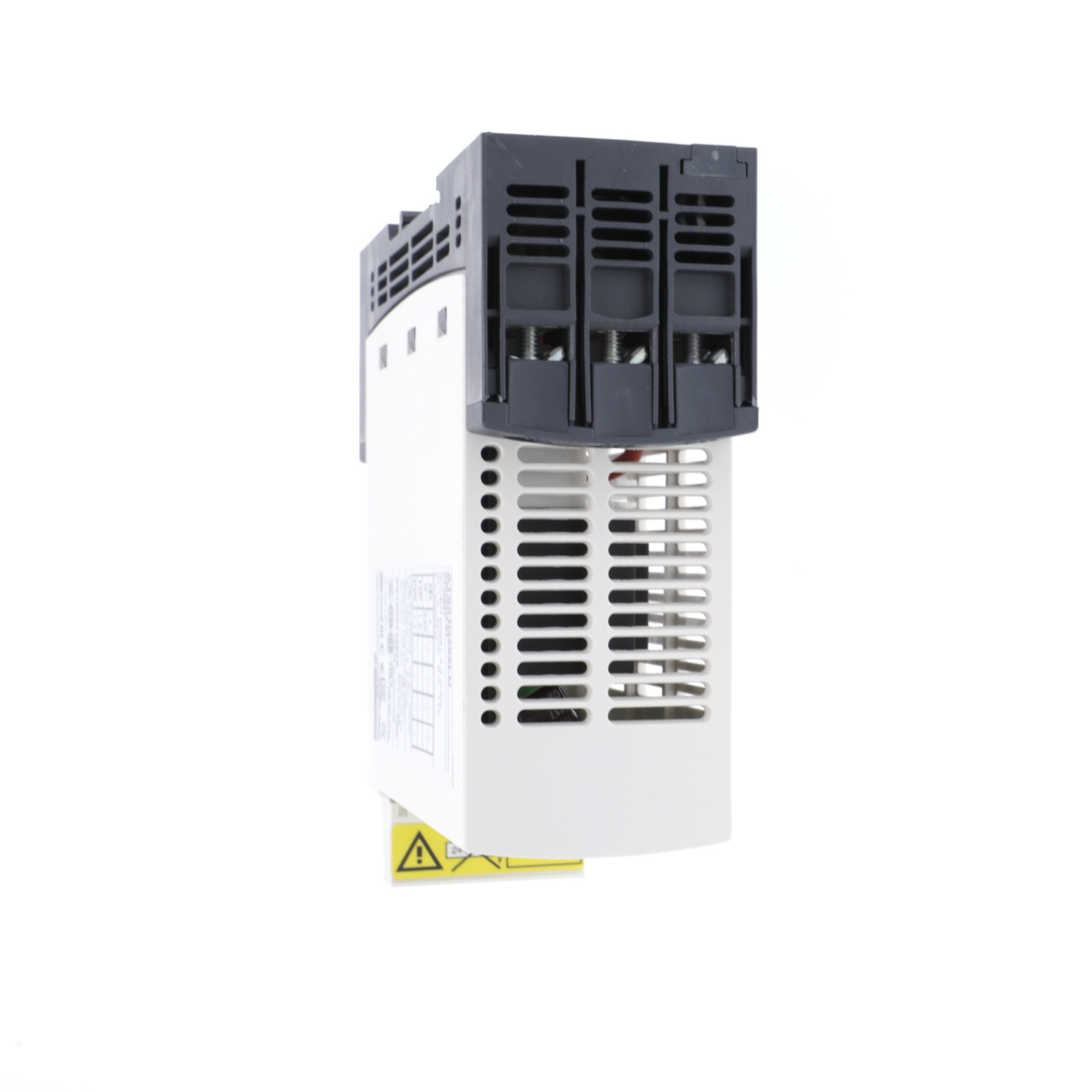

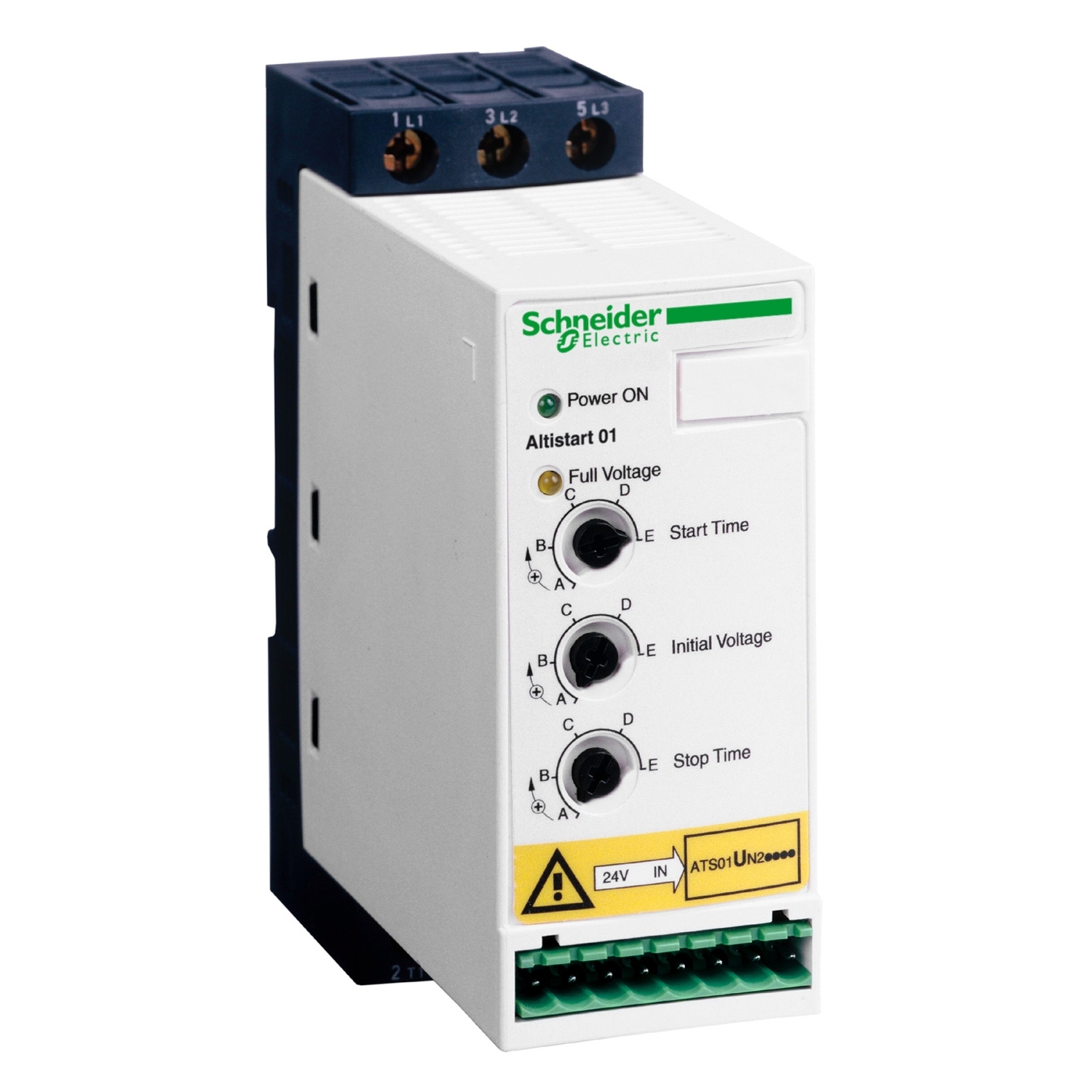

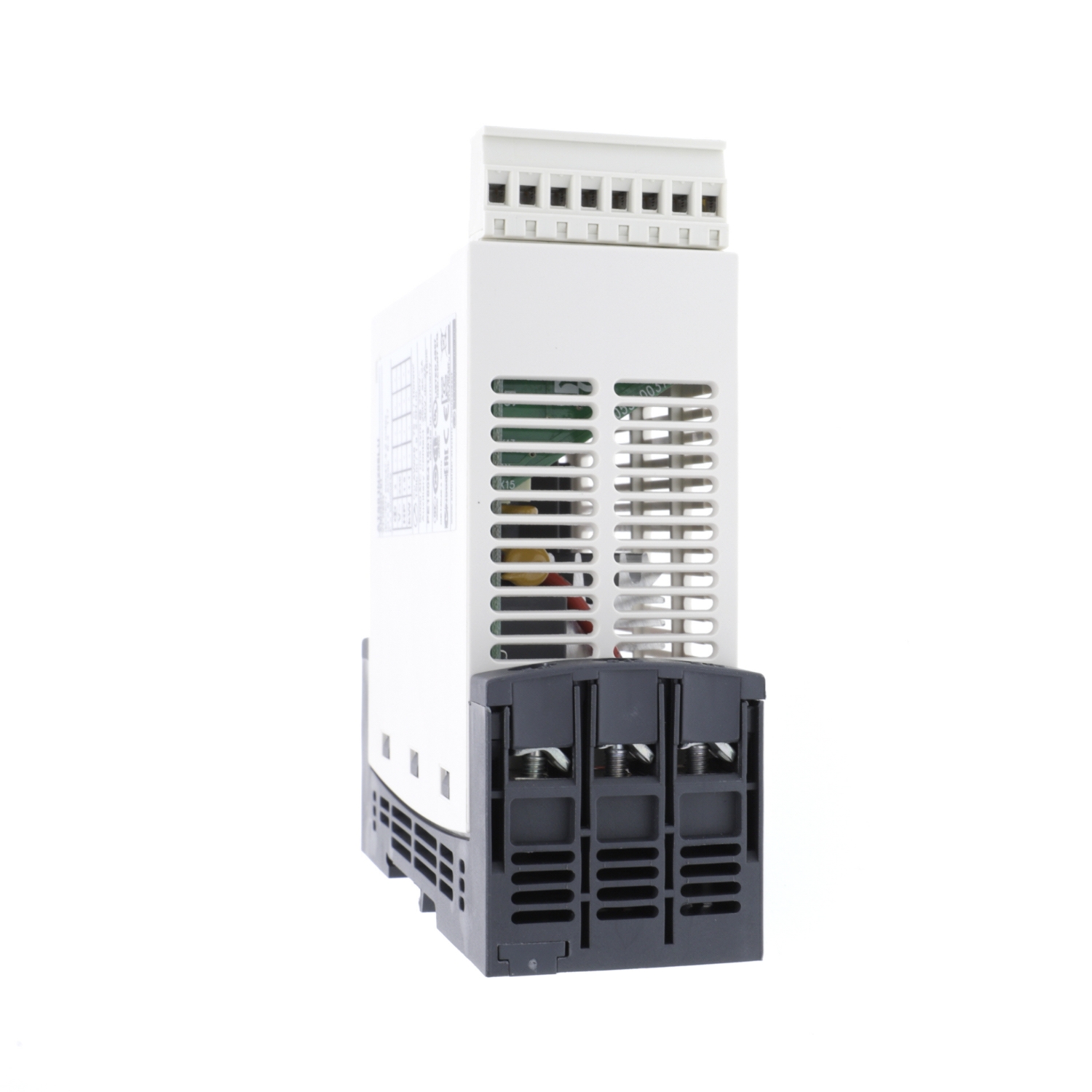

ATS01N212QN | Soft starter for asynchronous motor, Altistart 01, ATS01, 12A, 380 to 415V, 5.5kW
Out of stock -42%
Additional Info
Reviews
Additional Info
| brands | Schneider Electric |
|---|---|
| Range of product | Altistart 01 |
| Product or component type | Soft starter |
| Product destination | Asynchronous motors |
| Product specific application | Simple machine |
| Device short name | ATS01 |
| Phase | 3 phase |
| power supply frequency | 50…60 Hz – 5…5 % |
| Type of start | Start with voltage ramp |
| IcL starter rating | 12:00 AM |
| Motor power kW | 5.5 kW, 3 phase 380…415 V |
| Utilisation category | AC-53B EN/IEC 60947-4-2 |
| Current consumption | 60 A at nominal load |
| Power dissipation in W | 4 W at full load and at end of starting 124 W in transient state |
| Marking | CE |
| discrete input logic | Positive LI1, LI2, BOOST = 0.5 mA |
| Function available | Integrated bypass |
| Operating position | Vertical +/- 10 degree |
| Height | 4.88 in (124 mm) |
| Width | 1.77 in (45 mm) |
| 1.77 in (45 mm) | 5.16 in (131 mm) |
| Net weight | 0.93 lb(US) (0.42 kg) |
