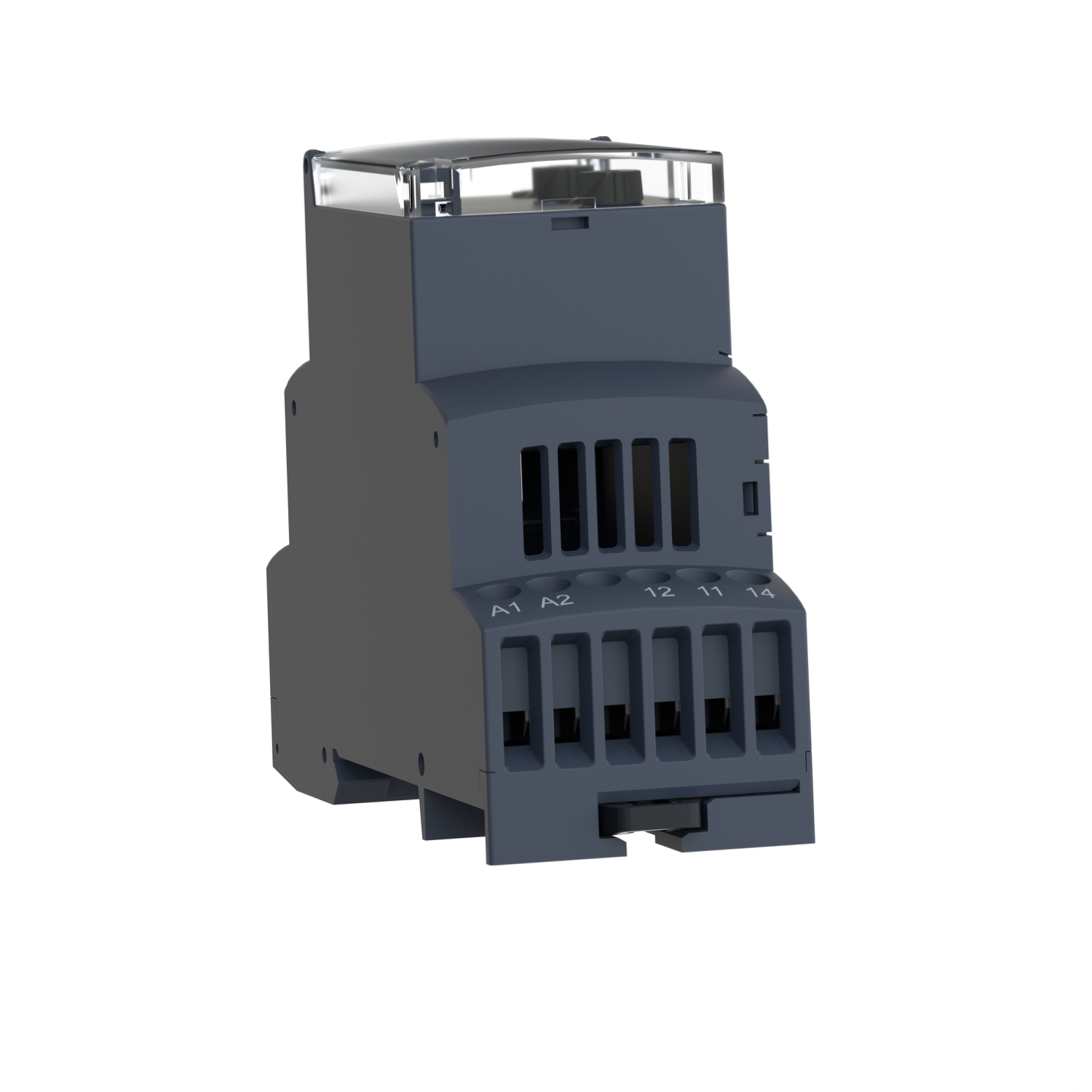

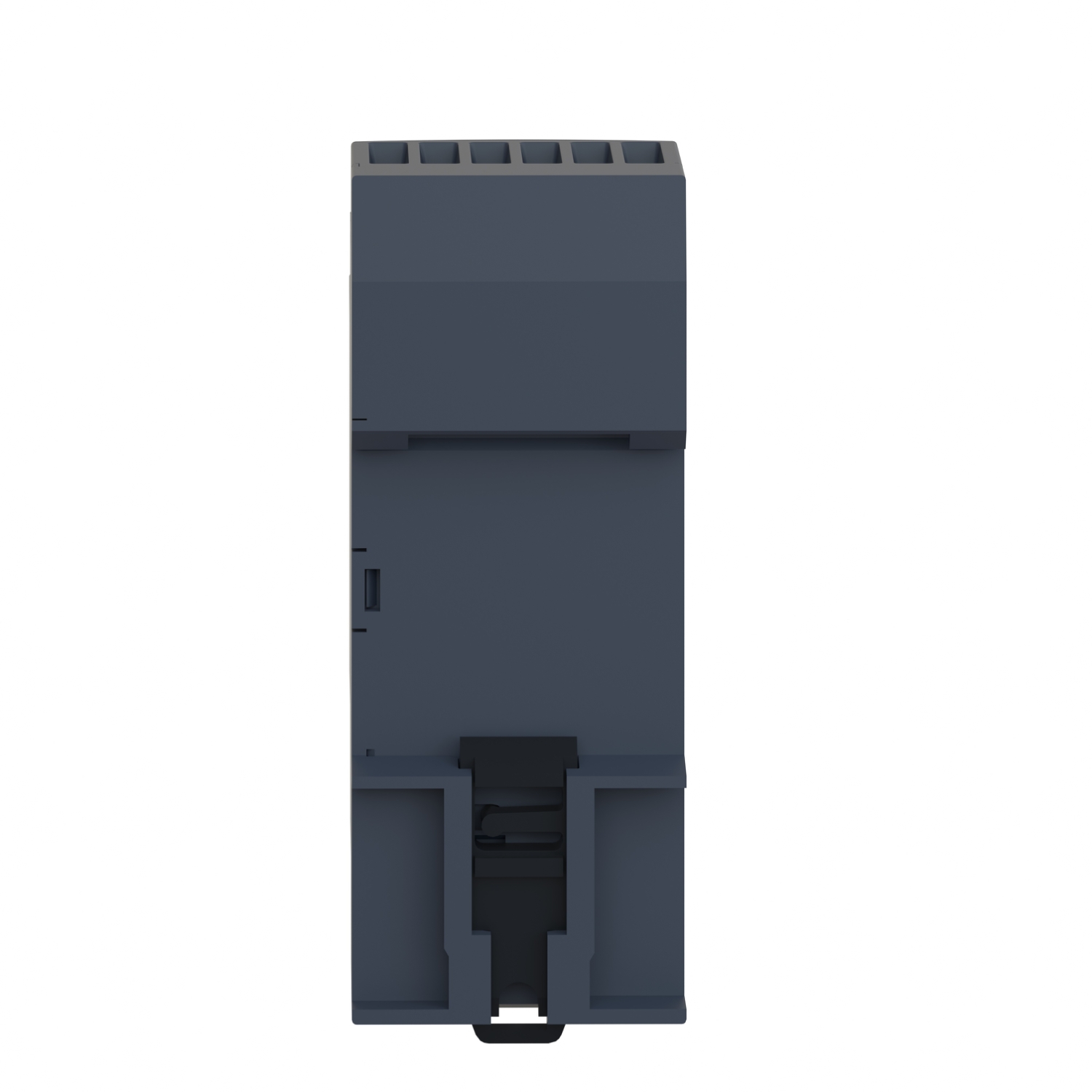

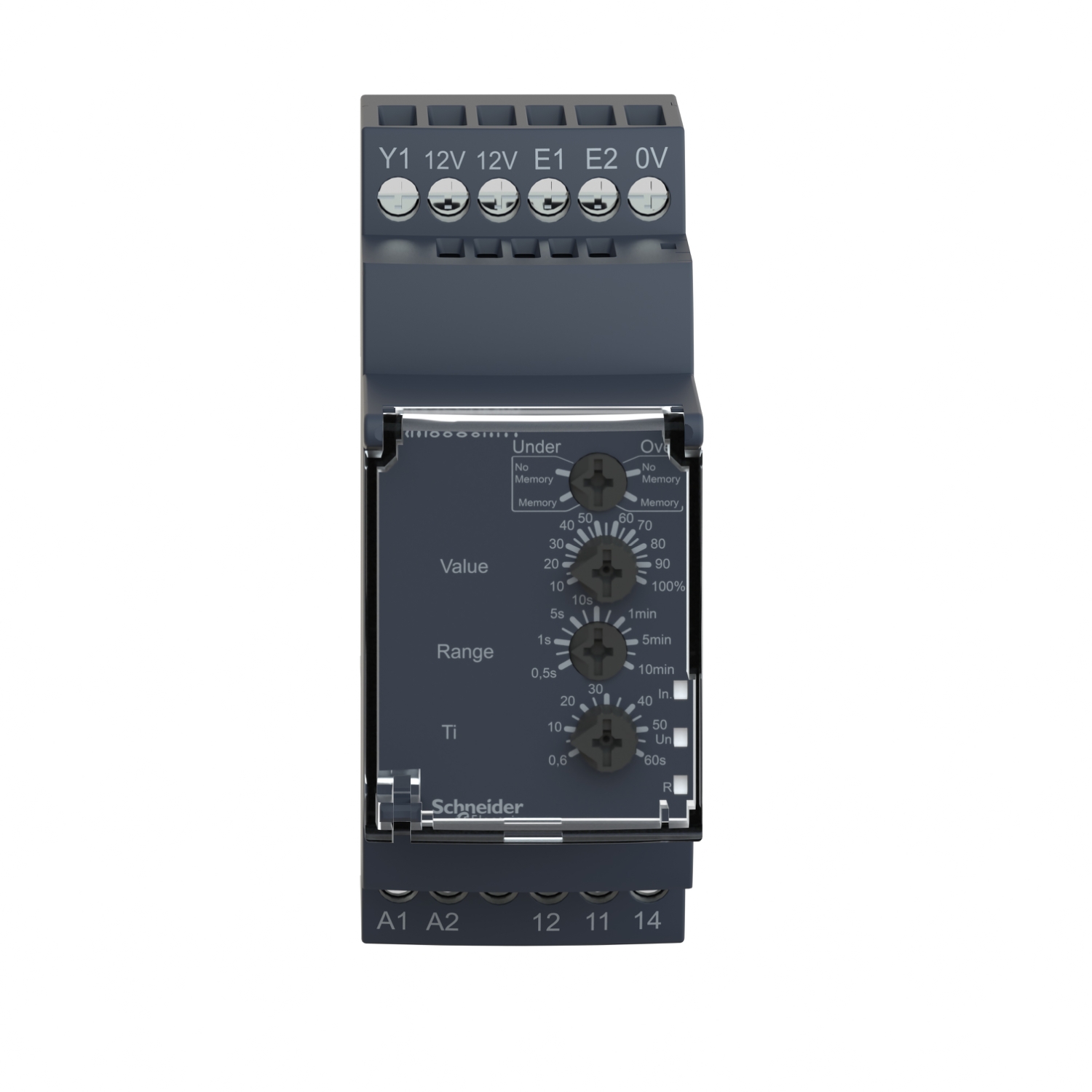

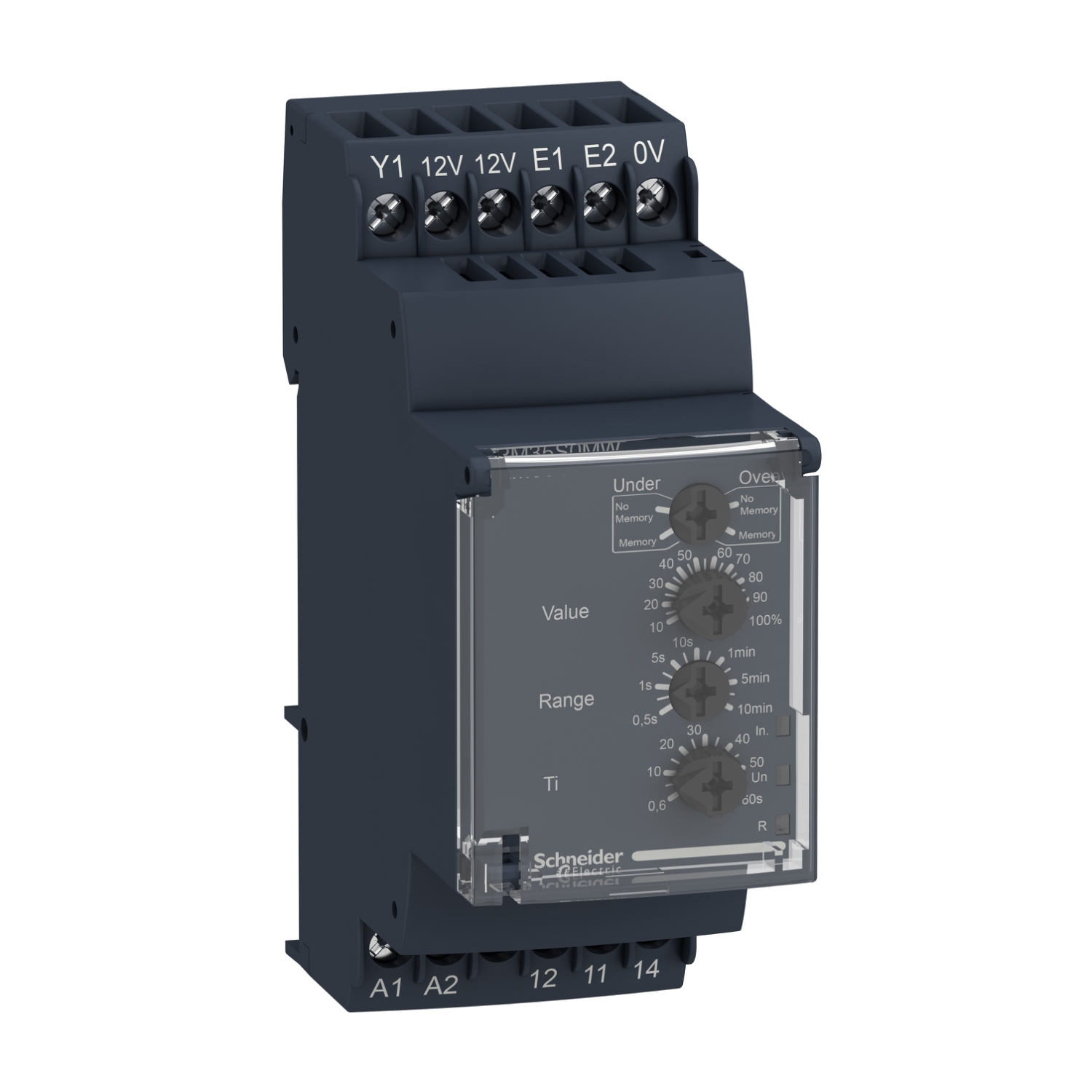

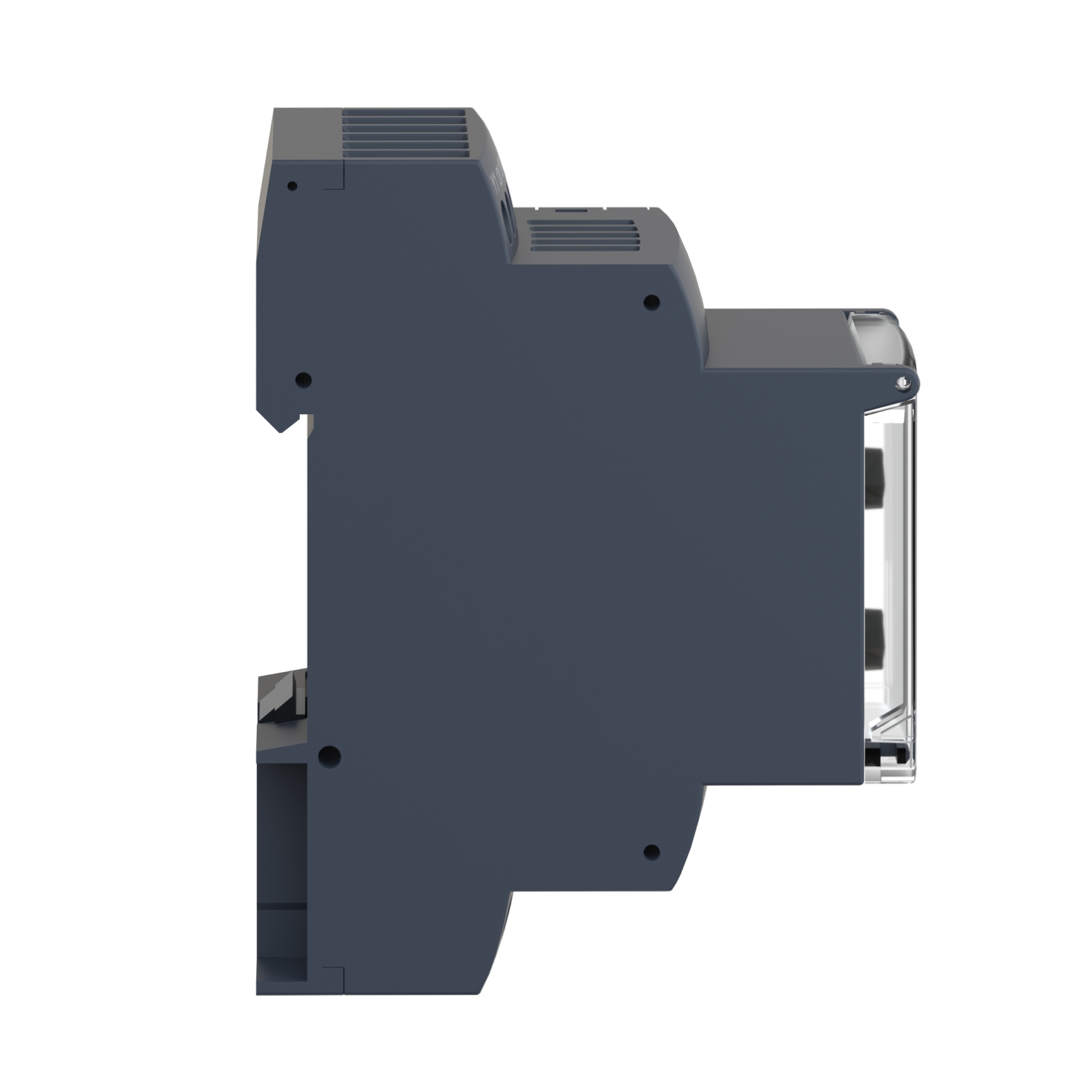

RM35S0MW | Speed control relay RM35-S – 24..240 V AC/DC
Out of stock -42%
Additional Info
Reviews
Additional Info
| brands | Schneider Electric |
|---|---|
| Range of product | Harmony Control Relays |
| Product or component type | Speed control relay |
| Relay type | Speed control relays |
| Relay name | RM35S |
| Relay monitored parameters | Overspeed Underspeed |
| Housing material | Self-extinguishing plastic |
| Mechanical durability | 30000000 cycles |
| Width | 35 mm |
| Switching capacity in VA | 1250 VA |
| Marking | CE : EMC 89/336/EEC CE : 73/23/EEC |
| Contacts material | Cadmium free |
| Maximum switching voltage | 250 V AC/DC |
| Output contacts | 1 C/O |
| Nominal output current | 5:00 AM |
| Measurement accuracy | +/- 10 % of the full scale value |
| Measurement error | +/- 0.1 %/°C with temperature variation < +/- 1 % over the whole range with voltage variation |
| run-up delay at power-up | 0.05 s |
| Minimum switching current | 10 mA at 5 V DC |
| Response time | 15 ms max (on crossing the threshold) |
| Supply frequency | 50/60 Hz +/- 10 % |
| Operating rate | <= 360 operations/hour full load |
