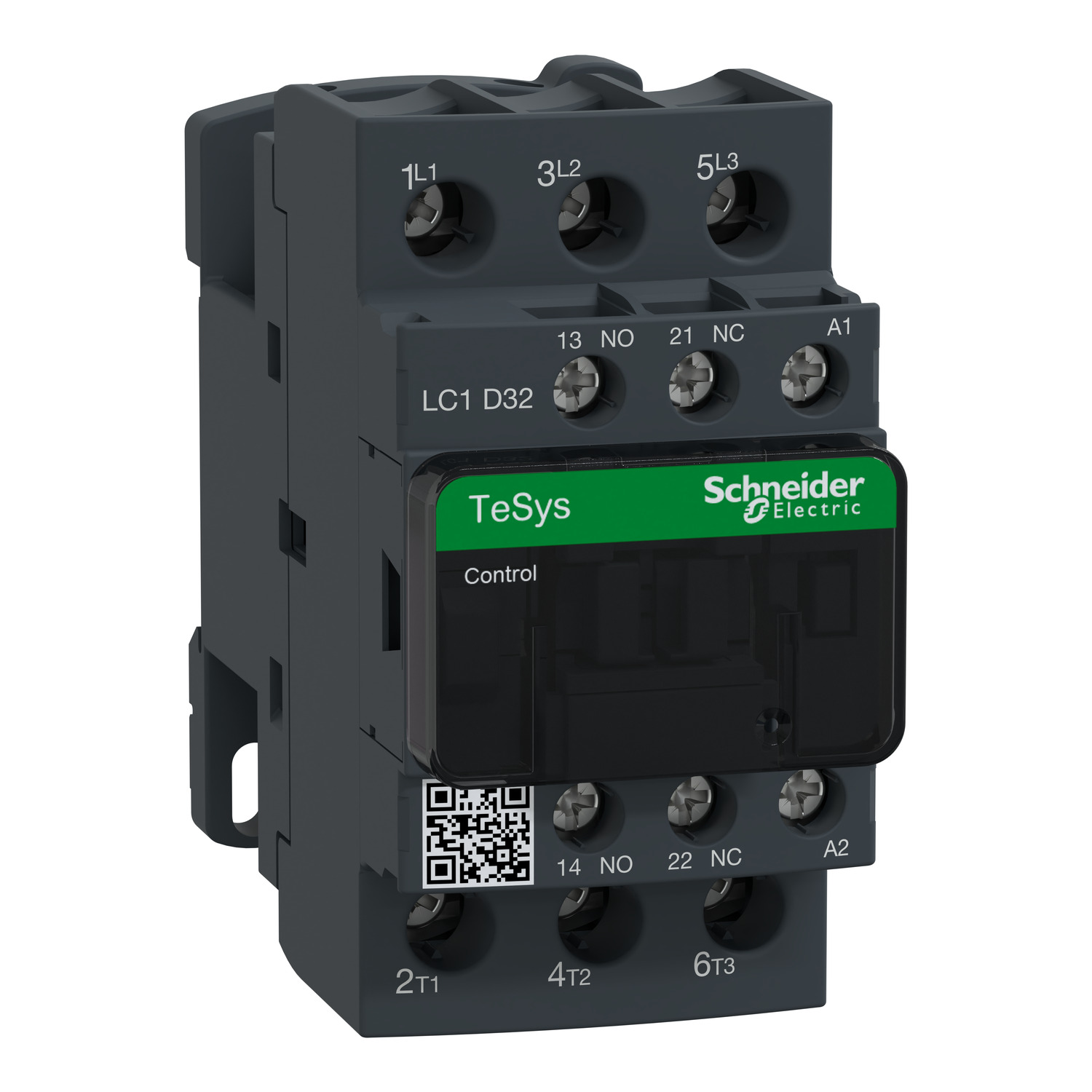

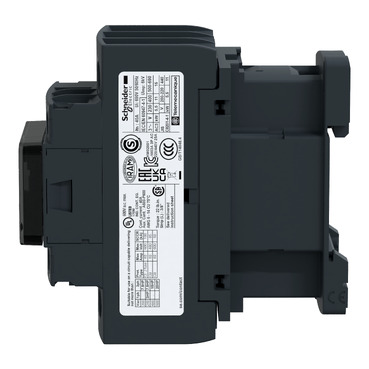

Schneider LC1D32F7 | TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 32 A – 110 V AC coil

Schneider LC1D32F7 | TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 32 A – 110 V AC coil

Technical Specifications:

• Model: LC1D32F7

• Product Series: TeSys D

• Device Type: Contactor

• Poles: 3 poles (3 Normally Open contacts – 3 NO)

• Utilization Category: AC-3 (for motor control)

• Rated Operational Voltage (Ue): Up to 440 V AC

• Rated Current (Ie) AC-3: 32 A (at 440 V for motor control applications)

• Control Circuit Voltage: 110 V AC (coil voltage)

• Frequency: 50/60 Hz

• Conventional Thermal Current (Ith): 40 A

• Electrical Durability: 1.5 million operations (AC-3 category)

• Mechanical Durability: 10 million operations

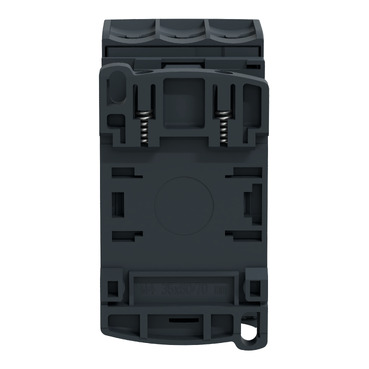

• Mounting Type: DIN rail or screw mounting

• Standards Compliance: IEC 60947-4-1, UL, CSA, RoHS

• Ambient Operating Temperature: -5°C to +60°C

• Protection Class: IP20 (when mounted inside an enclosure)

Key Features:

• Compact Design: Space-saving format suitable for control panels and distribution boards

• High Performance: Reliable for switching 3-phase motors up to 15 kW at 400 V AC

• Long Mechanical Life: Up to 10 million operations for extended durability

• Coil with Low Inrush: 110 V AC control coil with low power consumption and silent operation

• Easy Integration: Snap-on auxiliary contacts and timers for quick customization

• Flexible Mounting: Can be installed on DIN rail or fixed with screws

• Wide Accessory Range: Compatible with TeSys modular accessories (aux contacts, timers, suppressors)

• Safe Operation: Finger-safe terminals and clear labeling for safe wiring and troubleshooting

• Global Compliance: Certified for use in international markets (CE, UL, CSA)

Typical Applications:

• Motor Starters: Ideal for direct-on-line (DOL) starting of motors up to 15 kW

• Control Panels: Frequently used in machinery, HVAC, and process automation panels

• Pumps and Fans: Switching and controlling motors in water systems and ventilation setups

• Compressors: Commonly installed in compressor control circuits

• Industrial Automation: Suitable for use in relay logic and automated equipment

• Lighting Control: Applicable in switching large lighting loads in commercial or industrial setups

• Machinery Protection: Part of motor protection circuits when combined with overload relays
