1. Technical Specifications NSYBP2010

1. Product Name:

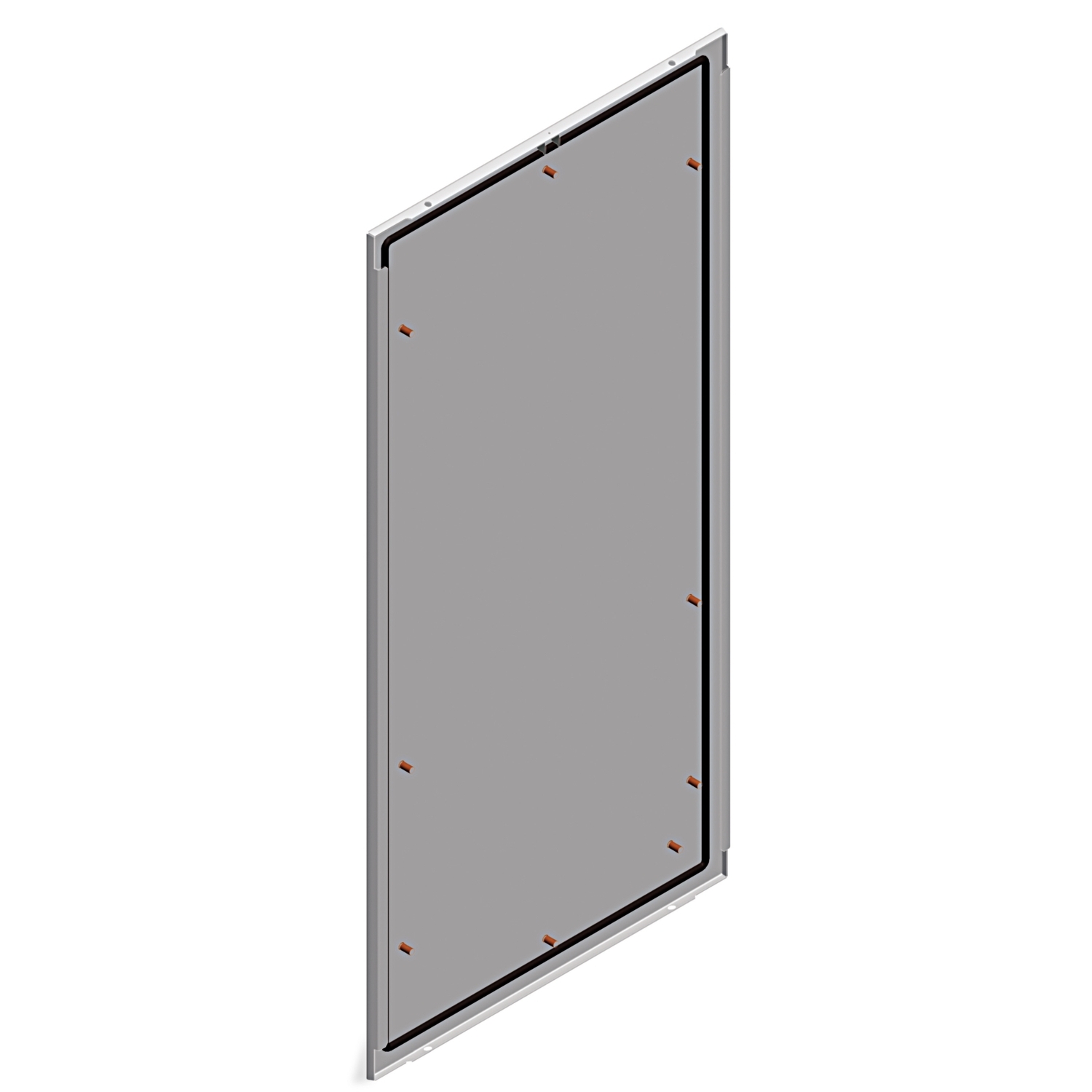

   Rear Panel with External Fixing

2. Model Number:
   NSYBP2010

3. Product Range:
   Spacial SF – Modular Steel Enclosures

4. Panel Dimensions:

   • Height: 2000 mm

   • Width: 1000 mm

   • Designed to fit enclosures with a 2000×1000 mm frame

5. Material:
   Sheet steel

6. Surface Finish:

   • RAL 7035 light grey

   • Epoxy-polyester powder coating

   • Anti-corrosion treated for long-term durability

7. Mounting Type:
   External fixing – rear panel is fixed from outside the enclosure for ease of access and quick removal

8. Ingress Protection (with complete enclosure):

   • Up to IP55/IP66 depending on assembly with sealing gasket and compatible components

   • Provides environmental sealing against dust and water ingress

9. Mechanical Resistance:
   Designed to enhance the structural integrity and security of the rear side of the enclosure

10. Standards Compliance:

• IEC 62208

• RoHS and REACh compliant

11. Weight and Thickness:
    Varies depending on configuration; typical thickness 1.5 mm

2. Key Features NSYBP2010

1. Perfect Fit for Spacial SF Frames:
   Specifically engineered to be used with Spacial SF 2000×1000 mm enclosures, ensuring a secure and accurate fit.

2. External Fixing System:
   Allows fast and efficient panel installation and removal from the outside without opening the enclosure door or dismantling internal parts.

3. Robust Steel Construction:
   Ensures high durability and resistance to mechanical impact in demanding environments.

4. Sealing Compatibility:
   Can be equipped with gaskets to support high IP ratings when used as part of a complete enclosure.

5. Aesthetic and Functional Finish:
   Smooth RAL 7035 powder coating provides corrosion resistance and a uniform industrial appearance.

6. Flexible Maintenance Access:
   Removable design allows quick access to rear components, wiring, or internal devices without interrupting front panel operations.

7. Industrial-Grade Durability:
   Built to withstand heavy-duty applications in harsh environments, including dust, humidity, and light water exposure.

8. Secure Fixing Points:
   Multiple pre-drilled holes ensure strong anchoring to the enclosure frame with included fasteners.

9. Consistent with Modular Design:
   Part of Schneider Electric’s modular Spacial SF series, making upgrades and modifications straightforward.

10. Environmentally Safe:
    Manufactured according to RoHS and REACh directives, using non-hazardous materials.

3. Common Applications NSYBP2010

1. Automation and Control Panels:
   Used in industrial enclosures housing PLCs, drives, and automation controls where rear access is required.

2. Power Distribution Cabinets:
   Provides a sealed rear barrier for low-voltage switchboards in factories or commercial buildings.

3. Electrical Infrastructure Projects:
   Forms part of enclosures used in substations, energy monitoring systems, and utility panels.

4. Data Centers and Communication Cabinets:
   Used in server and network enclosures where rear cabling access and shielding is needed.

5. Machine and Equipment Cabinets:
   Installed on machinery control enclosures for easy access during maintenance and retrofitting.

6. Transport, Rail, and Tunnel Systems:
   Applied in control and monitoring enclosures where frequent access to rear instrumentation is required.

7. OEM Manufacturing Panels:
   Ideal for enclosure manufacturers building modular control cabinets for various industrial applications.
