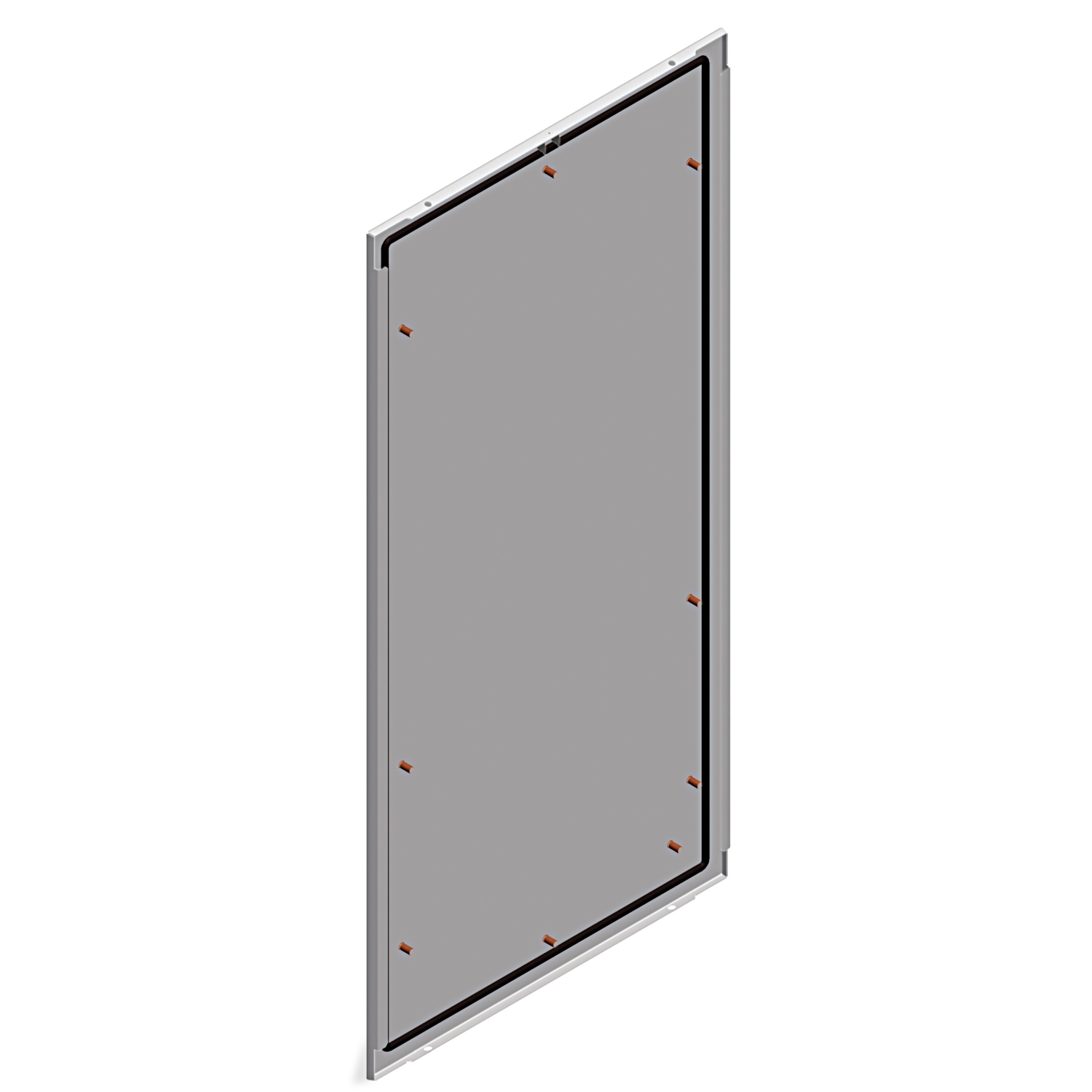

1. Technical Specifications NSYSFC106

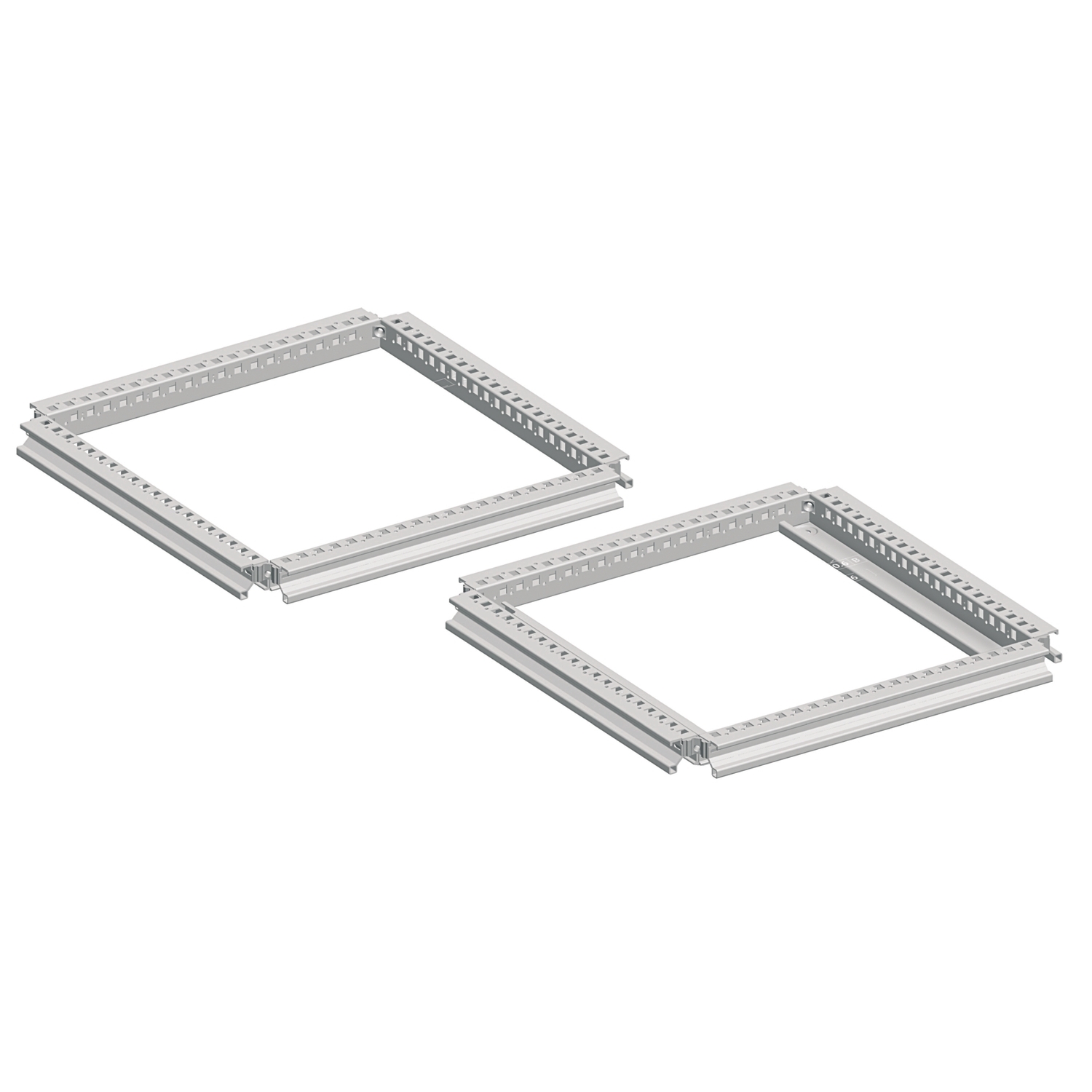

1. Product Name:
   Bottom and Top Frame

2. Model Number:
   NSYSFC106

3. Product Range:
   Spacial SF – Modular steel enclosures

4. Frame Dimensions:

   • Height: 1000 mm

   • Width: 600 mm

   • Designed to match enclosure dimensions W600 x H1000 mm

5. Material:
   High-strength galvanized steel with anti-corrosion surface treatment

6. Finish:
   RAL 7035 light grey polyester powder coating (standard Spacial SF finish)

7. Mounting Type:
   Fixed to the top and bottom sections of Spacial SF enclosures

8. Modular Construction:
   Designed as part of the Spacial SF modular enclosure system

9. Ingress Protection:
   Depends on full enclosure configuration; designed to support IP55/IP66 levels when used with compatible components

10. Environmental Compliance:

• RoHS Compliant

• REACh Compliant

11. Mechanical Resistance:
    Built to support structural integrity of full enclosure, including loading of doors, panels, and internal equipment

12. Compatibility:
    Suitable for use with other components in the Spacial SF system such as side panels, doors, mounting plates, and plinths

2. Key Features NSYSFC106

1. Integral Part of Spacial SF Structure:
   Forms the upper and lower framework of Spacial SF enclosures, essential for the enclosure’s mechanical rigidity.

2. Modular and Scalable Design:
   Enables easy configuration and expansion of enclosures by combining with other frame parts.

3. Durable Steel Construction:
   Ensures long-term mechanical strength and corrosion resistance in demanding environments.

4. Precision Fabrication:
   Pre-engineered holes and fixing points for seamless integration with other Spacial components.

5. Easy Assembly:
   Designed for quick and secure connection with vertical uprights using standard tools.

6. Supports High Load Capacities:
   Reinforced for stability and load-bearing capacity required in electrical panels and automation systems.

7. Optimized Surface Protection:
   Powder-coated for extended protection against environmental wear, even in industrial conditions.

8. Consistent Aesthetic:
   Matches the RAL 7035 finish and design of the entire Spacial SF system for a professional and uniform look.

9. Flexible Mounting Options:
   Supports a wide variety of internal accessories such as DIN rails, cable trays, and mounting plates.

10. Standardized Dimensions:
    Allows interoperability and compatibility across different Spacial SF enclosure sizes and configurations.

3. Common Applications NSYSFC106

1. Industrial Automation Cabinets:
   Used in factory floor control systems, housing PLCs, drives, and other control components.

2. Electrical Distribution Panels:
   Forms part of the enclosure structure for main and sub-distribution boards in industrial and commercial buildings.

3. Data and Network Enclosures:
   Suitable for protecting sensitive electronic equipment in structured cabling and IT installations.

4. Energy and Utility Projects:
   Used in enclosure systems for power distribution, monitoring, and metering in infrastructure projects.

5. Transport and Infrastructure Control Systems:
   Supports the enclosure build for traffic signal systems, railway control panels, and tunnel automation.

6. Renewable Energy Control Cabinets:
   Integrated into modular enclosures for solar PV systems, wind farms, and hybrid energy systems.

7. Machine Control Stations:
   Forms part of the mechanical housing for custom machinery control panels and HMI interfaces.
