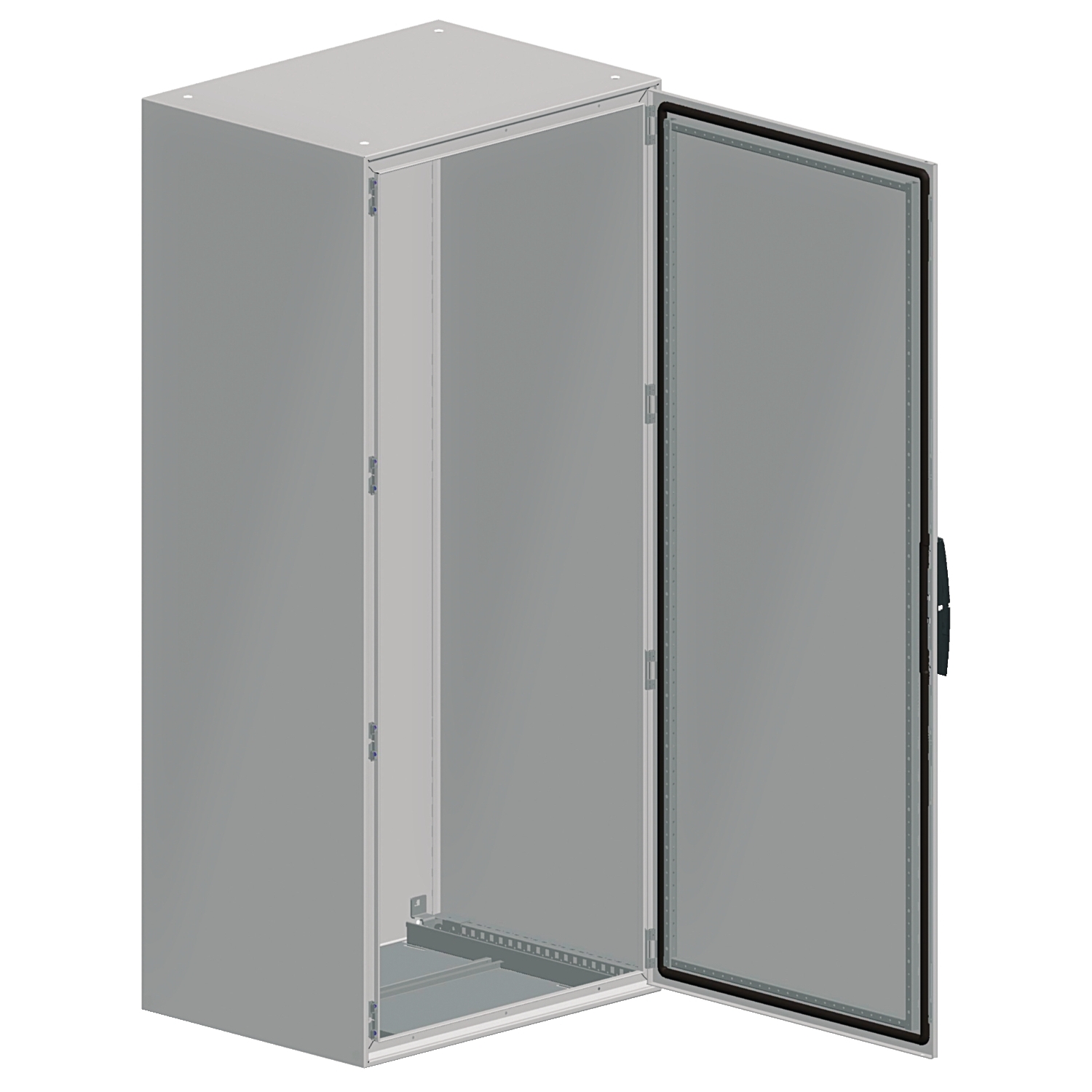

Schneider NSYSM18860 | PanelSeT SM compact enclosure without mounting plate – 1800x800x600 mm

Schneider NSYSM18860 | PanelSeT SM compact enclosure without mounting plate – 1800x800x600 mm

Technical Specifications:

• Model: NSYSM18860

• Series: PanelSeT SM

• Dimensions: 1800 mm (height) × 800 mm (width) × 600 mm (depth)

• Type: Compact enclosure without mounting plate

• Material: Galvanized steel

• Surface Finish: Epoxy-polyester powder coating, RAL 7035 light grey

• Protection Rating: IP55 (protection against dust and water jets)

• Impact Resistance: IK10 (resistant to mechanical shocks)

• Operating Temperature Range: -25°C to +60°C

• Standards Compliance: IEC 62208, IEC 60529, RoHS, REACH

• Approximate Weight: Around 85–95 kg (may vary depending on configuration)

Key Features:

• IP55 Protection: Ensures effective sealing against dust and low-pressure water jets from all directions

• Robust Construction: Made from high-quality galvanized steel for enhanced durability and mechanical resistance

• No Mounting Plate: Allows for customized internal configuration, ideal for specific project requirements

• Easy Integration: Compatible with a wide range of Schneider Electric mounting accessories

• Safety and Security: Lockable door with high-strength hinges and concealed hinges for tamper resistance

• Flexible Use: Suitable for wall-mounted or floor-standing installations depending on accessories used

• Standard Compliance: Certified according to international safety and environmental regulations

• Smooth Surface Finish: Provides chemical and abrasion resistance while maintaining a clean industrial look

Applications:

• Electrical Control Panels: Ideal for organizing and protecting control components in industrial facilities

• Automation Systems: Enclosure for PLCs, sensors, and I/O modules in automated processes

• Power Distribution: Used for housing distribution breakers and protective devices

• IT and Networking Equipment: Suitable for protecting communication hardware in harsh environments

• Renewable Energy Systems: Enclosure for control electronics in solar, wind, or hybrid energy projects

• Public Infrastructure: Used in transportation, water management, and utility sectors

• Industrial Machinery: Integrated into machine enclosures or placed alongside equipment as a standalone unit
