BVS1000I-GR | SE Easy UPS, 1000VA, Floor/Wall Mount, 230V, 4x CEE 7/3 Schuko outlets, AVR
| brands | Schneider Electric |
|---|---|
| Lead time | Usually in Stock |
| Product or component type | Uninterruptible power supply (UPS) |
| Range of product | Easy UPS 1Ph BVS Series |
| Topology | Line interactive |
| Quantity per set | Set of 1 |
| Reset | Automatic reset |
| Mounting support | Wall Floor |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| 1 | 30.505 cm |
| Package 1 Width | 16.51 cm |
| Package 1 Length | 9.246 cm |
| Package 1 Weight | 5.702 kg |
| SCC14 | 1.07313E+13 |
| REACh Regulation | REACh Declaration |
| REACh free of SVHC | Yes |
| EU RoHS Directive | Compliant EU RoHS Declaration |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation | China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope) |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 2 years |
| Type of installation | Indoor |
| Surge Energy | 156 J |
| Type of signal | Stepped approximation to a sinewave |
| Protection device type | Surge protection device (SPD) Miniature circuit breaker (MCB) Fuse |
| Input voltage | 230 V AC |
| Output voltage | 230 V |
| IP degree of protection | IP20 |
| Transfer time | 6 ms typical : 10 ms maximum |
| Network frequency | 45…65 Hz |
| Power range | 1000 VA 600 W |
| Electrical connection | Input: 1 inlet Schuko CEE 7/P Output: 4 outlet Schuko CEE 7 |
| Local signalling | Alarm, distinctive for low battery Alarm, continuous or intermittent tone for overload LED for battery status |
| Number of batteries | 1 |
| Charging time | 8 h |
| Battery capacity | 9.0 Ah |
| Net weight | 5.7 kg |

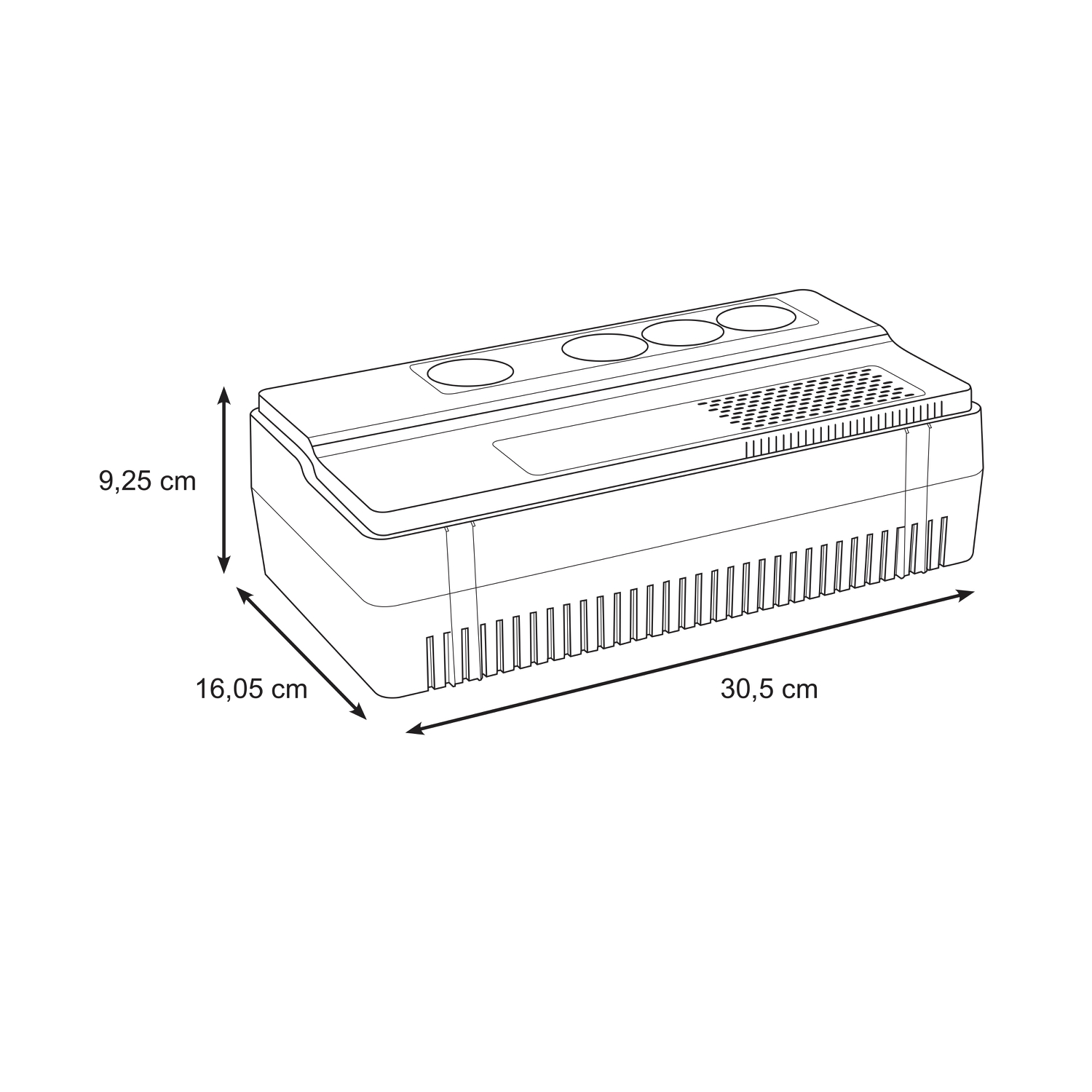

| Height | 92.5 mm |
| Width | 160.5 mm |
| Depth | 305 mm |
| Relative humidity | 0…90 %, non-condensing |
| Operating altitude | 0…6561 ft |
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Product certifications | CE |
| Battery type | Lead-acid battery |
| Battery voltage | 12 V |
| Battery life | 5 year(s) |
