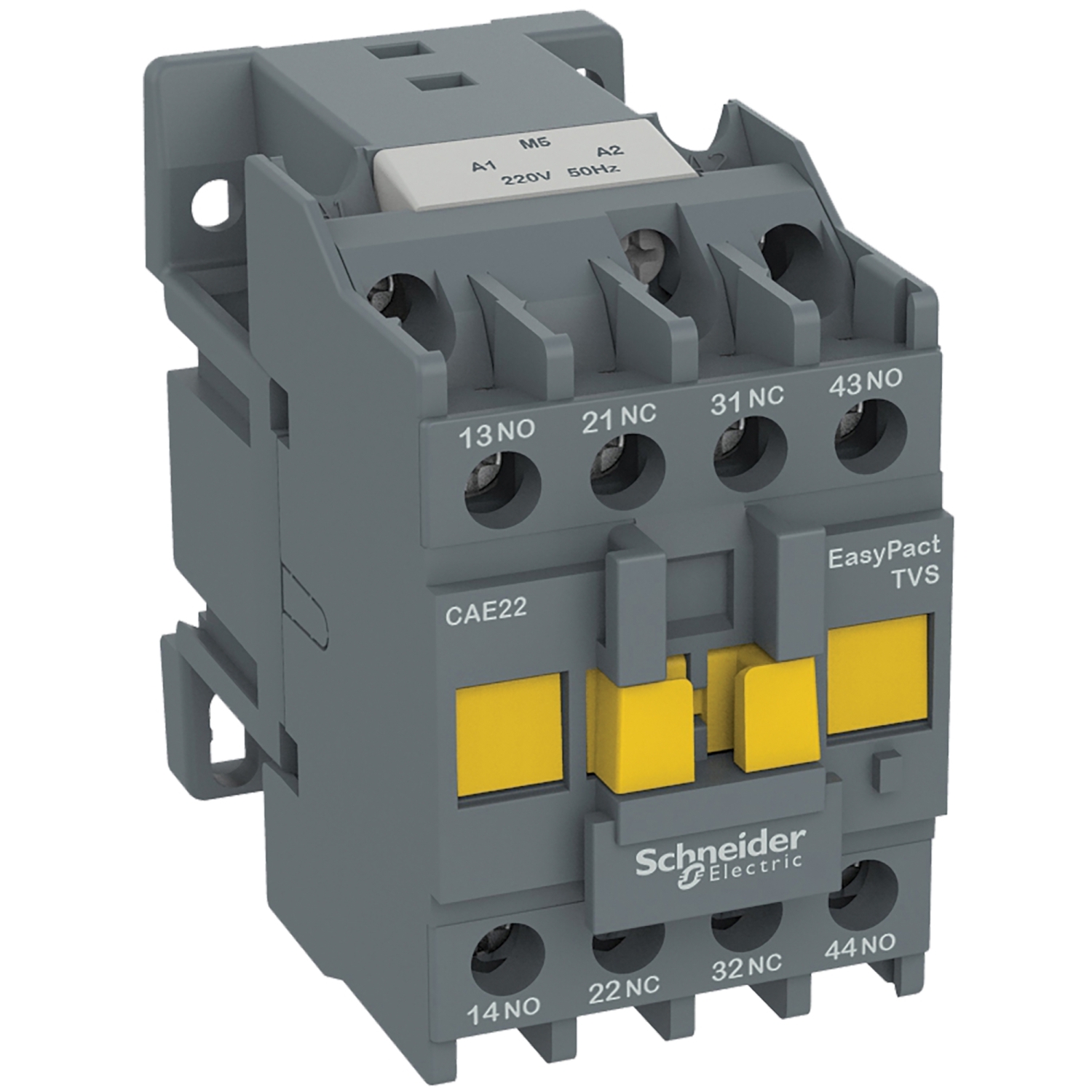

CAE22M5 | Control relay, EasyPact TVS, 2NO+2NC, <=690V, 220V AC 50Hz coil
Original price was: 1.493,06 EGP.806,25 EGPCurrent price is: 806,25 EGP.
CAE22M5 | Control relay, EasyPact TVS, 2NO+2NC, <=690V, 220V AC 50Hz coil
1 in stock
CAE22M5 | Control relay, EasyPact TVS, 2NO+2NC, <=690V, 220V AC 50Hz coil
| brands | Schneider Electric |
|---|---|
| Range | EasyPact |
| Product or component type | Control relay |
| Device short name | CAE |
| Product name | EasyPact TVS |
| contactor application | Control circuit |
| Inrush power in VA | 70 VA 50 Hz (at 20 °C) |
| Associated fuse rating | 10 A gG at 690 V conforming to IEC 60947-5-1 |
| Tightening torque | 1.2 N.m – on screw clamp terminals – with screwdriver Philips No 2 |
| Mechanical durability | 10 Mcycles |
| Mounting support | Rail Plate |
| Colour | Grey (RAL 7011) |
| Pole contact composition | 2 NO + 2 NC |
| Minimum switching current | 5 mA |
| Non-overlap time | 1.5 ms on energisation between NC and NO contact 1.5 ms on de-energisation between NC and NO contact |
| Insulation resistance | > 10 MOhm |
| Connections - terminals | Screw clamp terminals 1 1…2.5 mm² – cable stiffness: flexible without cable end Screw clamp terminals 2 1…2.5 mm² – cable stiffness: flexible without cable end Screw clamp terminals 1 1…2.5 m |
| minimum switching voltage | 17 V |
| Utilisation category | AC-14 AC-15 |
| [Ue] rated operational voltage | <= 690 V AC |
| Control circuit type | AC at 50 Hz |
| [Uc] control circuit voltage | 220 V AC 50 Hz |
| Irms rated making capacity | 140 A at 690 V AC conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-5-1 |
| Maximum operating rate | 180 cyc/mn |
| Net weight | 0.28 kg |
| Product certifications | GOST |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Height | 74 mm |
| Width | 45 mm |
| Depth | 80 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.2 cm |
| Package 1 Width | 7.5 cm |
| Package 1 Length | 8.7 cm |
| Package 1 Weight | 291.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 36 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 10.08 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 576 |
| Package 3 Height | 115.0 cm |
| Package 3 Width | 60.0 cm |
| Package 3 Length | 80.0 cm |
| Package 3 Weight | 179.32 kg |
| Sustainable offer status | Green Premium product |
| REACh Regulation | REACh Declaration |
| REACh free of SVHC | Yes |
| EU RoHS Directive | Compliant EU RoHS Declaration |
| Mercury free | Yes |
| China RoHS Regulation | China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope) |
| RoHS exemption information | Yes |
| Environmental Disclosure | Product Environmental Profile |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Toxic heavy metal free | Yes |
| Warranty | 18 months |
