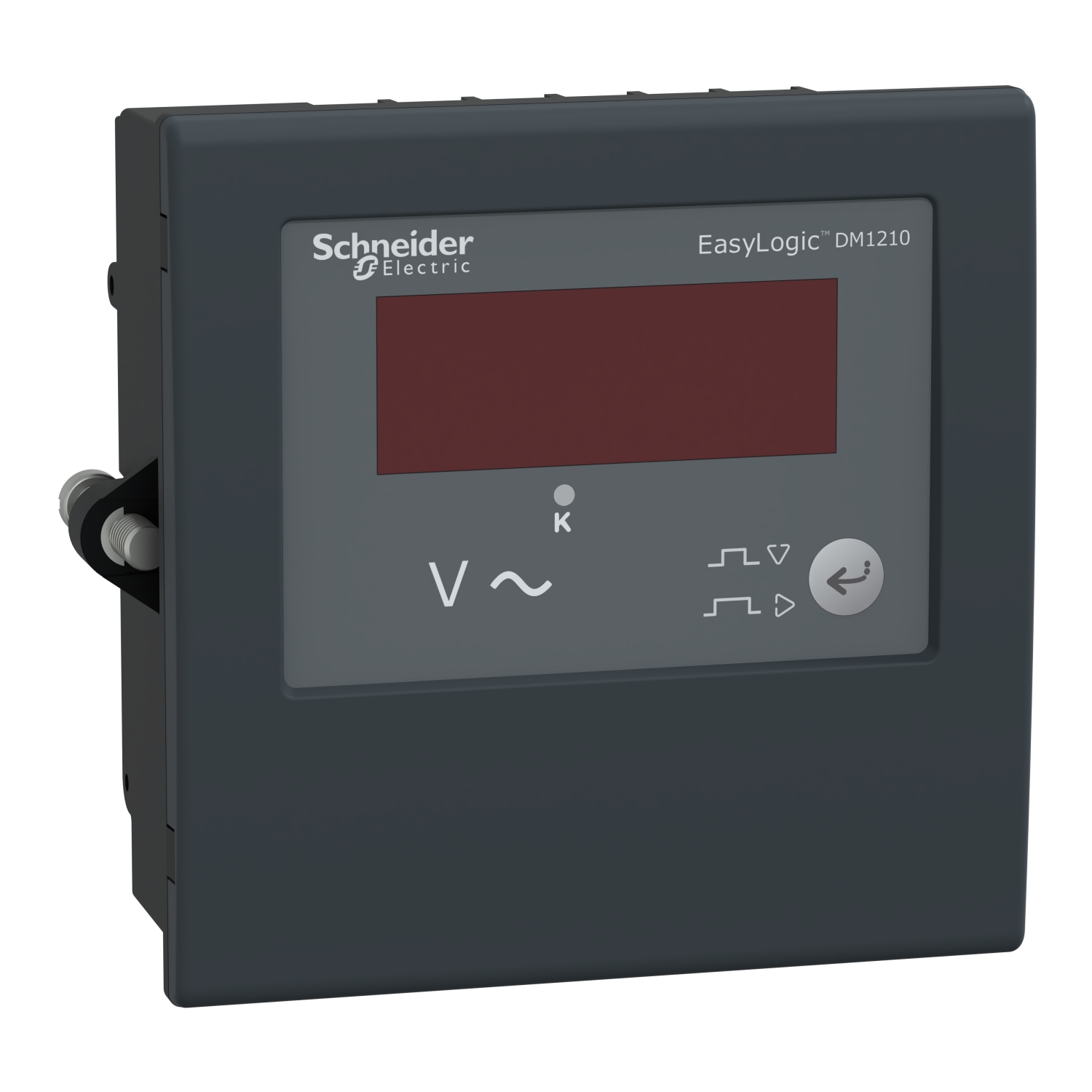

METSEDM1210 | EasyLogic – Digital Panel Meter DM1000 – Voltmeter – single phase

Description

brands	Schneider Electric
Product name	EasyLogic DM1000
Device short name	DM1210
Product or component type	Voltmeter
Poles	1P + N
Device application	Test laboratories Load control GenSet
Network frequency	60 Hz 50 Hz
Analogue input type	Voltagesingle phase
Display type	LED
Product certifications	CE conforming to IEC 61010-1
Poles description	1P + N
Type of installation	Indoor
Type of measurement	Voltage
Supply frequency	50/60 Hz +/- 5 Hz
Display digits	4
full scale display	999.9
Control type	Selector switch built-in
Accuracy	Voltage +/- 0.5 % of full scale for class 0.5
Device mounting	Flush
Mounting support	Panel
Measurement voltage	25…277 V AC phase to neutral, 50/60 Hz +/- 5 Hz 44…480 V AC phase to phase, 50/60 Hz +/- 5 Hz
Pollution degree	2
Colour	Black
Width	96 mm
Height	96 mm
Depth	38 mm
Cut-out dimensions	92 x 92 mm
Net weight	160 g
Standards	IEC 61326
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	8.6 cm
Package 1 Width	11.2 cm
Package 1 Length	12.4 cm
Package 1 Weight	250 g
Unit Type of Package 2	S03
Number of Units in Package 2	16
Package 2 Height	30 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	4713 kg
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Compliant EU RoHS Declaration
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information
RoHS exemption information	Yes
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
