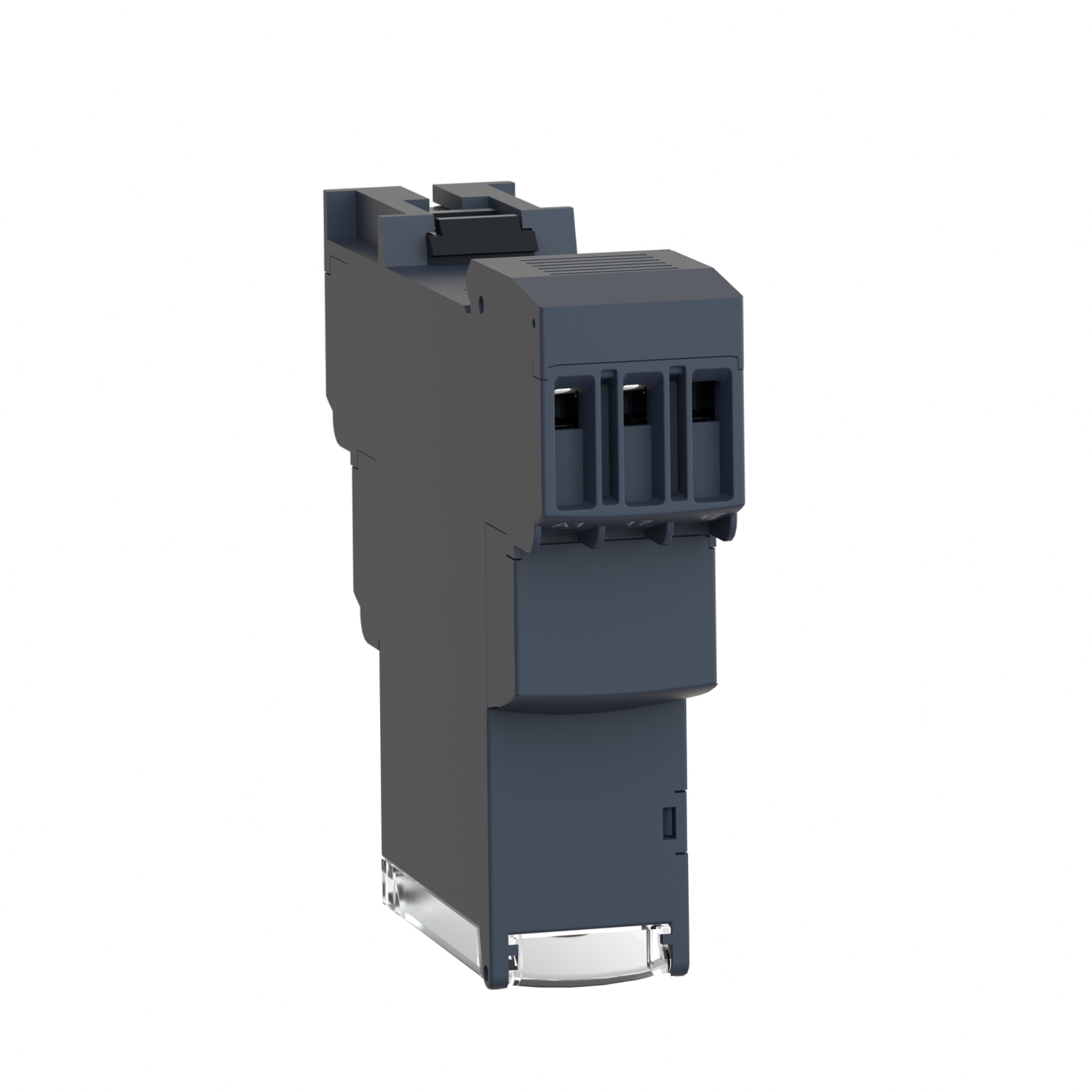

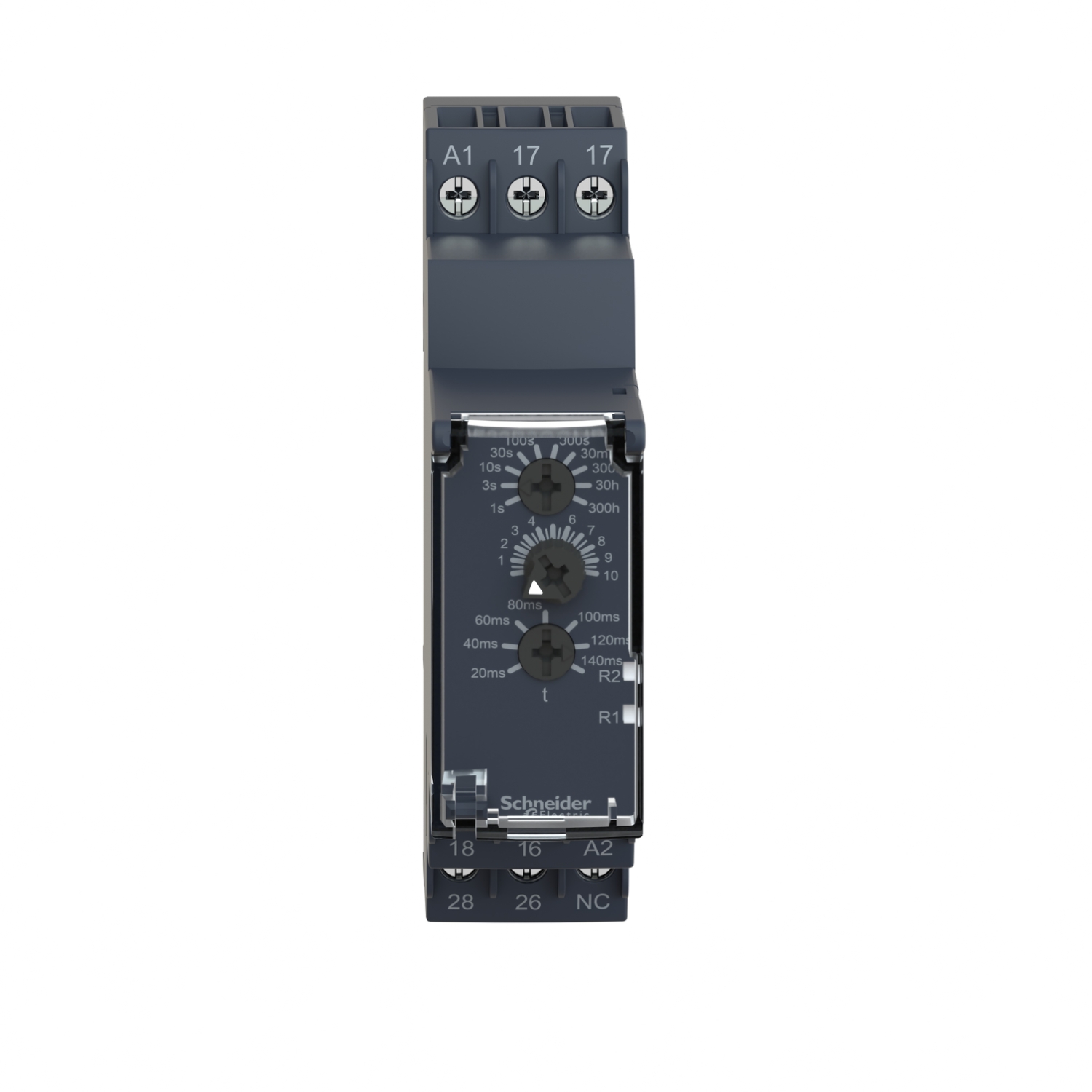

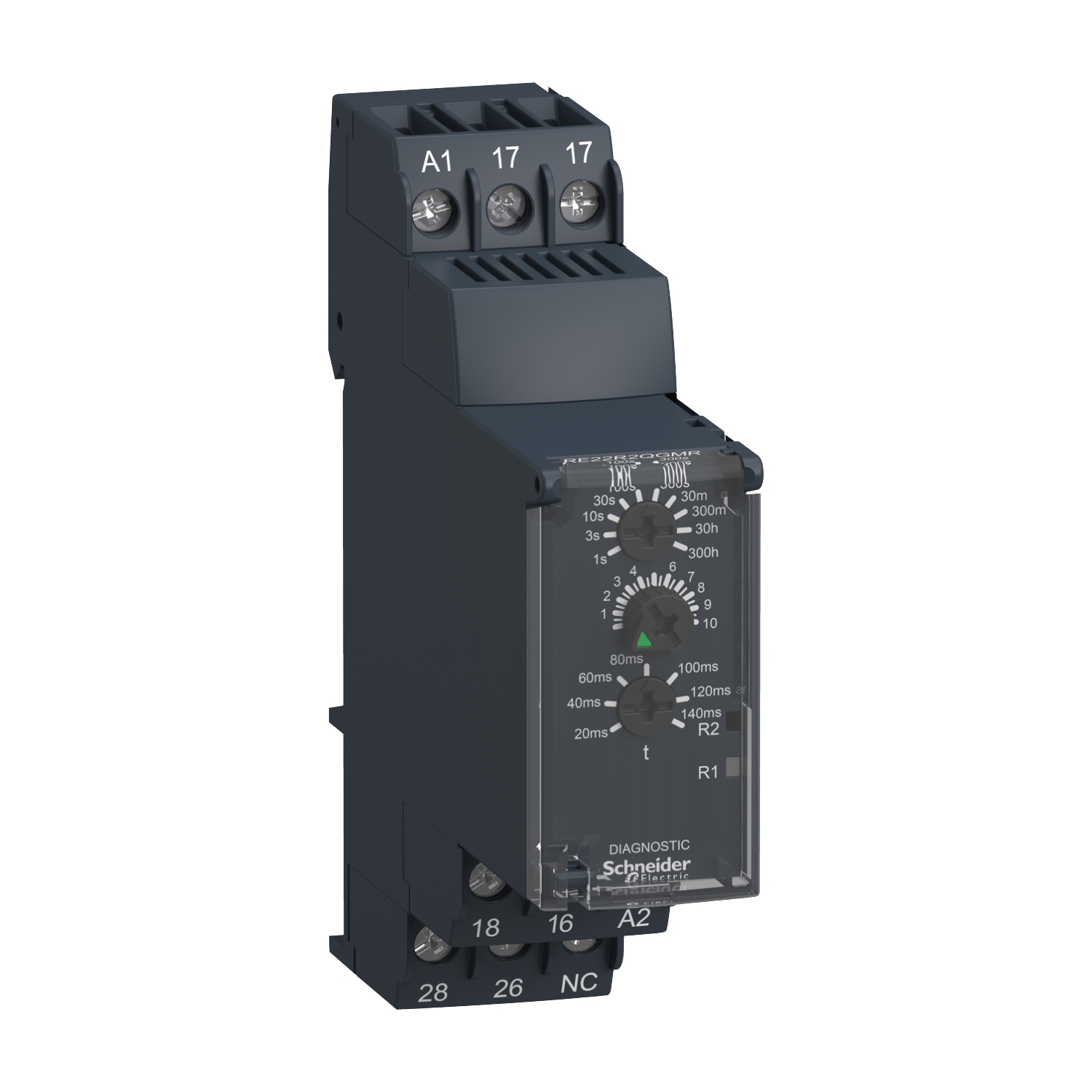

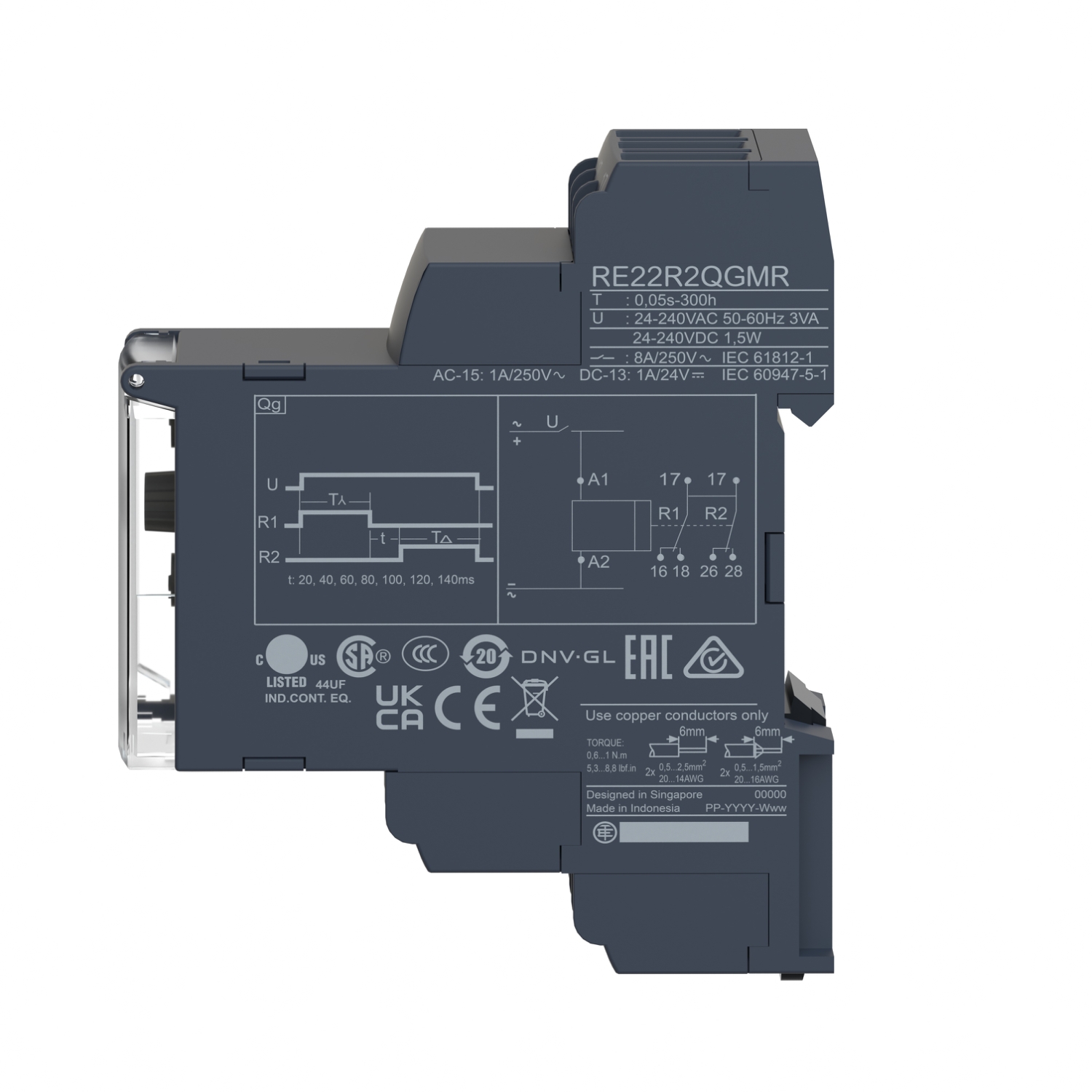

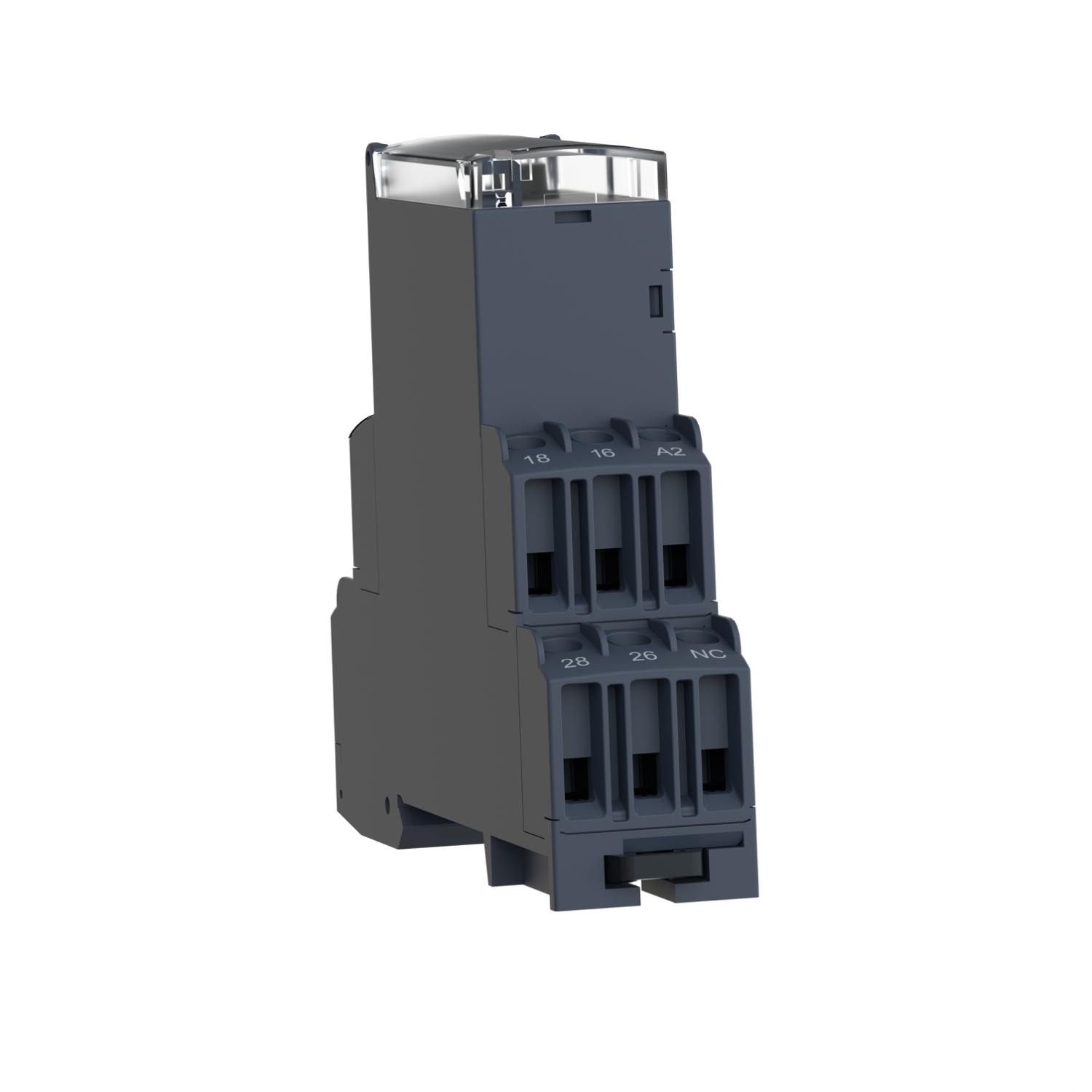

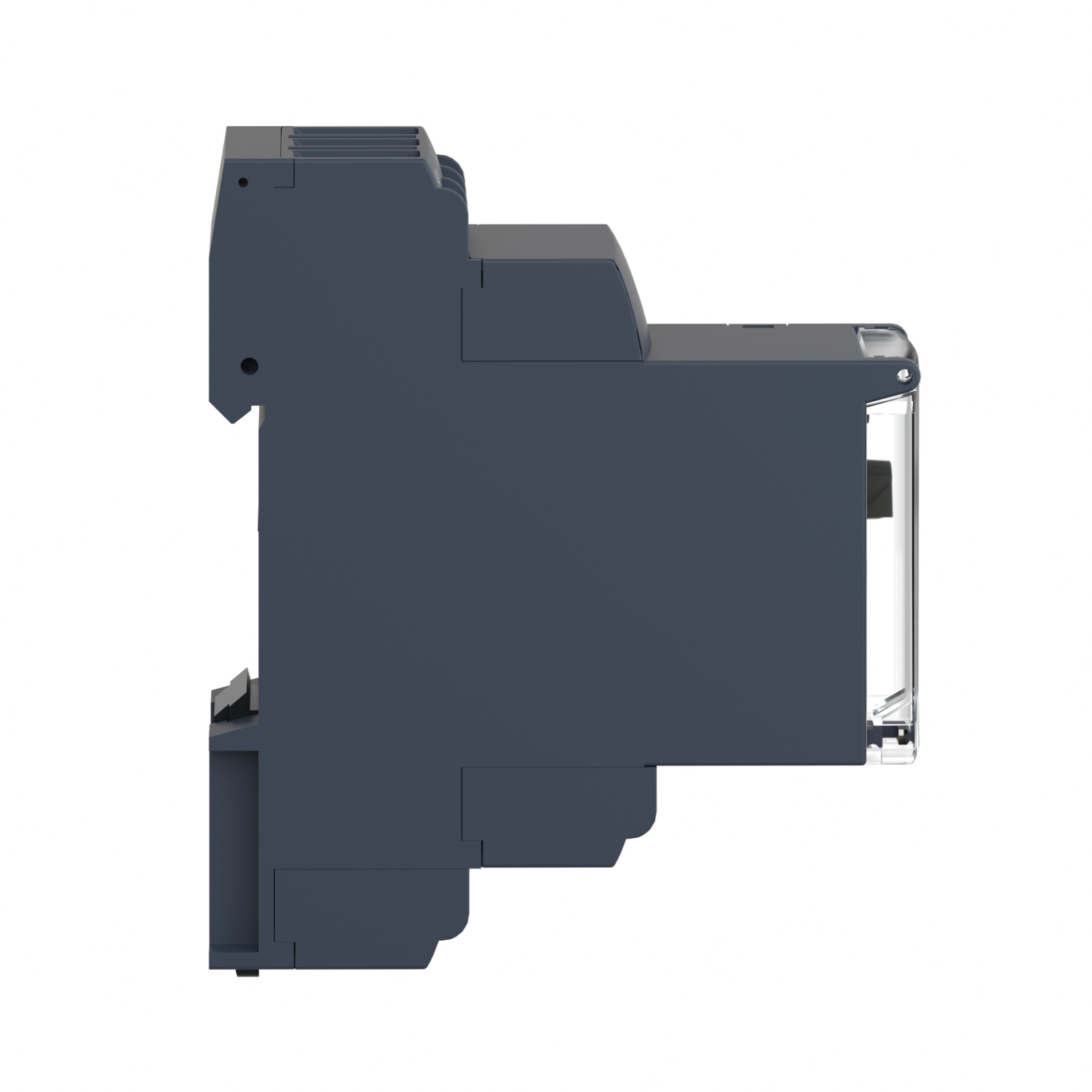

RE22R2QGMR | Modular timing relay, 8 A, 0.05 s…300 h, 2 CO, star delta, 24…240 V AC/DC
Original price was: 5.421,04 EGP.3.144,20 EGPCurrent price is: 3.144,20 EGP.
RE22R2QGMR | Modular timing relay, 8 A, 0.05 s…300 h, 2 CO, star delta, 24…240 V AC/DC
Out of stock
RE22R2QGMR | Modular timing relay, 8 A, 0.05 s…300 h, 2 CO, star delta, 24…240 V AC/DC
| brands | Schneider Electric |
|---|---|
| Range of product | Harmony Timer Relays |
| Product or component type | Single function relay |
| Device short name | RE22 |
| Time delay range | 3…30 s 0.05…1 s 30…300 s 30…300 min 0.3…3 s 1…10 s 3…30 h 10…100 s 30…300 h 3…30 min |
| Control type | Rotary knob Diagnostic button |
| supply voltage frequency | 50…60 Hz +/- 5 % |
| Housing material | Self-extinguishing |
| Mechanical durability | 10000000 cycles |
| Power on delay | 100 ms |
| Safety reliability data | MTTFd = 342.4 years B10d = 320000 |
| Width | 22.5 mm |
| Net weight | 0.105 kg |
| Release input voltage | <= 2.4 V |
| Switching capacity in VA | 2000 VA |
| Creepage distance | 4 kV/3 conforming to IEC 60664-1 |
| discrete output type | Relay |
| Nominal output current | 8:00 AM |
| Standards | UL 508 IEC 61812-1 |
| Directives | 2006/95/EC – low voltage directive 2004/108/EC – electromagnetic compatibility |
| Product certifications | CCC CSA RCM GL EAC CE UL |
| Overvoltage category | III conforming to IEC 60664-1 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.2 cm |
| Package 1 Width | 9.5 cm |
| Package 1 Length | 2.6 cm |
| Package 1 Weight | 106.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 4.695 kg |
| Unit Type of Package 3 | PAL |
| Number of Units in Package 3 | 640 |
| Package 3 Height | 50.0 cm |
| Package 3 Width | 60.0 cm |
| Package 3 Length | 80.0 cm |
| Package 3 Weight | 86.18 kg |
| Sustainable offer status | Green Premium product |
| REACh Regulation | REACh Declaration |
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration |
| Mercury free | Yes |
| China RoHS Regulation | China RoHS declaration |
| China RoHS declaration | Yes |
| Environmental Disclosure | Product Environmental Profile |
| Circularity Profile | End of Life Information |
