Description

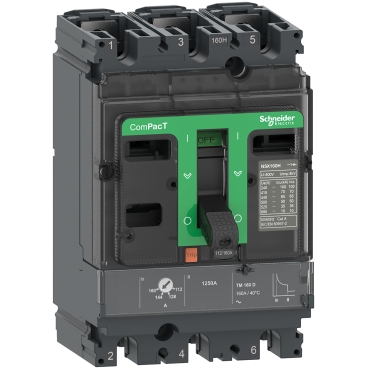

Schneider C10B3TM040 | Circuit breaker, ComPacT NSX100B, 25kA/415VAC, 3 poles, TMD trip unit 40A



Technical Specifications C10B3TM040

• Product Reference: C10B3TM040

• Product Range: ComPacT NSX100B

• Device Type: Molded Case Circuit Breaker (MCCB)

• Rated Operational Voltage: Up to 415 VAC

• Breaking Capacity: 25 kA at 415 VAC

• Number of Poles: 3 poles (3P)

• Rated Current: 40 Amperes

• Trip Unit Type: TMD (Thermal Magnetic)

• Mounting Type: Fixed

• Standards Compliance: IEC 60947-2

• Frequency: 50/60 Hz

• Control Mechanism: Manual handle

Key Features

• Thermal-Magnetic Protection: Integrated TMD unit protects against both prolonged overloads and sudden short circuits.

• Compact Design: Small footprint allows installation in space-constrained environments without sacrificing performance.

• High Fault Interruption: Capable of interrupting short-circuit currents up to 25 kA, ensuring system integrity during faults.

• Simple Operation: Manual switching with a clear trip position for easy monitoring and quick response.

• Modular Compatibility: Supports a variety of accessories including auxiliary switches, shunt trips, and undervoltage releases.

• Durability and Reliability: Engineered for long-term use under harsh electrical and environmental conditions.

Applications

• Industrial Control Panels: Protects motors, machinery, and automation systems from electrical faults.

• Commercial Distribution Boards: Used in retail, office, and hospitality sectors for feeder and sub-feeder protection.

• Infrastructure Projects: Suitable for utility panels and public service buildings requiring reliable low-voltage protection.

• Renewable Energy Systems: Provides safe protection for components in solar and wind installations.

• Data Centers and IT Facilities: Ensures stability and safety of critical loads by minimizing electrical interruptions.
