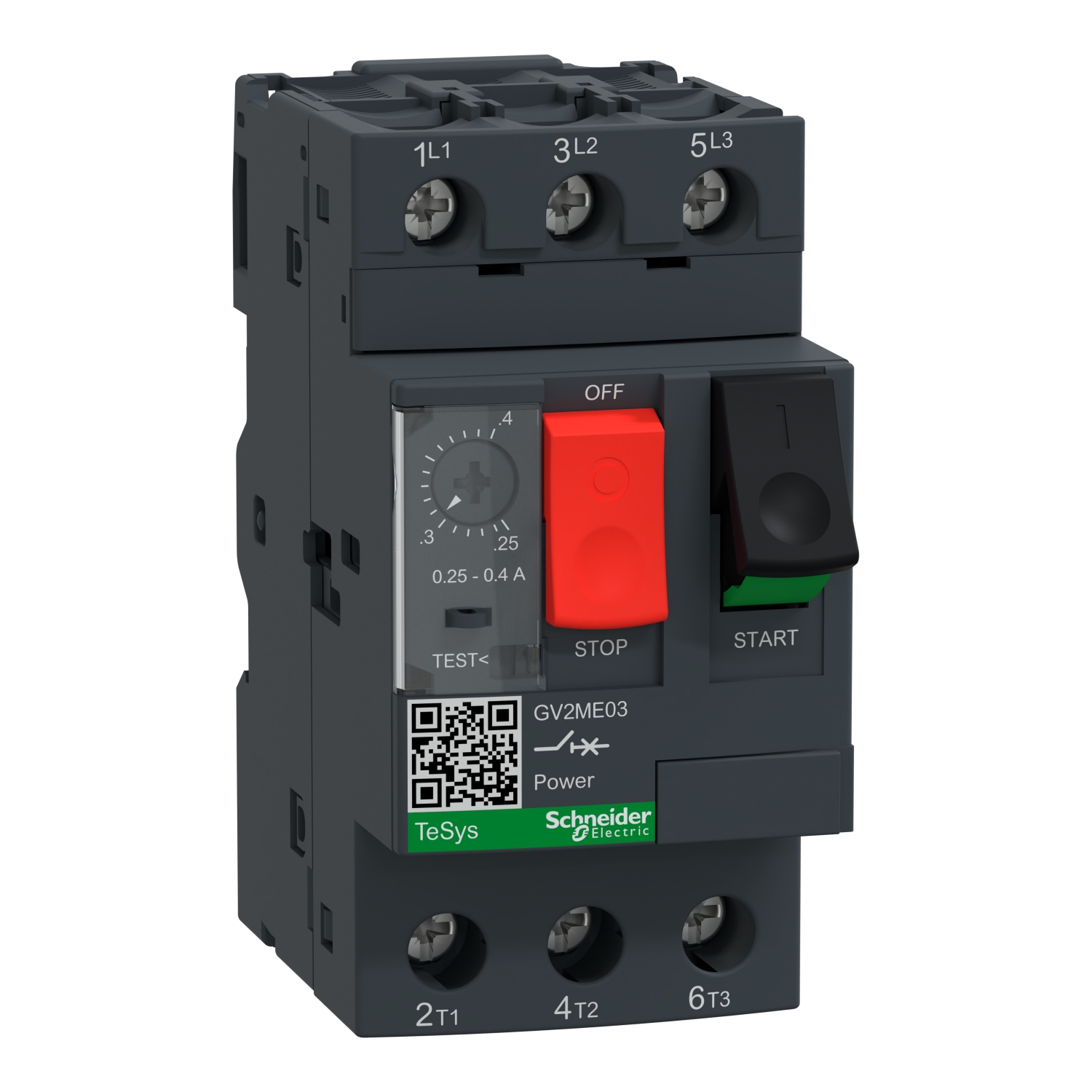

Schneider GV2ME03 | Motor circuit breaker, TeSys GV2, 3P, 0.25-0.4 A, thermal magnetic, screw clamp terminals

Schneider GV2ME03 | Motor circuit breaker, TeSys GV2, 3P, 0.25-0.4 A, thermal magnetic, screw clamp terminals



Technical Specifications

• Model: Schneider GV2ME03

• Product Series: TeSys GV2

• Number of Poles: 3P (Three-Pole)

• Current Rating: Adjustable 0.25-0.4 A

• Protection Type: Thermal-magnetic for overload and short-circuit protection

• Trip Mechanism: Manual reset with push-button operation

• Terminals: Screw clamp terminals for secure wiring connections

• Mounting: DIN rail or panel mounting

• Conformity: Complies with IEC 60947-2 & IEC 60947-4-1 standards

Key Features

1. Dual Protection Mechanism

The GV2ME03 features a thermal-magnetic trip unit, which provides:

• Thermal protection for overloads based on bimetallic elements.

• Magnetic protection for short circuits, ensuring fast disconnection in case of faults.

2. Compact and Robust Design

Designed for space-saving installations, this compact circuit breaker is built to withstand harsh industrial environments.

3. Adjustable Current Setting

With an adjustable range of 0.25-0.4 A, users can fine-tune protection levels according to motor requirements.

4. Reliable Screw Clamp Terminals

Equipped with screw clamp terminals, the GV2ME03 ensures secure and vibration-resistant connections for long-term reliability.

5. Easy Installation and Maintenance

• DIN rail or panel mounting options for flexible installation.

• Simple manual reset mechanism for easy operation.

Applications

• Industrial Automation: Protecting small motors in conveyor systems, pumps, and machine tools.

• HVAC Systems: Ensuring motor safety in fans, compressors, and air handling units.

• Water Treatment Plants: Used for protecting small water pumps and filtration system motors.

• Agricultural Equipment: Reliable motor protection in irrigation and automated feeding systems.

• CommercialBuildings: Motor protection in escalators, lifts, and ventilation systems.
