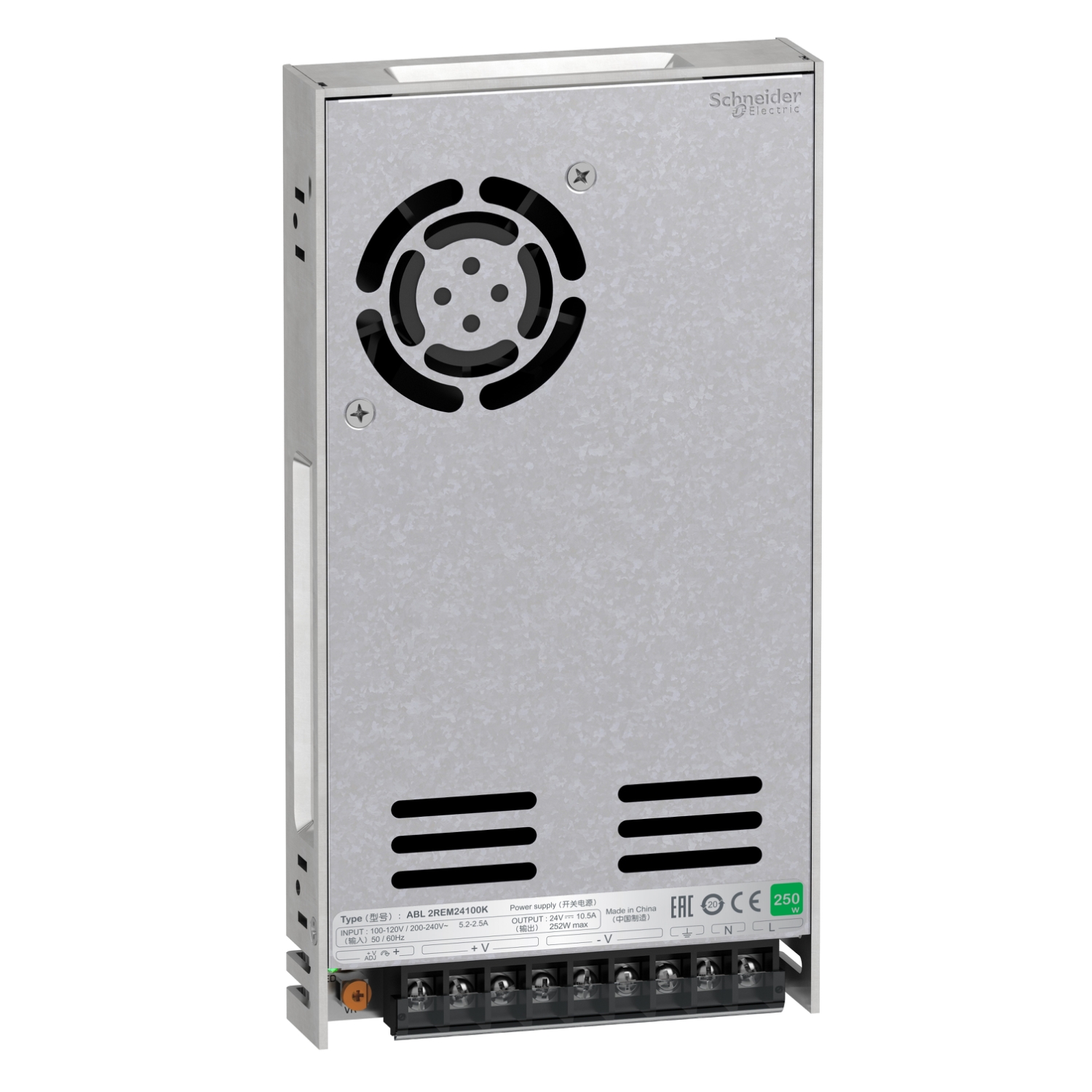

ABL2REM24100K | Single phase power supply, 100…240V input, 24V DC output, 252W, 10,5A

Description

brands	Schneider Electric
Range of product	Easy Modicon ABL2
Product or component type	Power supply
Power supply type	Regulated switch mode
Rated power in W	252 W
Main Input Voltage	100…120 V AC single phase 200…240 V
Power supply output current	10.5 A
Name of test	Electromagnetic hypersensitivity (EHS) conforming to EN 61000-6-2 level A
Mounting support	DIN rail with accessory DIN rail with accessory
Net weight	0.75 kg
Height	115 mm
Width	215 mm
Depth	30 mm
Network frequency	47…63 Hz
Input voltage limits	90…132 V 180…264 V
Inrush current	60 A at 100…120 V AC 60 A at 200…240 V AC
Cos phi	0.5
Efficiency	87%
Current consumption	2.5 A at 240 V
Input protection type	Integrated fuse (not interchangeable)
Output voltage limits	20.4…27.6 V
Line and load regulation	+/- 1 %
