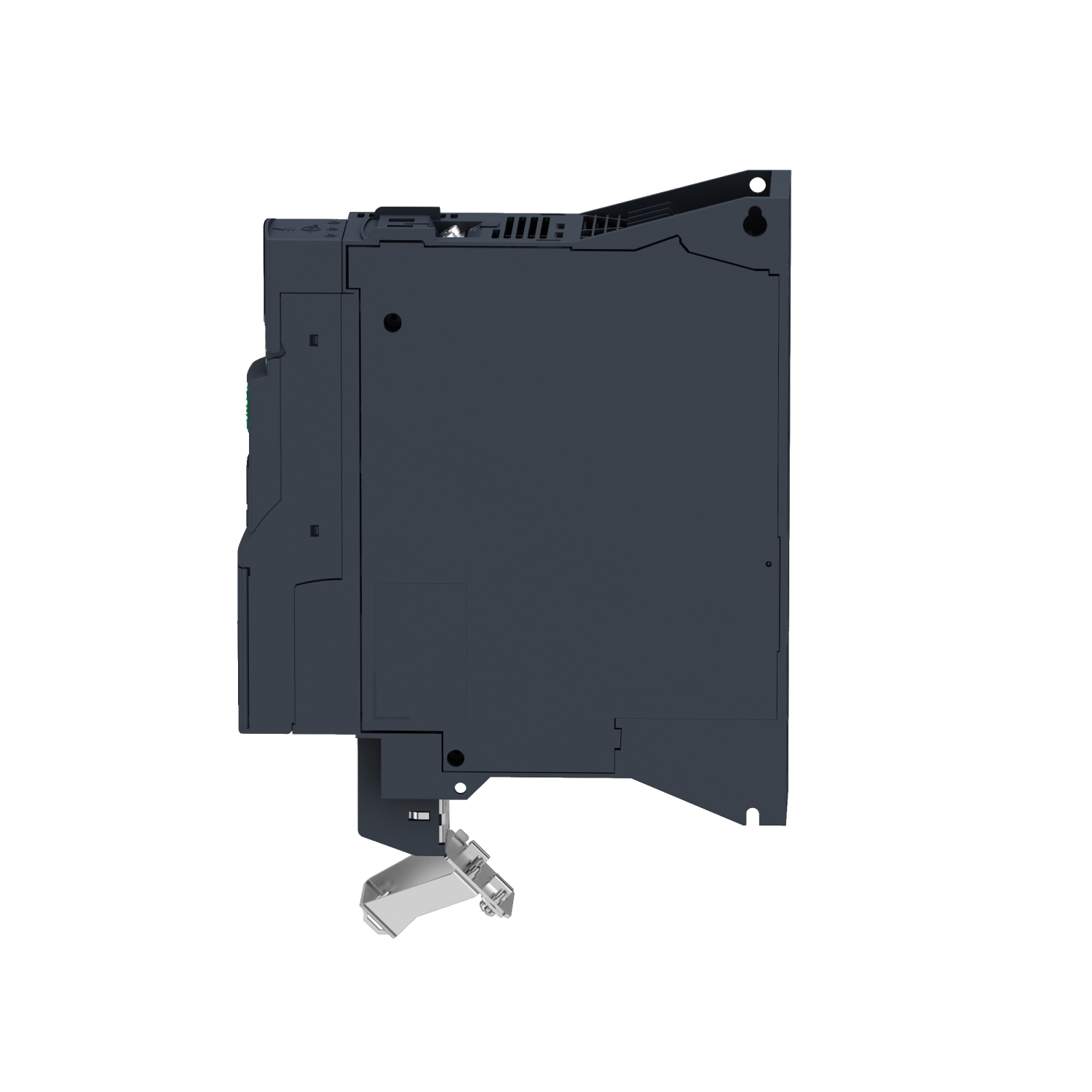

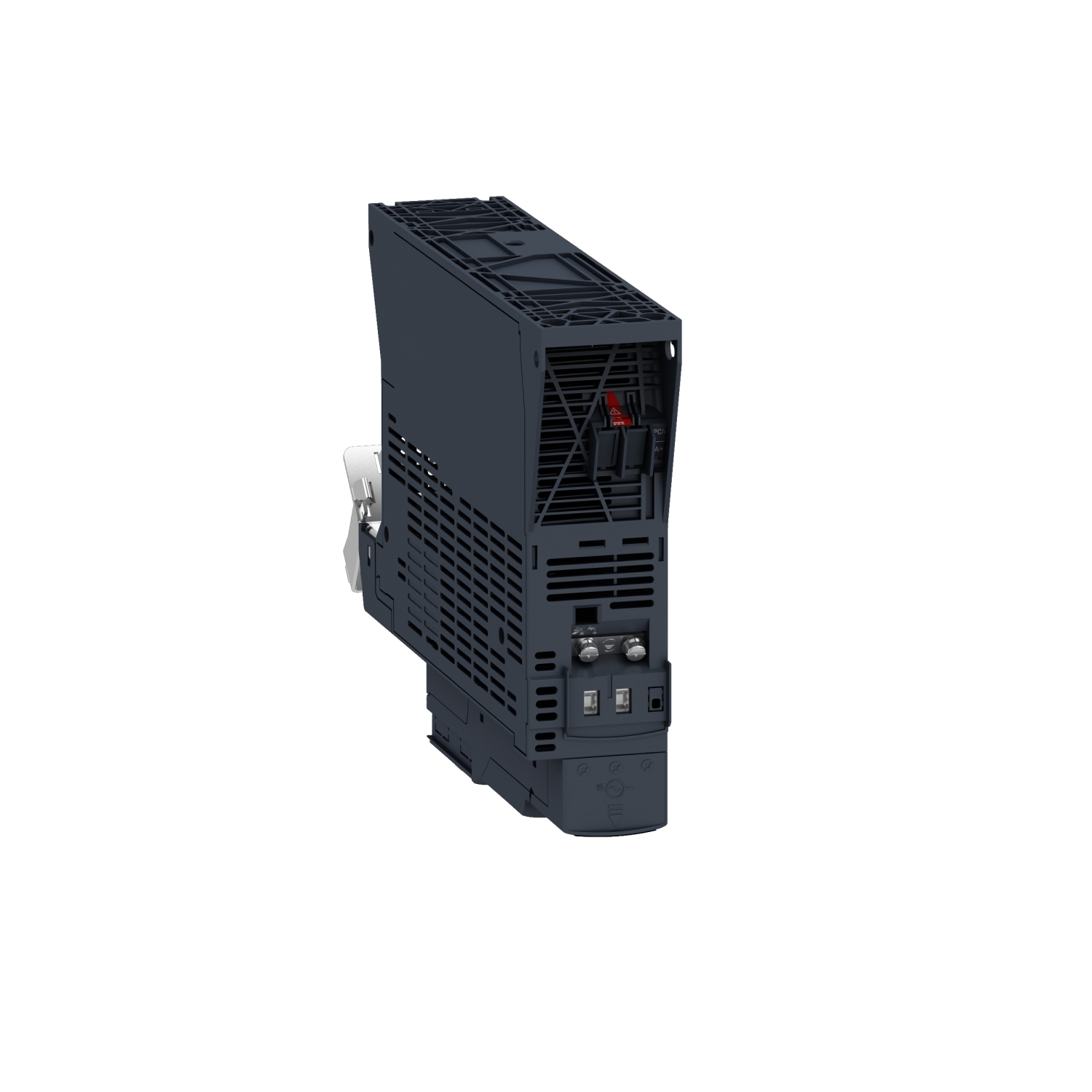

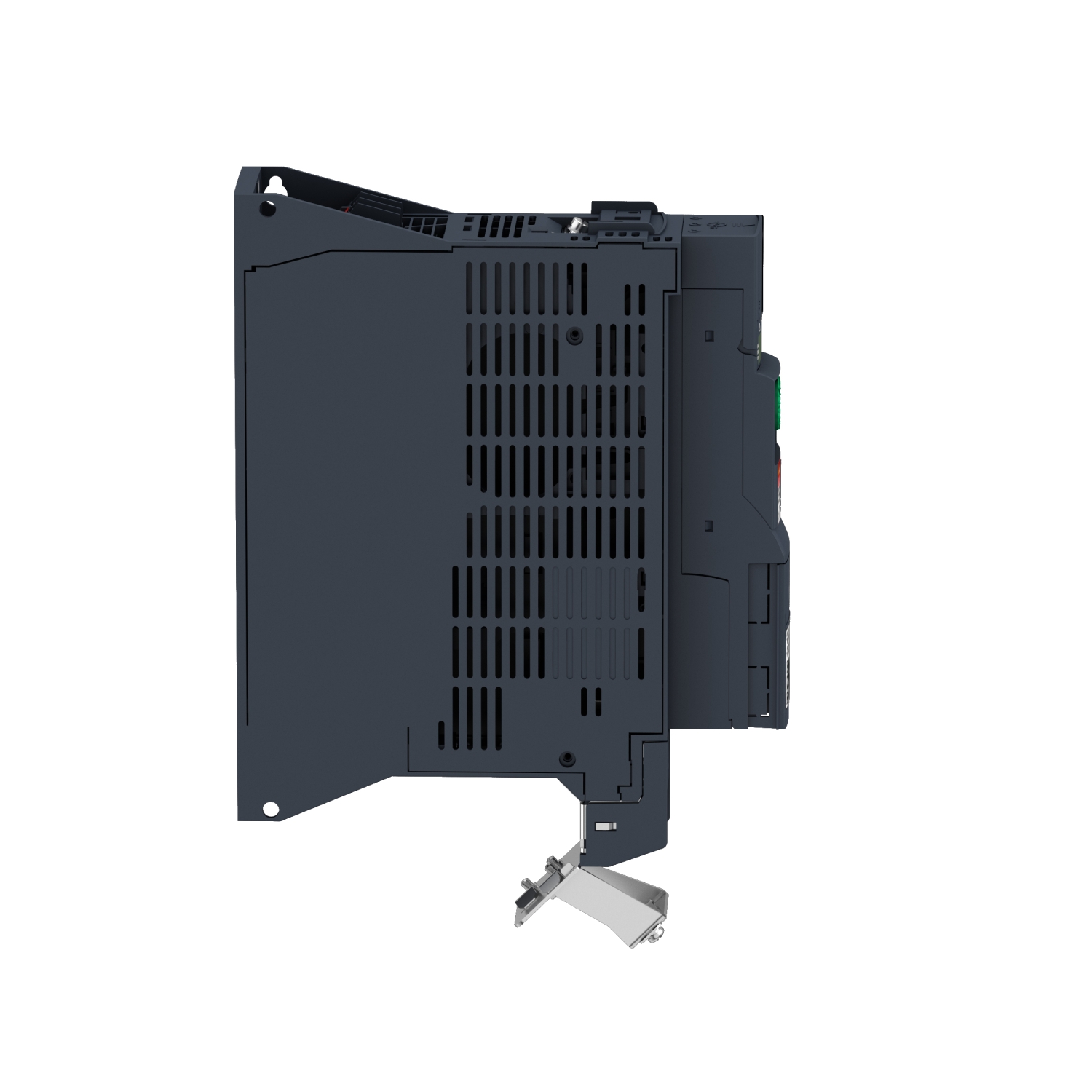

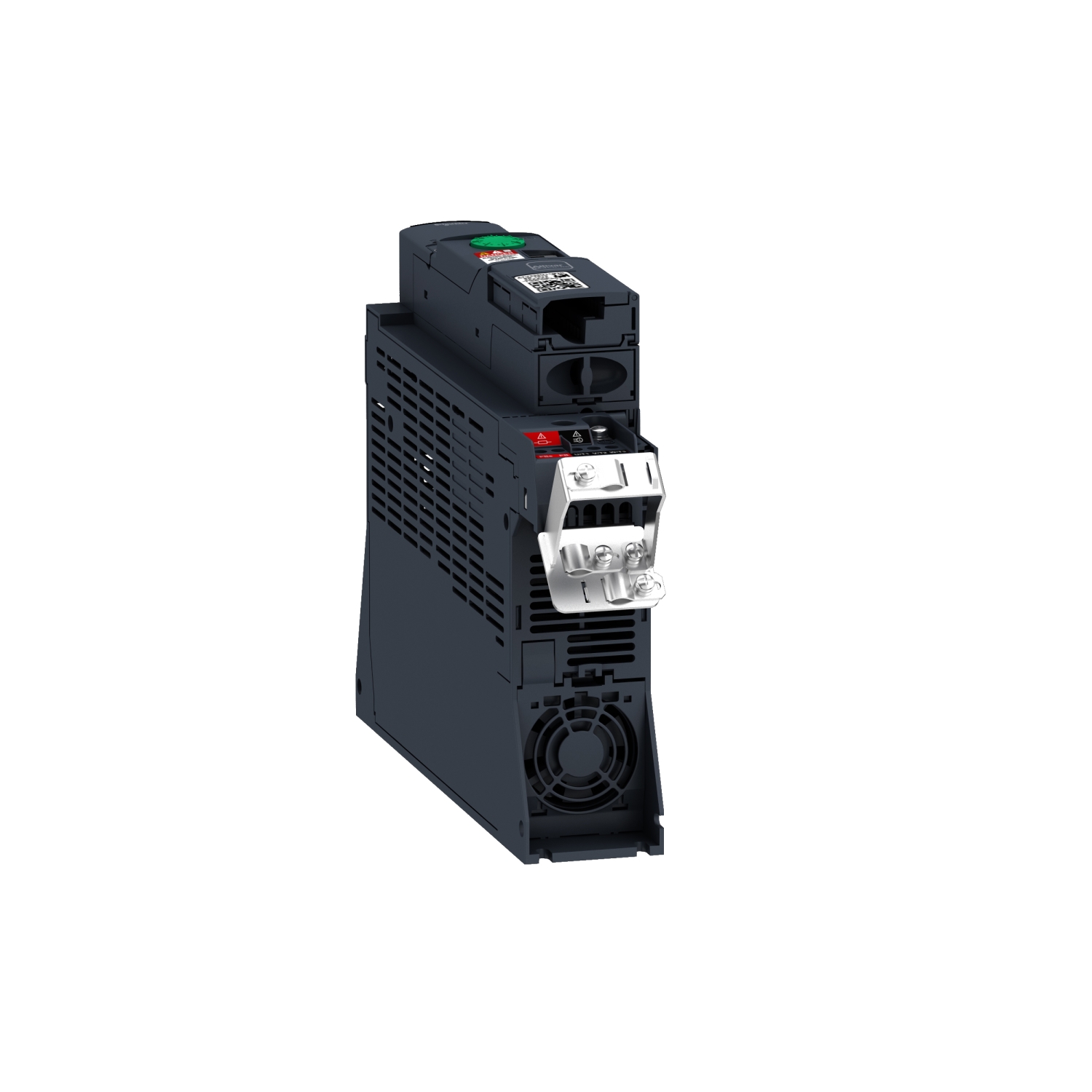

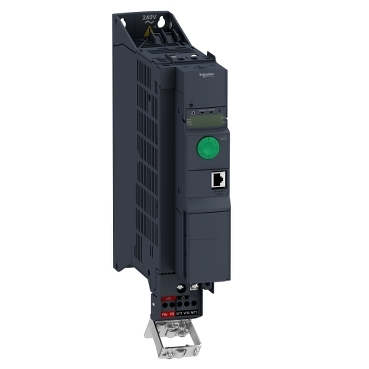

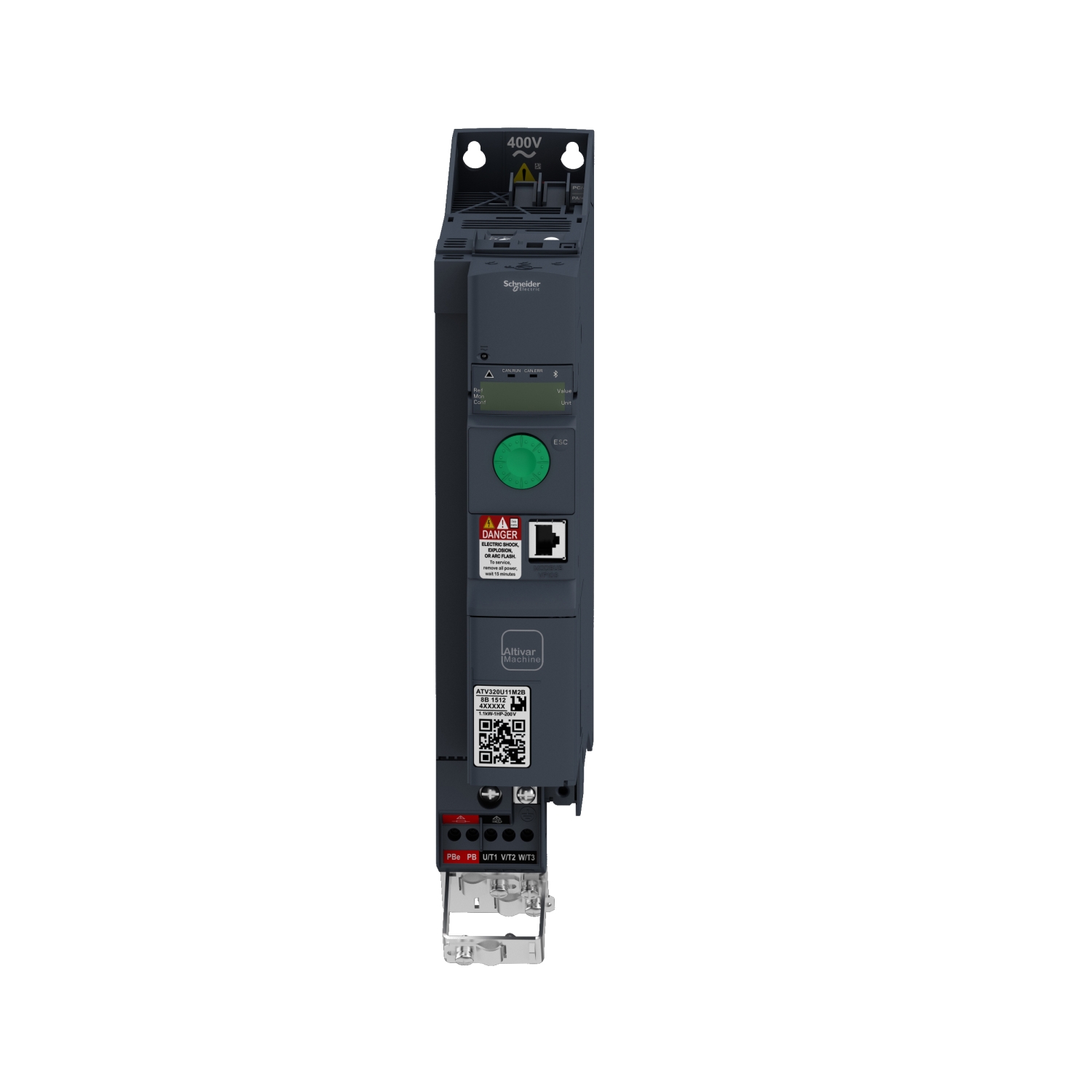

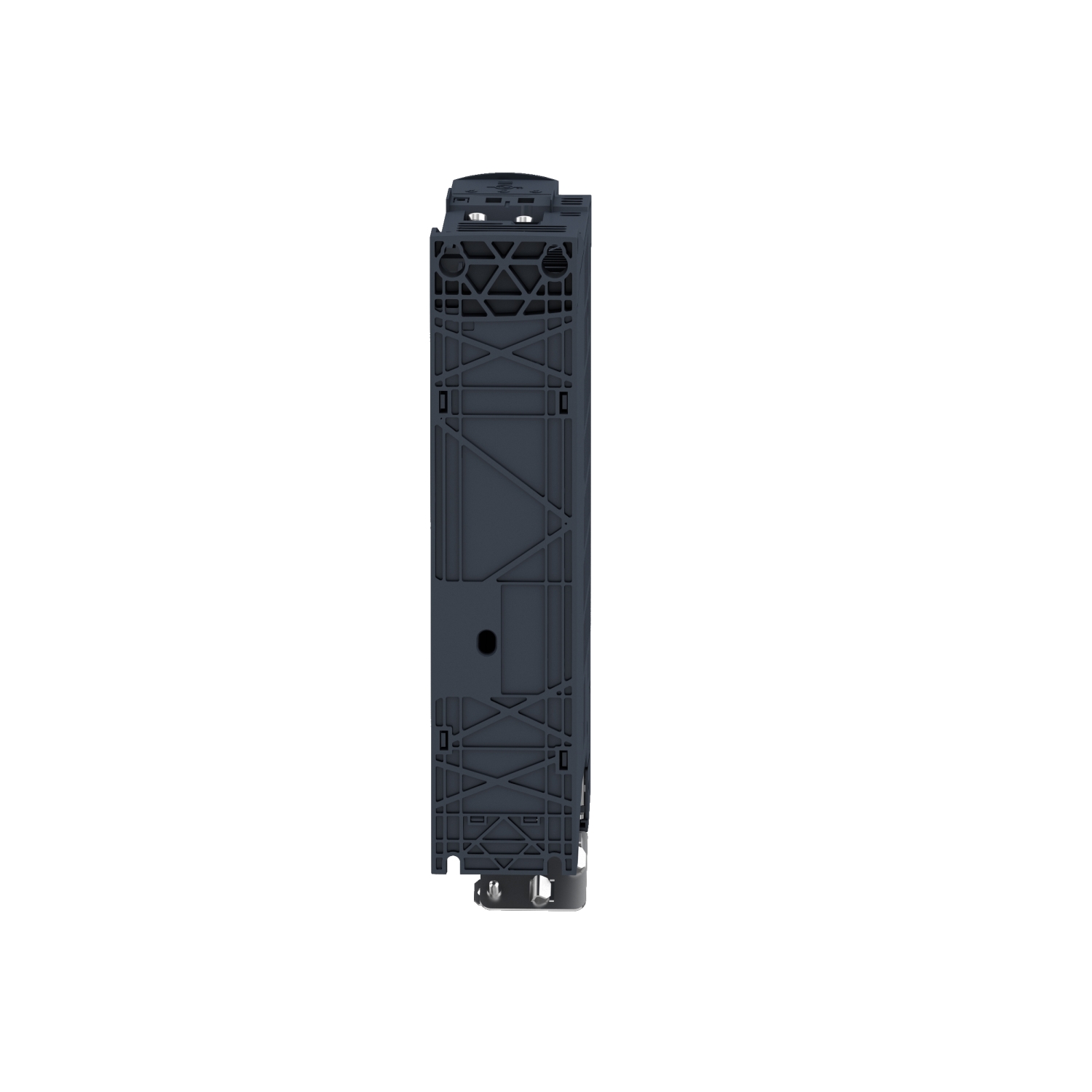

ATV320U22N4B | Variable speed drive, ATV320, 2.2 kW, 380…500 V, 3 phases, book
| brands | Schneider Electric |
|---|---|
| Range of product | Altivar Machine ATV320 |
| Product or component type | Variable speed drive |
| Product specific application | Complex machines |
| Variant | Standard version |
| Format of the drive | Book |
| Communication port protocol | Modbus serial CANopen |
| Option card | Communication module, CANopen Communication module, EtherCAT Communication module, Profibus DP V1 Communication module, PROFINET Communication module, Ethernet Powerlink Communication module, EtherNe |
| Nominal output current | 5.5 A |
| Motor power kW | 2.2 kW for heavy duty |
| EMC filter | Class C2 EMC filter integrated |
| Height | 325.0 mm |
| Width | 60 mm |
| Depth | 245.0 mm |
| Net weight | 3.0 kg |
| Mounting mode | Cabinet mount |
| Network frequency | 50/60 Hz |
| Discrete input number | 7 |
| Discrete input type | STO safe torque off, 24 V DC, impedance: 1.5 kOhm DI1…DI6 logic inputs, 24 V DC (30 V) DI5 programmable as pulse input: 0…30 kHz, 24 V DC (30 V) |
| discrete input logic | Positive logic (source) Negative logic (sink) |
| Discrete output number | 3 |
| discrete output type | Open collector DQ+ 0…1 kHz 30 V DC 100 mA Open collector DQ- 0…1 kHz 30 V DC 100 mA |
