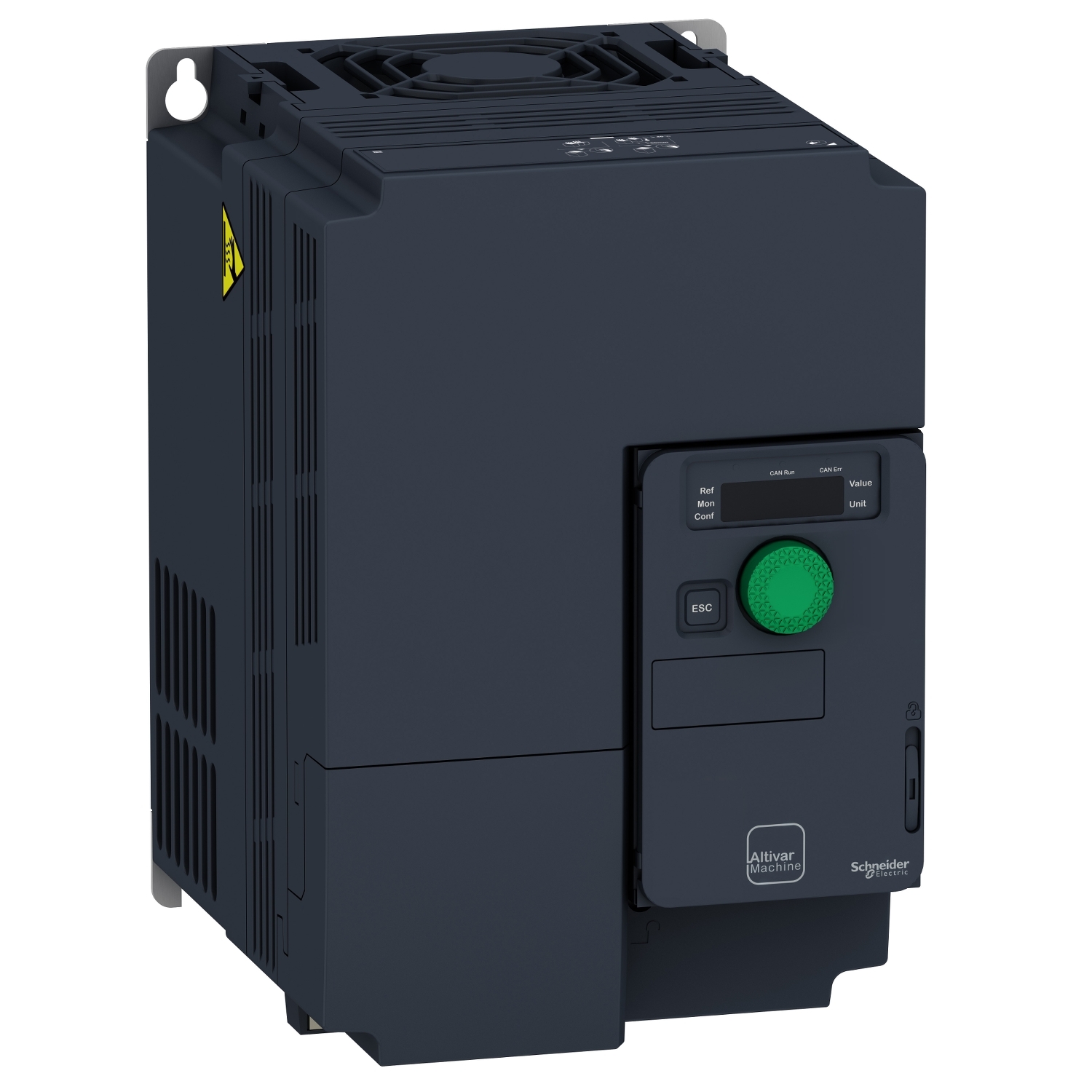

ATV320U55N4C | Variable speed drive, Altivar Machine ATV320, 5.5kW, 380 to 500V, 3 phases, compact
| brands | Schneider Electric |
|---|---|
| Range of product | Altivar Machine ATV320 |
| Product or component type | Variable speed drive |
| Product specific application | Complex machines |
| Variant | Standard version |
| Format of the drive | Compact |
| Communication port protocol | Modbus serial CANopen |
| Option card | Communication module, CANopen Communication module, EtherCAT Communication module, Profibus DP V1 Communication module, PROFINET Communication module, Ethernet Powerlink Communication module, EtherNe |
| Nominal output current | 14.3 A |
| Motor power kW | 5.5 kW for heavy duty |
| EMC filter | Integrated |
| Height | 232.0 mm |
| Width | 150 mm |
| Depth | 178.0 mm |
| Net weight | 3.5 kg |
| Mounting mode | Wall mount |
| Network frequency | 50/60 Hz |
| Discrete input number | 7 |
| Discrete input type | STO safe torque off, 24 V DC, impedance: 1.5 kOhm DI1…DI6 logic inputs, 24 V DC (30 V) DI5 programmable as pulse input: 0…30 kHz, 24 V DC (30 V) |
| discrete input logic | Positive logic (source) Negative logic (sink) |
| Discrete output number | 3 |
| discrete output type | Open collector DQ+ 0…1 kHz 30 V DC 100 mA Open collector DQ- 0…1 kHz 30 V DC 100 mA |
