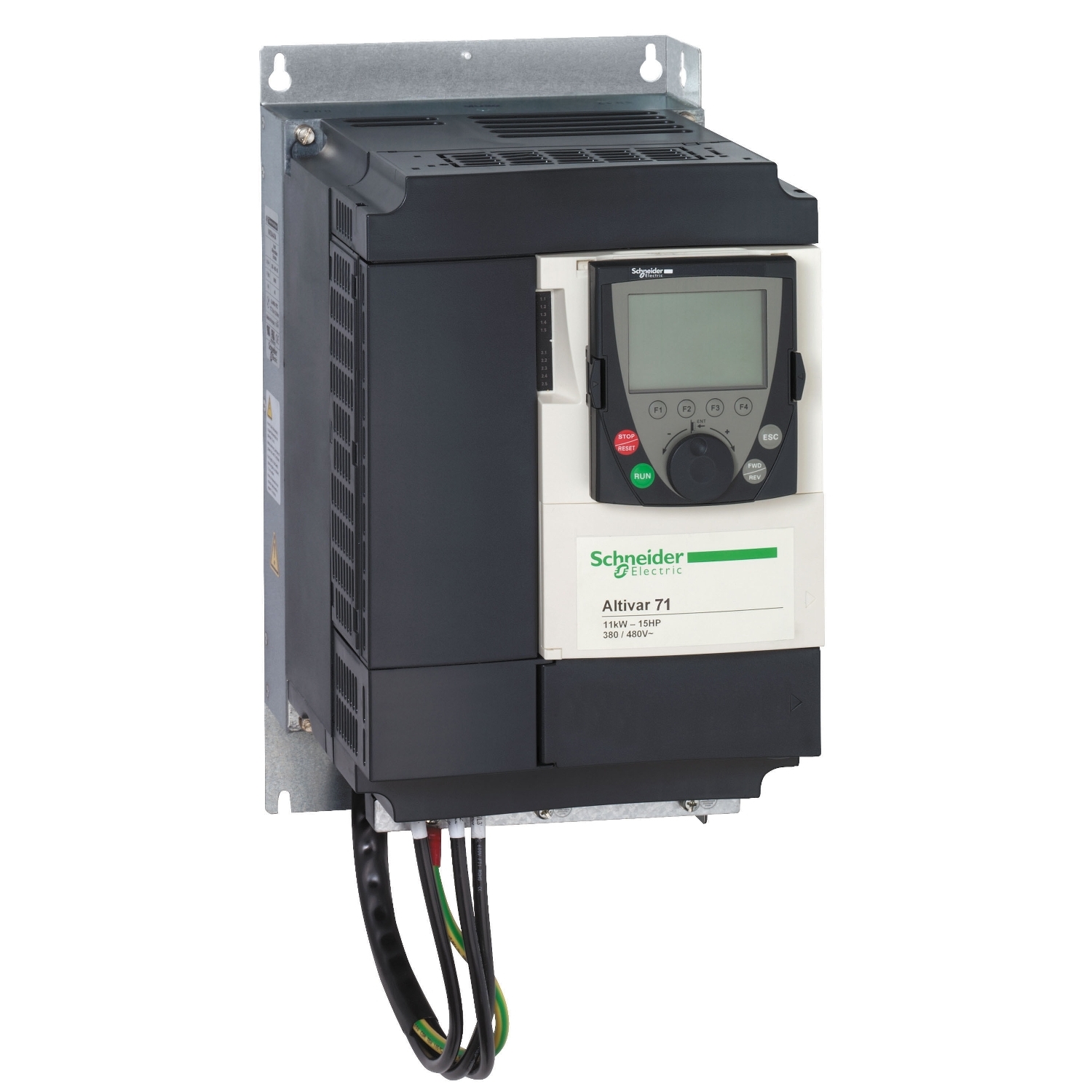

ATV71LD17N4Z | Variable speed drive Altivar Lift, 7.5 kW 10Hp, 380…480 V three-phase, EMC filter, with heat sink

Description

brands	Schneider Electric
Range of product	Altivar Lift
Product or component type	Variable speed drive
Device short name	ATV71
Product destination	Asynchronous motors Synchronous motors
Product specific application	Lift
Supply frequency	50…60 Hz – 5…5 %
Network number of phases	3 phases
Motor power hp	10 hp, 3 phases at 380…480 V
Variant	With integrated 7-segment display terminal
EMC filter	Integrated
Tightening torque	3 N.m, 26.5 lb.in (L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB) 0.6 N.m (AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1…LI6, PWR)
Protection type	Overheating protection: drive Thermal protection: drive Short-circuit between motor phases: drive Input phase breaks: drive Overcurrent between output phases and earth: drive Overvoltages on the DC b
Discrete input number	7
Discrete output number	2
Communication port protocol	CANopen Modbus
Nominal output current	17.6 A at 4 kHz 380 V 3 phases 7.5 kW / 10 hp 14 A at 4 kHz 460 V 3 phases 7.5 kW / 10 hp
Maximum transient current	23.9 A for 2 s 3 phases / 7.5 kW / 10 hp
Speed drive output frequency	0…599 Hz
Speed range	1…100 for asynchronous motor in open-loop mode, without speed feedback 1…50 for synchronous motor in open-loop mode, without speed feedback 1…1000 for asynchronous motor in closed-loop mode wit
Torque accuracy	+/- 5 % in closed-loop mode with encoder feedback +/- 15 % in open-loop mode, without speed feedback
Braking torque	30 % without braking resistor <= 150 % with braking or hoist resistor
