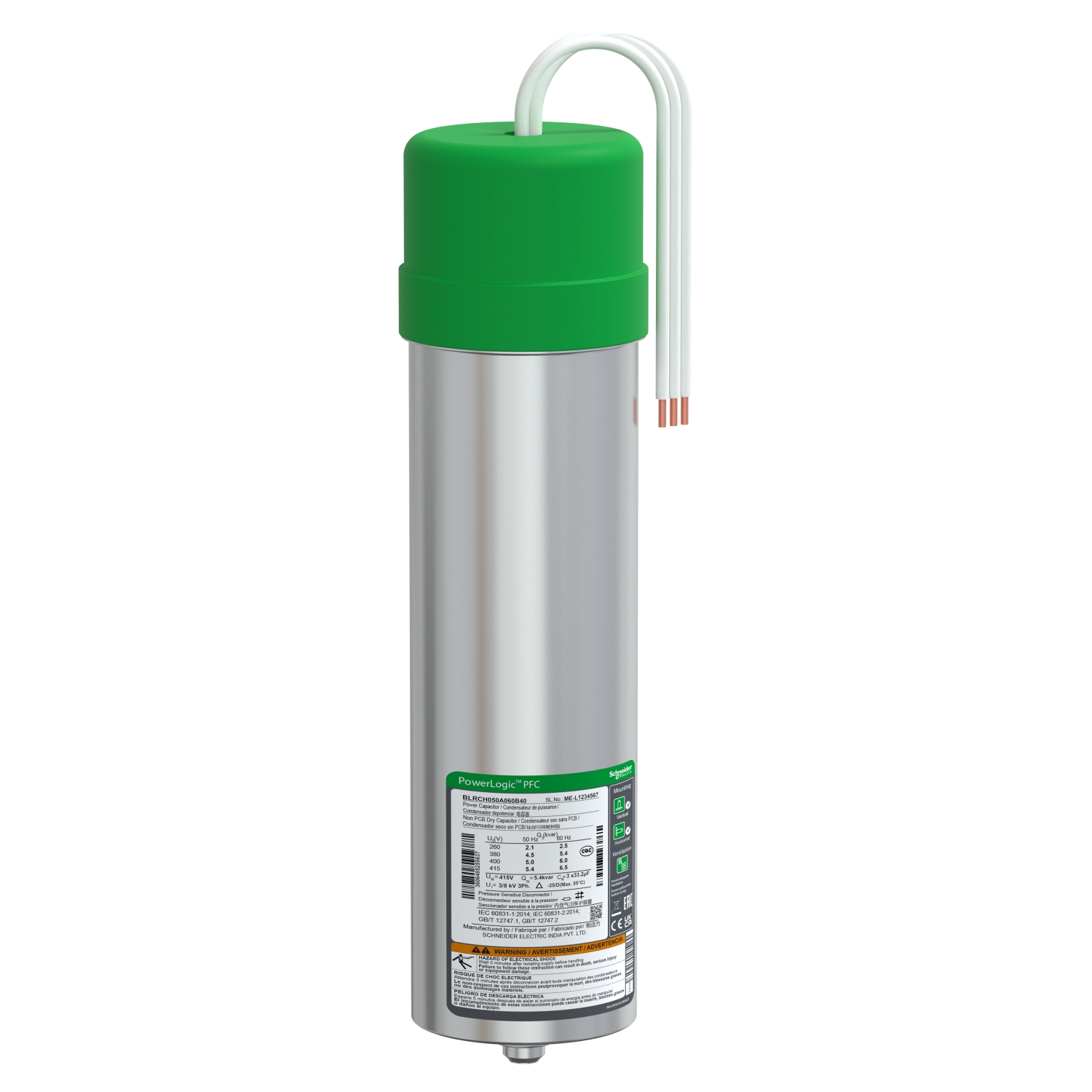

BLRCH050A060B40 | VarPlus Can HDuty Capacitor – 5/6 kvar – 400 V – 50/60Hz
| brands | Schneider Electric |
|---|---|
| Product or component type | Heavy duty capacitor |
| Series name | HDuty |
| Network harmonic content | <= 20 % |
| Electrical parameters | 4.5 kvar 380 V 50 Hz 5.4 kvar 380 V 60 Hz 5 kvar 400 V 50 Hz 6 kvar 400 V 60 Hz 5.4 kvar 415 V 50 Hz 6.5 kvar 415 V 60 Hz |
| Maximum permissible voltage | 1.1 x Un (8 hours over 24 hours) |
| Rated voltage | 380…415 V AC 50/60 Hz |
| Range of product | PowerLogic |
| Network frequency | 50/60 Hz |
| Type of installation | Indoor installation |
| dielectric losses | < 0.2 W/kvar |
| Power losses | < 0.5 W/kVAr |
| capacitance tolerance | – 5 % to 10 % |
| Voltage test | 2.15 x Un AC between terminals for 10 s = 660 V – 6 kV AC between terminal and container for 10 s |
| Inrush current | 250 x In |
| Service life in hours | 130000 h |
| Dielectric material | Metallized polypropylene film with Zn/Al alloy, special resistivity & profile, special edge (wave cut) |
| Impregnation material | Non-PCB dry PUR resin Biodegradable |
| Connections - terminals | Double Faston terminal |
| Diameter | 63 mm |
| Operating altitude | 2000 m |
| Height | 245 mm |
| Net weight | 0.9 kg |
| Standards | IEC 60831-1 IEC 60831-2 |
| IP degree of protection | IP20 |
| Temperature class | D |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.000 cm |
| Package 1 Width | 7.000 cm |
| Package 1 Length | 25.000 cm |
| Package 1 Weight | 1.066 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 15.442 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 60 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 60.000 cm |
| Package 3 Weight | 63.768 kg |
| Sustainable offer status | Green Premium product |
| REACh Regulation | REACh Declaration |
| EU RoHS Directive | Compliant EU RoHS Declaration |
| Mercury free | Yes |
| China RoHS Regulation | China RoHS declaration Product out of China RoHS scope. Substance declaration for your information |
| RoHS exemption information | Yes |
| REACh free of SVHC | Yes |
| Toxic heavy metal free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 18 months |
