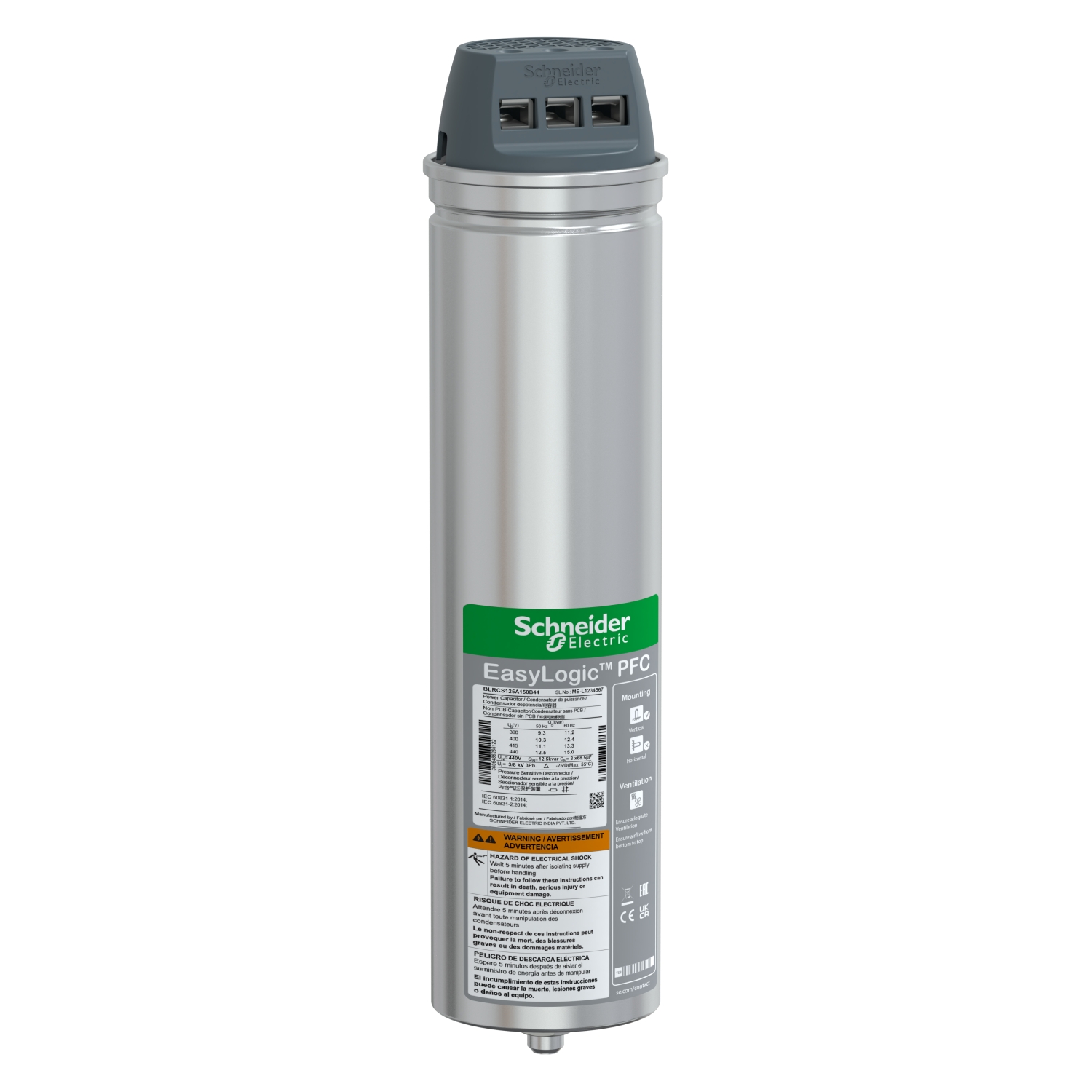

BLRCS125A150B44 | EasyCan Capacitor – 12.5/15 kvar – 440 V – 50/60Hz
| brands | Schneider Electric |
|---|---|
| Product or component type | Standard duty capacitor |
| Series name | EasyLogic PFC Capacitor |
| Network harmonic content | <= 10 % |
| Electrical parameters | 12.5 kvar 440 V 50 Hz 15 kvar 440 V 60 Hz |
| Maximum permissible voltage | 1.1 x Un (8 hours over 24 hours) |
| Rated voltage | 440 V AC 50/60 Hz |
| Network frequency | 50/60 Hz |
| Type of installation | Indoor installation |
| dielectric losses | < 0.2 W/kvar |
| Power losses | < 0.5 W/kVAr |
| capacitance tolerance | – 5 % to 10 % |
| Voltage test | 2.15 x Un AC between terminals for 10 s = 660 V – 6 kV AC between terminal and container for 10 s |
| Inrush current | 200 x In |
| Service life in hours | 100000 h |
| Dielectric material | Metallized polypropylene film with Zn/Al alloy, |
| Impregnation material | Non-PCB soft PUR resin Biodegradable |
| Connections - terminals | ClampTite terminal |
| Diameter | 75 mm |
| Operating altitude | 2000 m |
| Height | 308 mm |
| Net weight | 1.3 kg |
| Standards | IEC 60831-2 IEC 60831-1 |
| IP degree of protection | IP20 |
| Temperature class | D |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 28 cm |
| Package 1 Width | 8 cm |
| Package 1 Length | 8 cm |
| Package 1 Weight | 1.704 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 30 cm |
| Package 2 Width | 40 cm |
| Package 2 Length | 60 cm |
| Package 2 Weight | 13.732 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 32 |
| Package 3 Height | 60 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 60 cm |
| Package 3 Weight | 63.428 kg |
| Sustainable offer status | Green Premium product |
| REACh Regulation | REACh Declaration |
| EU RoHS Directive | Compliant EU RoHS Declaration |
| Mercury free | Yes |
| China RoHS Regulation | China RoHS declaration Product out of China RoHS scope. Substance declaration for your information |
| RoHS exemption information | Yes |
| Environmental Disclosure | Product Environmental Profile |
| Circularity Profile | End of Life Information |
| REACh free of SVHC | Yes |
| Toxic heavy metal free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 18 months |
