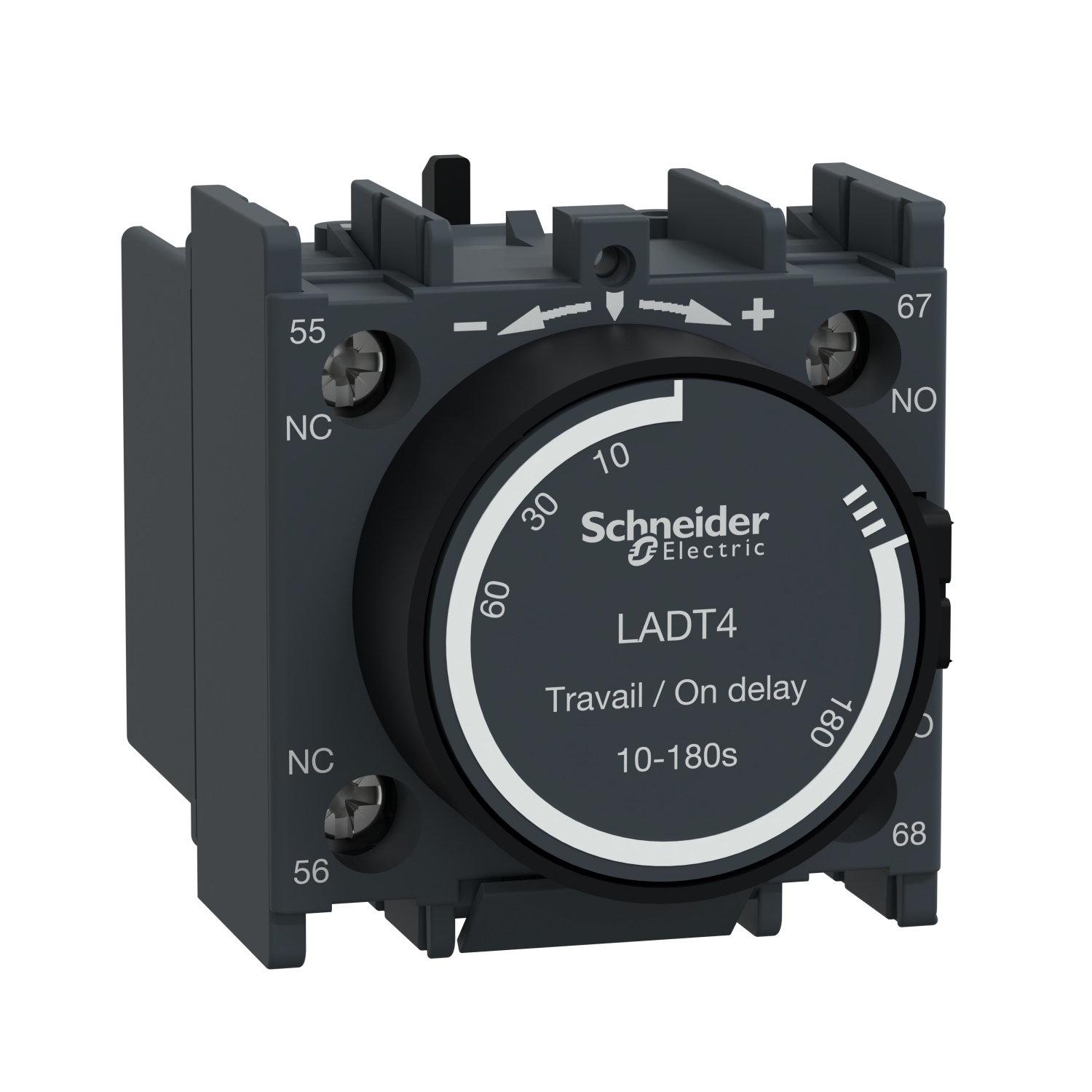

LADT4 | Time delay auxiliary contact block, TeSys D, 1NO + 1NC, on delay 10-180 s, front mounting, screw terminals

Description

brands	Schneider Electric
Range	TeSys TeSys Deca
Product name	TeSys Deca
Product or component type	Time delay auxiliary contact block
[Ie] rated operational current	6 A at 120 V AC-15 1.04 A at 690 V AC-15 0.55 A at 125 V DC-13 0.1 A at 600 V DC-13
Contacts operation	Time delay
Timer type	On delay
Time delay range	10…180 s
Pole contact composition	1 NO + 1 NC
Irms rated making capacity	140 A at <= 690 V AC conforming to IEC 60947-5-1 250 A at <= 690 V DC conforming to IEC 60947-5-1
Mechanical durability	5 Mcycles
Tightening torque	1.7 N.m – with screwdriver flat Ø 6 mm 1.7 N.m – with screwdriver Philips No 2 1.7 N.m – with screwdriver pozidriv No 2
minimum switching voltage	17 V
Minimum switching current	5 mA
Insulation resistance	> 10 MOhm
Non-overlap time	1.5 ms on de-energisation no overlap between NC and NO contact 1.5 ms on energisation no overlap between NC and NO contact
