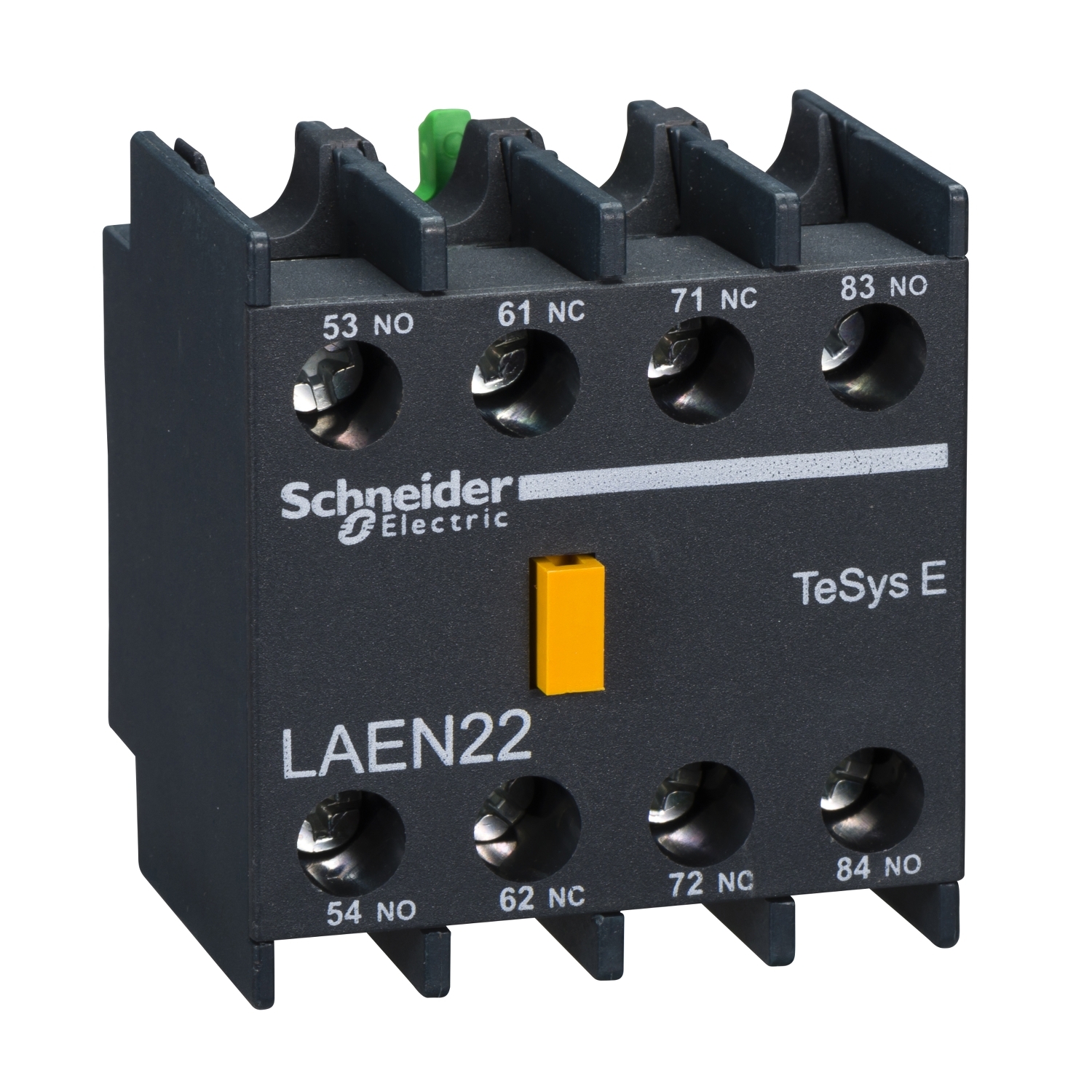

LAEN22 | Auxiliary contact block, EasyPact TVS, 2NO+2NC

Description

brands	Schneider Electric
Range	EasyPact
Product or component type	Auxiliary contact block
Device short name	LAEN
Device application	Signalling
Mechanical durability	10 Mcycles
Colour	Grey (RAL 7011)
Range compatibility	EasyPact (EasyPact TVS) LC1E
Mounting location	Front
Auxiliary contacts operation	Instantaneous
Pole contact composition	2 NO + 2 NC
Protection type	GG fuse 10 A
Minimum switching current	5 mA
Non-overlap time	1.5 ms on energisation no overlap between NC and NO contact 1.5 ms on de-energisation no overlap between NC and NO contact
Insulation resistance	> 10 MOhm
Connections - terminals	Control circuit: screw clamp terminals 1 1 mm² – external diameter: 6 mm – cable stiffness: solid or flexible with cable end Control circuit: screw clamp terminals 1 1 mm² – external diameter: 6 mm
Net weight	0.06 kg
Product certifications	GOST
Environmental characteristic	Standard environment
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	4.3 cm
Package 1 Width	6.9 cm
Package 1 Length	7.2 cm
Package 1 Weight	61.0 g
Unit Type of Package 2	S02
Number of Units in Package 2	72
Package 2 Height	15.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	4.71 kg
REACh Regulation	REACh Declaration
EU RoHS Directive	Compliant EU RoHS Declaration
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure	Product Environmental Profile
Circularity Profile	No need of specific recycling operations
Warranty	18 months
