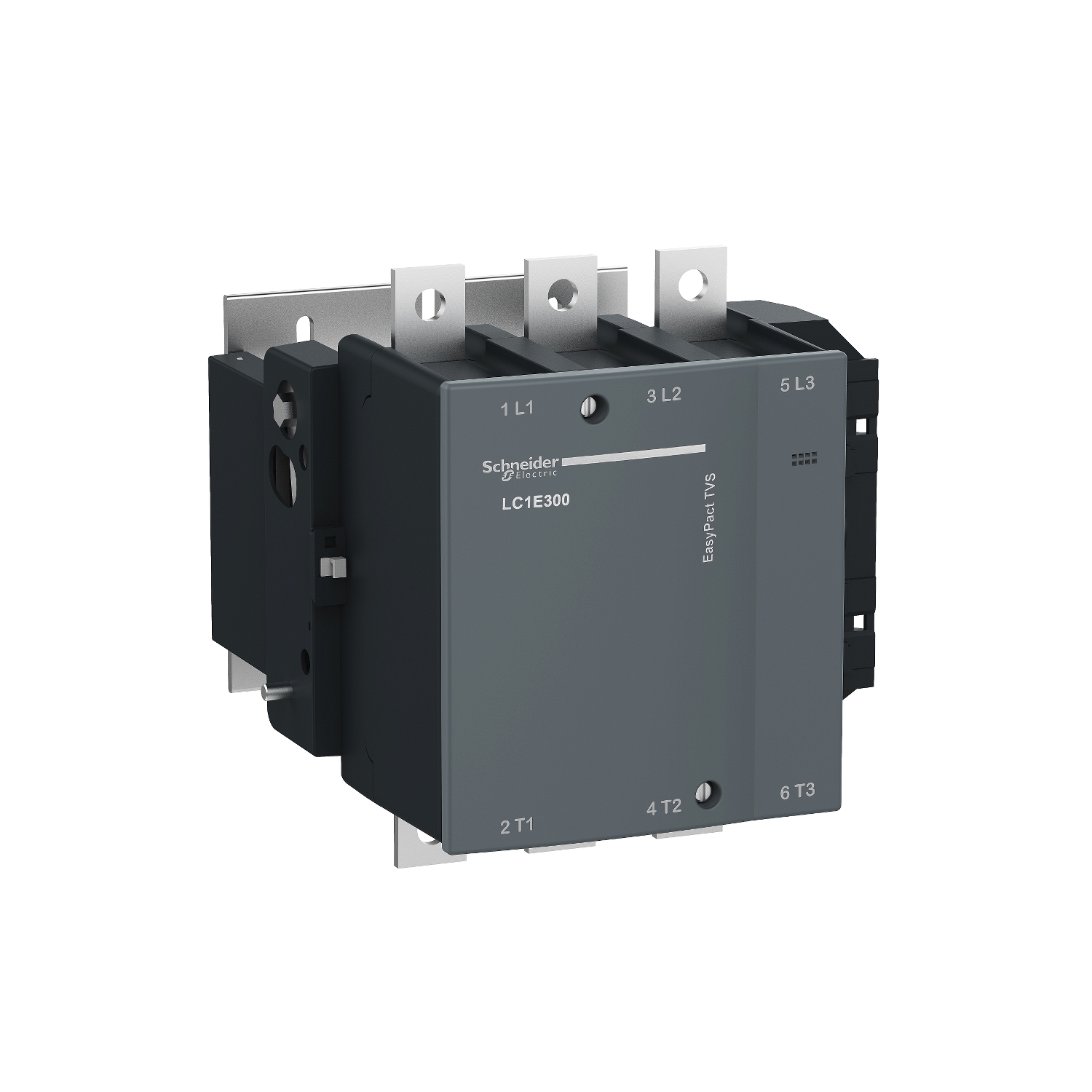

LC1E300M5 | Contactor,EasyPact TVS,3P(3NO),AC-3,
| brands | Schneider Electric |
|---|---|
| Range | EasyPact |
| Product or component type | Contactor |
| Device short name | LC1E |
| contactor application | Resistive load Motor control |
| [Ie] rated operational current | 300 A (at <55 °C) at <= 440 V AC AC-3 for power circuit 320 A (at <40 °C) at <= 440 V AC AC-1 for power circuit |
| Inrush power in VA | 650 VA 50 Hz cos phi 0.9 (at 20 °C) 650 VA 60 Hz cos phi 0.9 (at 20 °C) |
| Associated fuse rating | 10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1 500 A gG at <= 690 V coordination type 1 for power circuit |
| Tightening torque | Control circuit: 1.2 N.m Power circuit: 35 N.m |
| Mechanical durability | 5000000 cycles |
| Mounting support | Plate |
| Pole contact composition | 3 NO |
| Minimum switching current | 5 mA for control circuit |
| Non-overlap time | 1.5 ms on energisation guaranteed between NC and NO contact 1.5 ms on de-energisation guaranteed between NC and NO contact |
| Insulation resistance | > 10 MOhm for control circuit |
| Connections - terminals | Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² – cable stiffness: flexible without cable end Con |
| Poles description | 3P |
| minimum switching voltage | 17 V for control circuit |
| Utilisation category | AC-1 AC-3 |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 50/60 Hz |
| Control circuit type | AC at 50 Hz |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-4-1 |
| Maximum operating rate | 1200 cyc/h 55 °C |
| Motor power kW | 90 kW at 220…230 V AC 50/60 Hz (AC-3) 160 kW at 380…400 V AC 50/60 Hz (AC-3) 160 kW at 415 V AC 50/60 Hz (AC-3) 185 kW at 440 V AC 50/60 Hz (AC-3) 200 kW at 500 V AC 50/60 Hz (AC-3) 250 kW at 660 |
| Rated breaking capacity | 2400 A at 440 V for power circuit conforming to IEC 60947 |
| Average impedance | 0.3 mOhm – Ith 320 A 50 Hz for power circuit |
| Power dissipation per pole | 27 W AC-3 31 W AC-1 |
| Electrical durability | 400000 cycles AC-1 500000 cycles AC-3 |
| Heat dissipation | 8 W for control circuit |
| Operating time | 40…65 ms on closing 100…170 ms on opening |
| Net weight | 8.5 kg |
| Product certifications | EAC CE |
| Overvoltage category | III |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| IP degree of protection | IP00 conforming to IEC 60529 |
| Standards | IEC 60947-1 IEC 60947-4-1 IEC 60947-5-1 |
| Mechanical robustness | Vibrations contactor open (1.5 Gn, 5…300 Hz) Vibrations contactor closed (3 Gn, 5…300 Hz) Shocks contactor open (6 Gn for 11 ms) Shocks contactor closed (7 Gn for 11 ms) |
| Height | 206 mm |
| Width | 213 mm |
| Depth | 219 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 27.0 cm |
| Package 1 Width | 25.0 cm |
| Package 1 Length | 31.0 cm |
| Package 1 Weight | 9.446 kg |
| Sustainable offer status | Green Premium product |
| REACh Regulation | REACh Declaration |
| EU RoHS Directive | Compliant EU RoHS Declaration |
| Mercury free | Yes |
| China RoHS Regulation | China RoHS declaration Product out of China RoHS scope. Substance declaration for your information |
| RoHS exemption information | Yes |
| Environmental Disclosure | Product Environmental Profile |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 18 months |
