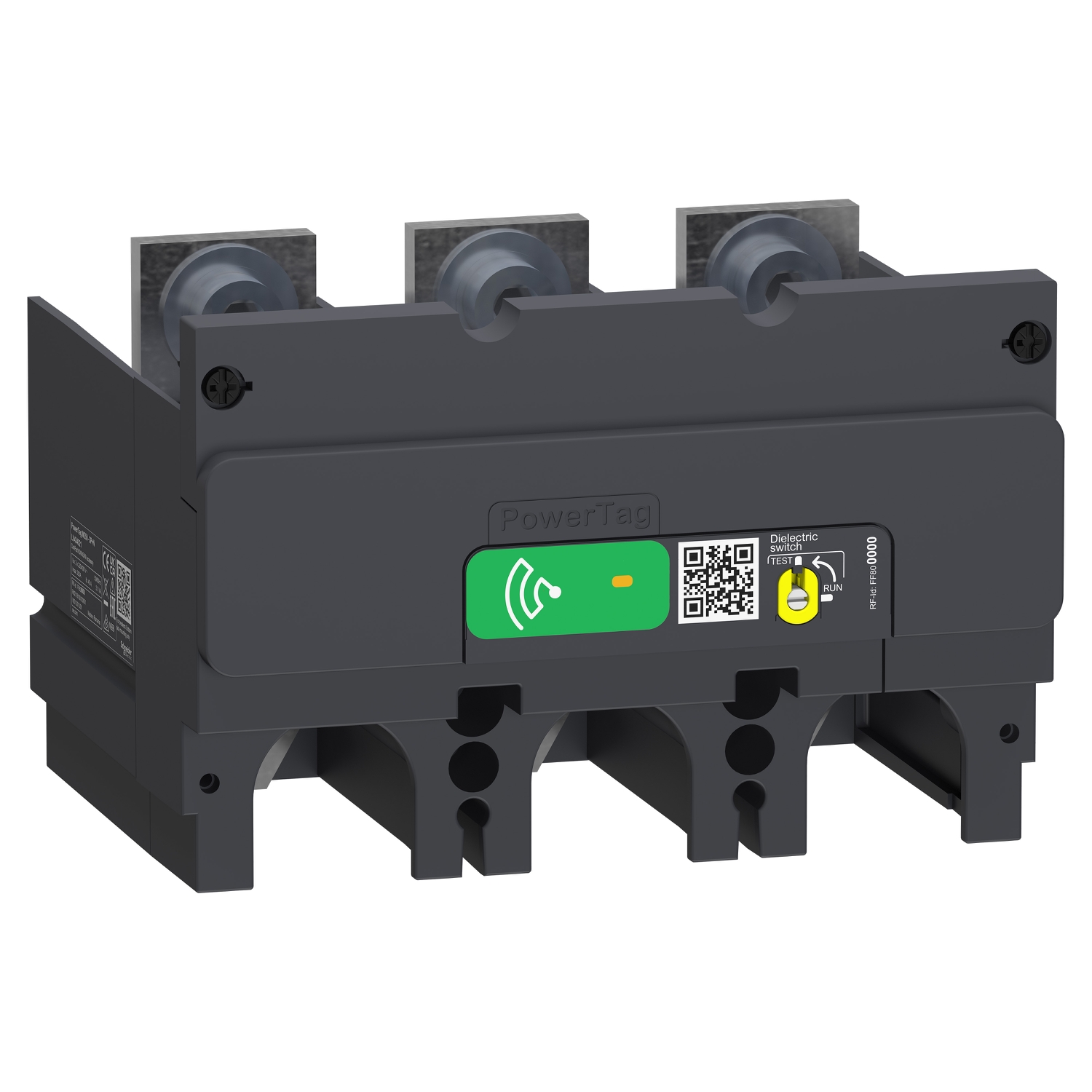

LV434022|Energy sensor,PowerTag Monoconnect 630A 3P
| brands | Schneider Electric |
|---|---|
| Product name | PowerTag M630 |
| Product or component type | Energy sensor |
| Poles | 3P |
| Maximum current [Imax] | 630 A |
| [Ib] basic current | 100 A |
| starting current | 400 mA |
| Saturation current | 1260 A |
| Product specific application | Energy management Overload alarm Power factor Load monitoring Circuit monitoring |
| Concentrator compatibility | Acti9 Smartlink SI B Acti9 Smartlink SI D Acti9 PowerTag Link C Acti9 PowerTag Link Acti9 PowerTag Link HD Harmony Hub Wiser IP module EcoStruxure Panel Server Universal EcoStruxure Panel Server Adva |
| Mounting location | Bottom |
| Connection pitch | 45 mm |
| Product destination | Switchboard |
| Event management | Voltage loss with measured current at voltage loss |
| Transmission support medium | Radio frequency 2.4…2.4835 GHz conforming to IEEE 802.15.4 (11…26) transmission time < 5 ms |
| maximum emission power | 10 mW |
| Accuracy class | Class 1 active energy conforming to IEC 61557-12 Class 2 reactive energy conforming to IEC 61557-12 Class 1 active power conforming to IEC 61557-12 Class 2 reactive power conforming to IEC 61557-12 C |
| Network frequency | 50 Hz 60 Hz |
| Poles description | 3P |
| Tightening torque | 50 N.m |
| Type of measurement | Active and reactive energy Active and reactive power Apparent power Current Voltage Power factor |
| Mounting support | On circuit breaker |
