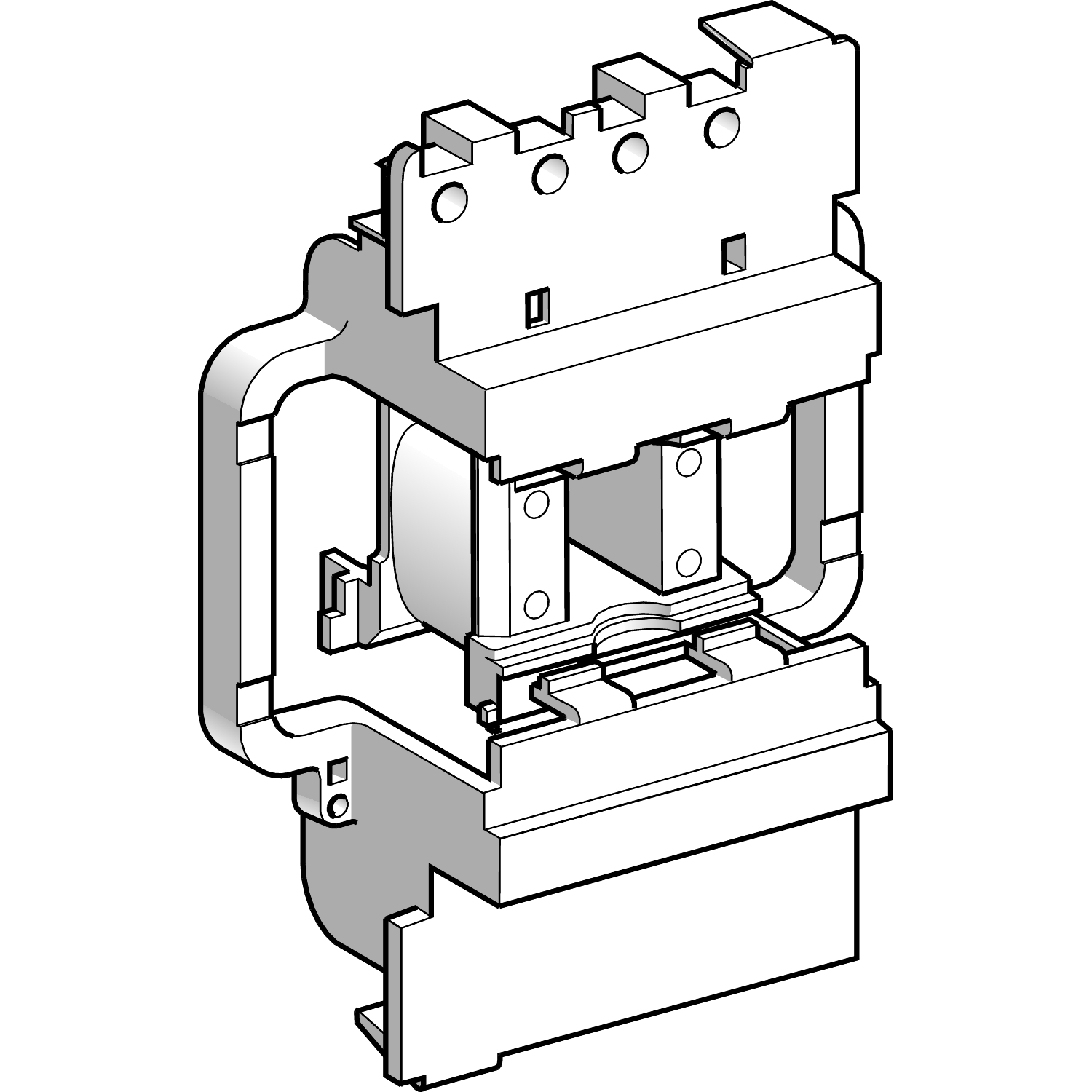

LX1D8Q7 | TeSys D – contactor coil – LX1D8 – 380 V AC 50/60 Hz for 115 & 150 A contactor
| brands | Schneider Electric |
|---|---|
| Range | TeSys |
| Product or component type | Contactor coil |
| Device short name | LX1D8 |
| Product compatibility | LC1D115 LC1D150 |
| Average resistance | 21011 Ohm at 20 °C |
| Inductance of closed circuit | 482.42 H |
| Control circuit type | AC at 50/60 Hz |
| Mechanical durability | 8 Mcycles |
| Maximum operating rate | 1200 cyc/h 60 °C |
| Inrush power in VA | 280…350 VA 60 Hz cos phi 0.9 (at 20 °C) 280…350 VA 50 Hz cos phi 0.9 (at 20 °C) |
| [Uc] control circuit voltage | 380 V AC 50/60 Hz |
| Coil technology | Without built-in suppressor module |
| Heat dissipation | 3…4.5 W at 50/60 Hz |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.2 cm |
| Package 1 Width | 11.3 cm |
| Package 1 Length | 17.1 cm |
| Package 1 Weight | 299.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 6.429 kg |
| Sustainable offer status | Green Premium product |
| REACh Regulation | REACh Declaration |
| REACh free of SVHC | Yes |
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration |
| Mercury free | Yes |
| China RoHS Regulation | China RoHS declaration Product out of China RoHS scope. Substance declaration for your information |
| RoHS exemption information | Yes |
| Environmental Disclosure | Product Environmental Profile |
| Circularity Profile | No need of specific recycling operations |
| Warranty | 18 months |
