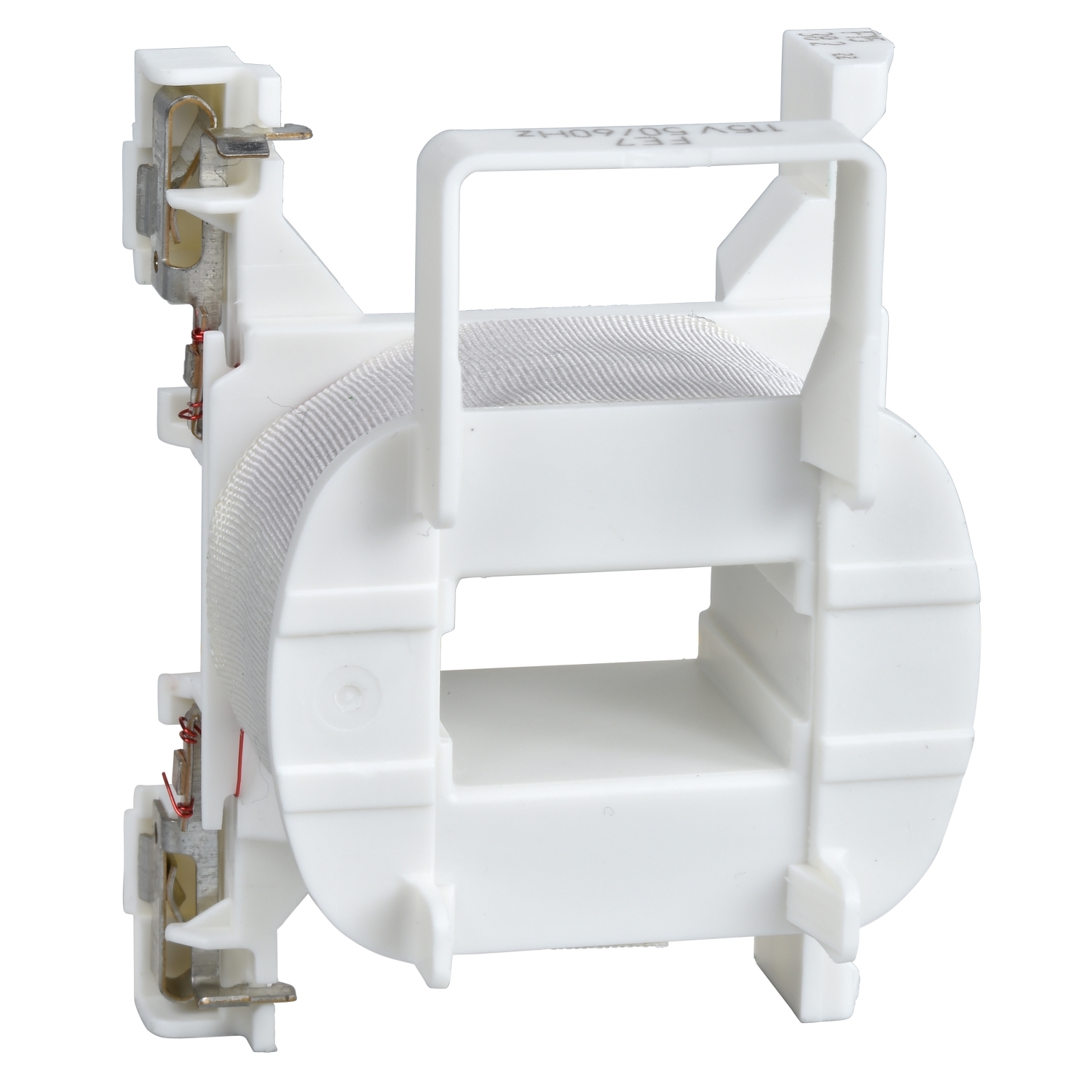

LXD1P7 | TeSys D – contactor coil – LXD1 – 230 V AC 50/60 Hz for 9… 38 A contactor
Out of stock -46%
Additional Info
Reviews
Additional Info
| brands | Schneider Electric |
|---|---|
| Range | TeSys |
| Product or component type | Contactor coil |
| Device short name | LXD1 |
| Product compatibility | LC1DT20…DT40 CAD LC1D09…D38 |
| Average resistance | 538.6 Ohm at 20 °C |
| Inductance of closed circuit | 20 H |
| Control circuit type | AC at 50/60 Hz |
| Mechanical durability | 15 Mcycles |
| Maximum operating rate | 3600 cyc/h 60 °C |
| Inrush power in VA | 70 VA 60 Hz cos phi 0.75 (at 20 °C) 70 VA 50 Hz cos phi 0.75 (at 20 °C) |
| [Uc] control circuit voltage | 230 V AC 50/60 Hz |
| Coil technology | Without built-in suppressor module |
| Heat dissipation | 2…3 W at 50/60 Hz |
| Net weight | 0.07 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.500 cm |
| Package 1 Width | 6.300 cm |
| Package 1 Length | 4.000 cm |
| Package 1 Weight | 70.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 7.450 kg |
| REACh Regulation | REACh Declaration |
| REACh free of SVHC | Yes |
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| China RoHS Regulation | China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope) |
| RoHS exemption information | Yes |
| PVC free | Yes |
| Warranty | 18 months |
