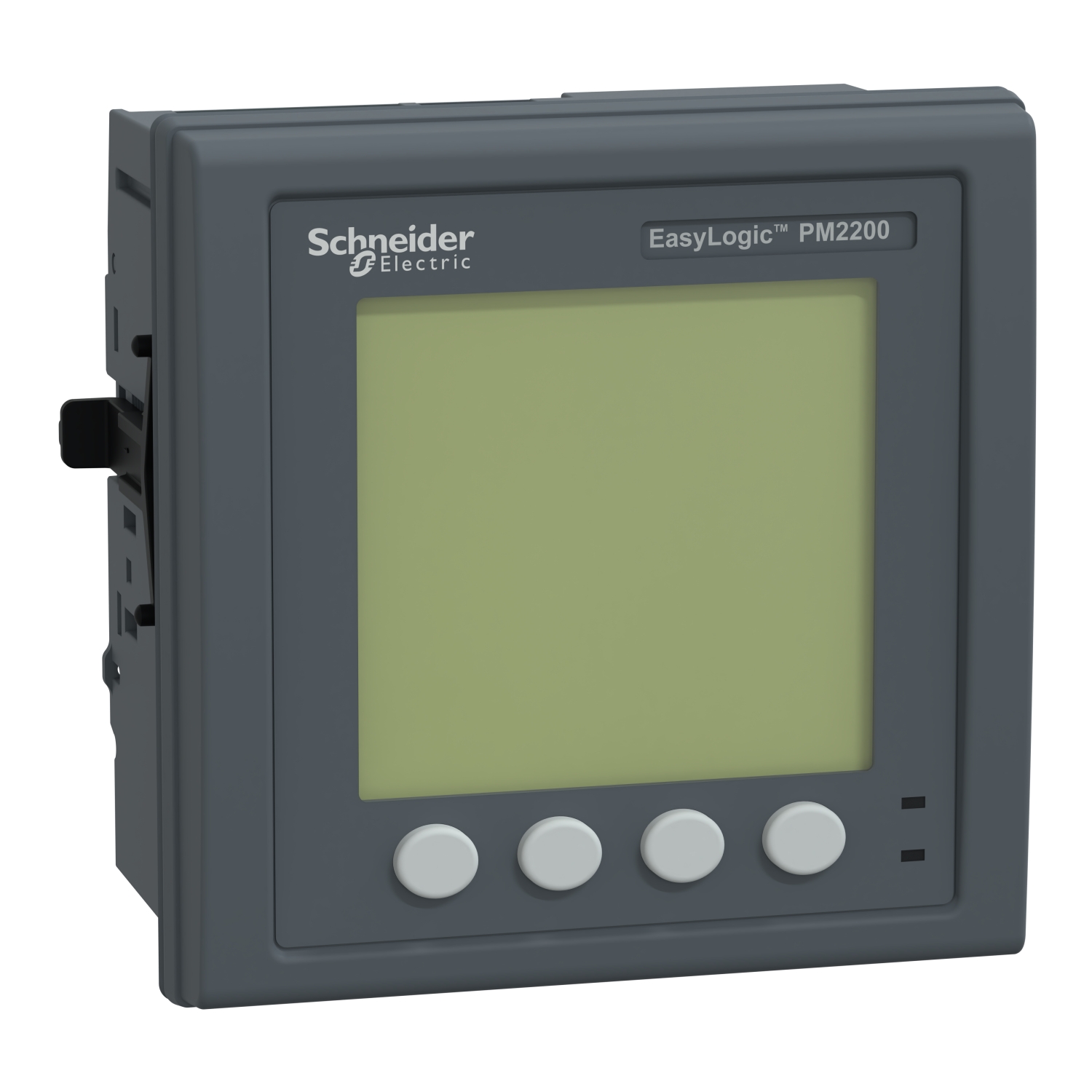

METSEPM2220 | EasyLogic PM2220 – Power & Energy meter – up to 15th H – LCD – RS485 – class 1
| brands | Schneider Electric |
|---|---|
| Product name | EasyLogic PM2200 |
| Device short name | PM2220 |
| Product or component type | Power meter |
| Device application | Power monitoring Sub billing |
| Power quality analysis | Total harmonic distortion up to the 15th harmonic |
| Metering type | Active, reactive, apparent energy (signed, four quadrant) Current I, I1, I2, I3 Peak demand currents Peak demand power PM, QM, SM Unbalance current Active power P, P1, P2, P3 Reactive power Q, Q1, Q2 |
| Accuracy class | Class 1 active energy conforming to IEC 62053-21 Class 1 reactive energy conforming to IEC 62053-24 Class 5 harmonic distorsion (I THD & U THD) |
| Measurement accuracy | Apparent power +/- 1 % Active energy +/- 1 % Reactive energy +/- 1 % Active power +/- 1 % Voltage +/- 0.5 % Power factor +/- 0.01 Current +/- 0.5 % Frequency +/- 0.05 % |
| Frequency measurement range | 45…65 Hz |
| Network frequency | 50 Hz 60 Hz |
| Ride-through time | 100 ms 120 V AC typical 400 ms 230 V AC typical 50 ms 125 V DC typical |
| [In] rated current | 1 A 5 A |
| Analogue input type | Current (impedance 5 MOhm) |
| Tamperproof of settings | Protected by access code |
| Display type | Backlit LCD |
| Display colour | Monochrome |
| Display resolution | 128 x 128 pixels |
| Demand intervals | Configurable from 1 to 60 min |
| Information displayed | Demand current (past value) Demand current (present value) Demand power (past value) Demand power (present value) Voltage Current Frequency Energy consumption Harmonic distortion Power factor Active |
| Local signalling | Red LED: output signal 1…9999000 pulse/ k_h (kWh, kVAh, kVARh) Green LED: module operation and integrated communication |
| Number of inputs | 0 |
| Number of outputs | 0 |
| Communication port protocol | Modbus RTU at 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps even/odd or none – 2 wires, insulation 2500 V |
| Communication port support | Screw terminal block: RS485 |
| data recording | Time stamping Min/max for 8 parameters |
| Function available | Real time clock |
| Sampling rate | 64 samples/cycle |
| Cybersecurity | Enable/disable communication ports |
| Communication service | Remote monitoring |
| User language | Spanish French English Russian Portuguese German Chinese |
| Product certifications | CE conforming to IEC 61010-1 CULus conforming to UL 61010-1 CULus conforming to CSA C22.2 No 61010-1 RCM EAC C-Tick |
| Mounting position | Vertical |
| Provided equipment | 1 x installation guide |
| Electrical insulation class | Double insulation Class II |
| Double insulation Class II | V-0 conforming to UL 94 |
| Material | Polycarbonate |
| Compatibility code | PM2220 |
| Service life | 7 year(s) |
| Operating altitude | <= 2000 m |
| Width | 96 mm |
| Height | 96 mm |
| Net weight | 300 g |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.9 cm |
| Package 1 Width | 12.2 cm |
| Package 1 Length | 11.7 cm |
| Package 1 Weight | 270 g |
| Sustainable offer status | Green Premium product |
| REACh Regulation | REACh Declaration |
| EU RoHS Directive | Compliant EU RoHS Declaration |
| Mercury free | Yes |
| China RoHS Regulation | China RoHS declaration |
| RoHS exemption information | Yes |
| Environmental Disclosure | Product Environmental Profile |
| Circularity Profile | End of Life Information |
