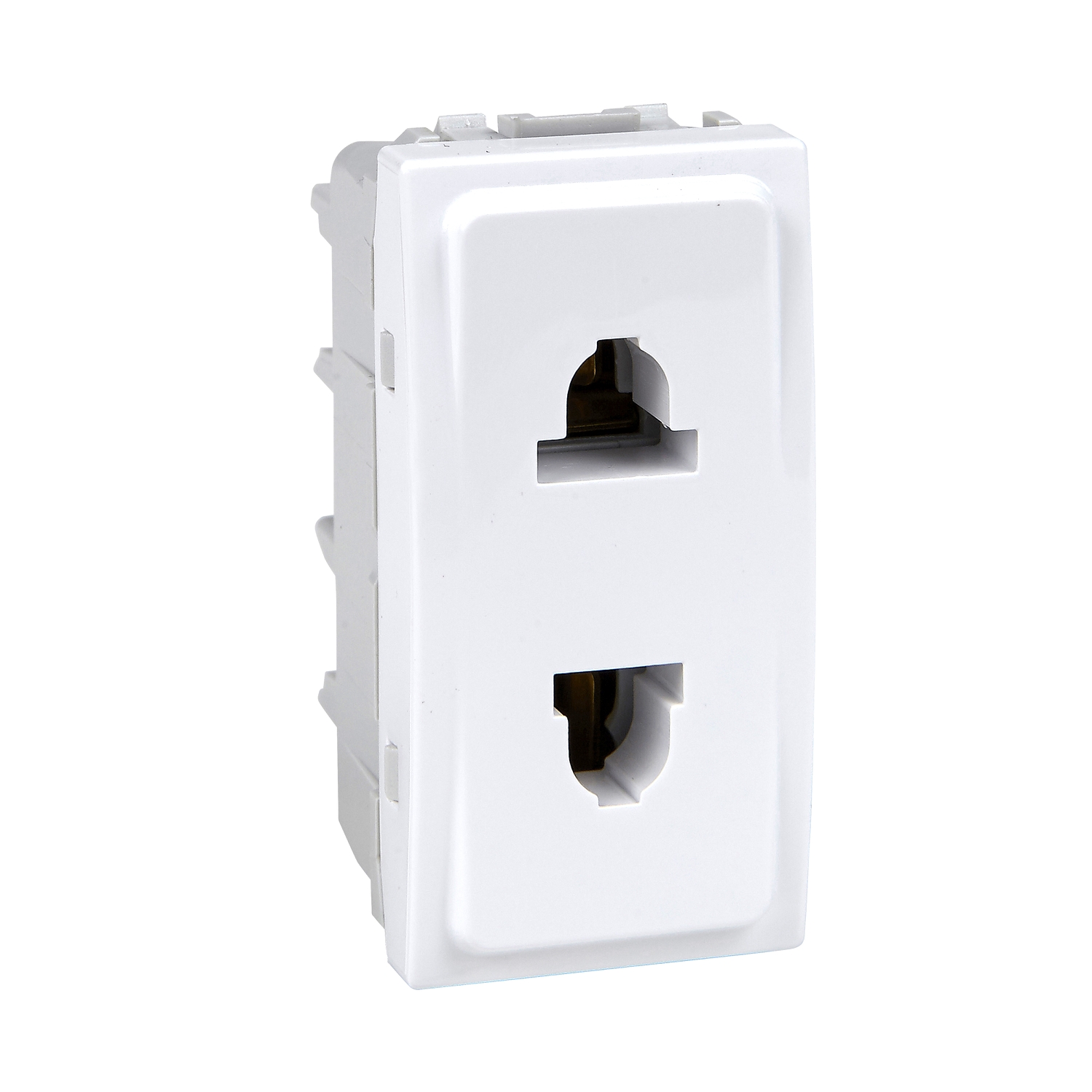

MGU3.020.18 | Unica – 1 S.O. – 2P, EU/US – 1 m – white
| brands | Schneider Electric |
|---|---|
| Range | Unica |
| Product or component type | Socket-outlet |
| Aesthetic name | Unica (standard aesthetic) |
| Device presentation | Mechanism |
| Device mounting | Flush |
| Socket number | 1 |
| Outlet poles configuration | 2P |
| outlet standard | Euroamerican |
| Depth | 33 mm |
| Width | 22.5 mm |
| Height | 45 mm |
| Net weight | 0.0206 kg |
| Material | ASA + PC: mechanism cover |
| Rated current | 16 A |
| [Ue] rated operational voltage | < 250 V |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Electrical durability | 10000 cycles, cos phi = 0.8 |
| Insulation resistance | > 5 MOhm at 500 V |
| Dielectric strength | 2000 V |
| Number of modules | 1 module |
| Connections - terminals | Screw terminals |
| Fixing mode | Clip-in |
| Embedding depth | 24 mm |
| Device application | Power supply |
| Colour tint | White (RAL 9003) |
| Cable cross section | 0…4 mm² – cable stiffness: flexible 0…4 mm² – cable stiffness: rigid |
| Surface finish | Brilliant |
| Quantity per set | Set of 1 blister |
| Product certifications | FR.ME63.B02375 AC |
| Surface treatment | Untreated |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.400 cm |
| Package 1 Width | 6.500 cm |
| Package 1 Length | 6.600 cm |
| Package 1 Weight | 22.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 4.800 cm |
| Package 2 Width | 13.400 cm |
| Package 2 Length | 33.400 cm |
| Package 2 Weight | 298.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 120 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 4.060 kg |
| Sustainable offer status | Green Premium product |
| Green Premium product | REACh Declaration |
| EU RoHS Directive | Compliant EU RoHS Declaration |
| Mercury free | Yes |
| China RoHS Regulation | China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope) |
| RoHS exemption information | Yes |
| Environmental Disclosure | Product Environmental Profile |
| REACh free of SVHC | Yes |
| Toxic heavy metal free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Circularity Profile | No need of specific recycling operations |
| Warranty | 18 months |
| IK degree of protection | IK01 |
| IP degree of protection | IP20 |
| Environmental characteristic | Window-cleaning fluid Liquid soap Acetone Bleach UV resistant Oil Alcohol Petrol |
