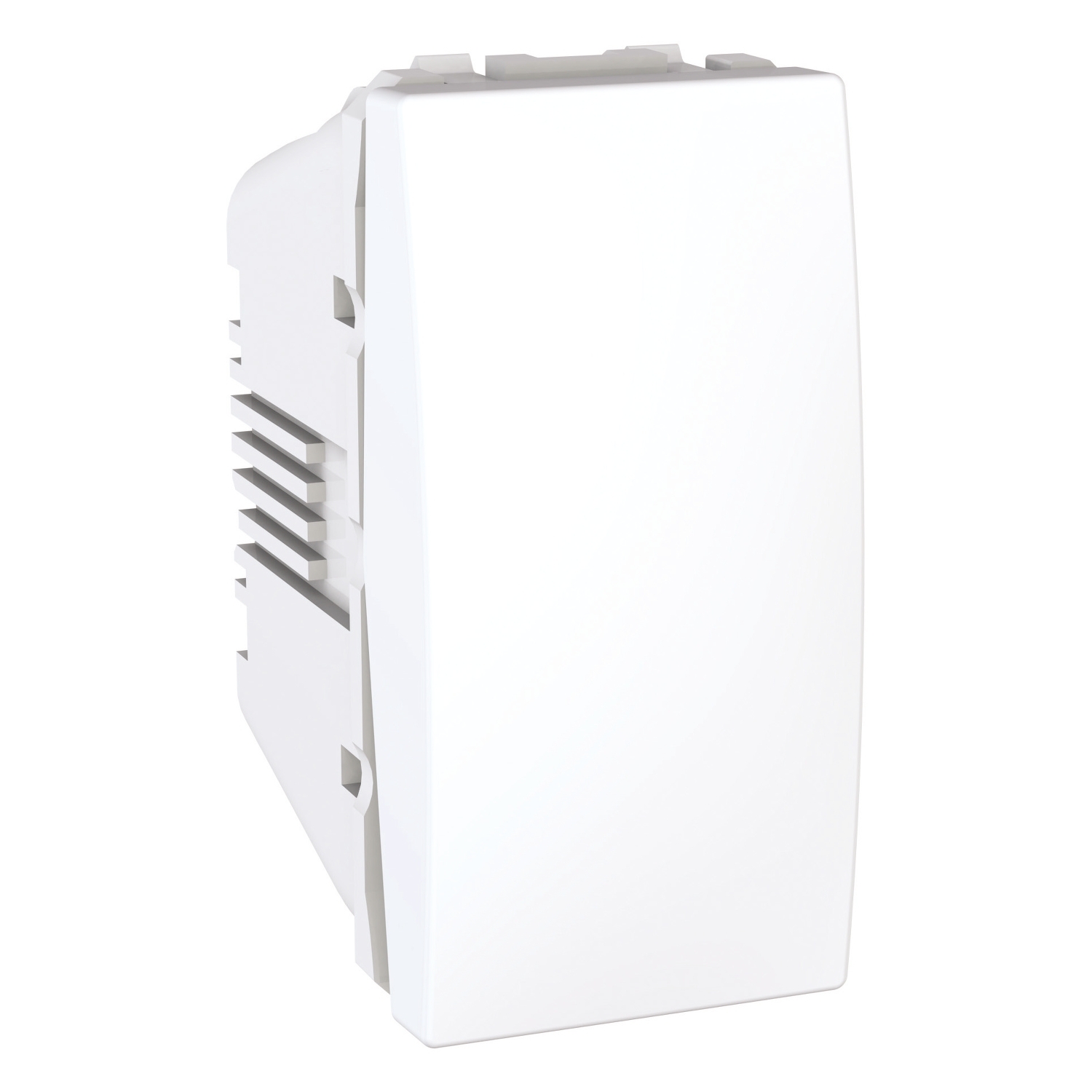

MGU3.101T.18 | Unica – rocker switch – 1-way – 10 AX 250 VAC – 1 m – white
| brands | Schneider Electric |
|---|---|
| Range | Unica |
| Product or component type | Switch |
| Aesthetic name | Unica (standard aesthetic) |
| Device presentation | Mechanism |
| Technology type | Electromechanical |
| Switch function | 1-pole 1-way |
| Number of rocker | 1 |
| Provided equipment | Internal power connection |
| Standards | LV directive EN 60669-1 EMC directive |
| Depth | 34 mm |
| Width | 22.5 mm |
| Height | 45 mm |
| Net weight | 0.019 kg |
| Material | ASA + PC: mechanism cover |
| Rated current | 10 AX |
| [Ue] rated operational voltage | < 250 V |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Electrical durability | 10000 cycles |
| Insulation resistance | > 5 MOhm at 500 V |
| Dielectric strength | 2000 V |
| Opening distance | > 3 mm |
| Actuator | Rocker |
| Number of modules | 1 module |
| Connections - terminals | Screw terminals |
| Fixing mode | Clip-in |
| Embedding depth | 22 mm |
| Device application | Light control |
| Colour tint | White |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.4 cm |
| Package 1 Width | 4.7 cm |
| Package 1 Length | 6.3 cm |
| Package 1 Weight | 22 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 4.4 cm |
| Package 2 Width | 13.6 cm |
| Package 2 Length | 33.5 cm |
| Package 2 Weight | 288 kg |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 40 |
| Package 3 Height | 15 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 1607 kg |
| Sustainable offer status | Green Premium product |
| Green Premium product | REACh Declaration |
| EU RoHS Directive | Compliant EU RoHS Declaration |
| Mercury free | Yes |
| China RoHS Regulation | China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope) |
| RoHS exemption information | Yes |
| Environmental Disclosure | Product Environmental Profile |
| REACh free of SVHC | Yes |
| Toxic heavy metal free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 18 months |
| IK degree of protection | IK01 |
| IP degree of protection | IP20 |
| Environmental characteristic | Oil Liquid soap Alcohol Petrol Bleach Window-cleaning fluid Acetone UV resistant |
