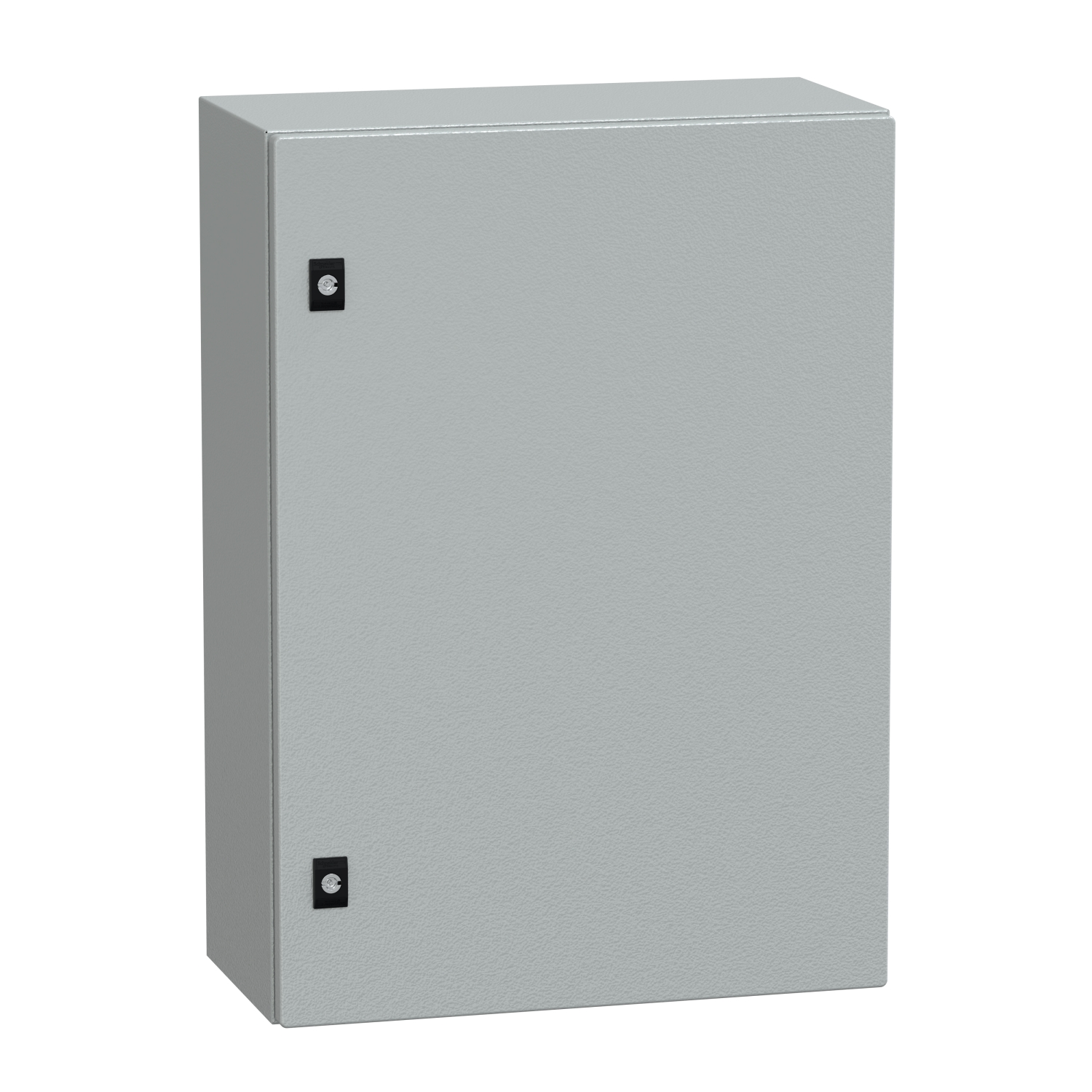

NSYCRN75250 | Spacial CRN plain door w/o mount.plate. H700xW500xD250 IP66 IK10 RAL7035..
| brands | Schneider Electric |
|---|---|
| Range | Spacial |
| Product name | Spacial CRN |
| Device application | Multi-purpose |
| Product or component type | Compact enclosure |
| Enclosure nominal height | 700 mm |
| Enclosure nominal width | 500 mm |
| Enclosure nominal depth | 250 mm |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body 1 cable gland plate 1 door 1 lock |
| Door type | Plain |
| Mounting plate description | Without mounting plate |
| body type | Sides made from a single folded section Back welded with double profile forming a protected sealed area |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 mm double-bar lock |
| Type of gland plate | Standard |
| accessibility for operation | Front |
| Removable parts | Door by hinges Cable gland plate by screws |
| Material | Body: steel |
| Surface finish | Epoxy-polyester powder |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Product certifications | CUL UL DNV-GL |
| Net weight | 15 kg |
| Standards | IEC 62208 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 27.500 cm |
| Package 1 Width | 51.000 cm |
| Package 1 Length | 71.800 cm |
| Package 1 Weight | 15.040 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 18 |
| Package 2 Height | 220.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 283.720 kg |
| Sustainable offer status | Green Premium product |
| REACh Regulation | REACh Declaration |
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration |
| Mercury free | Yes |
| China RoHS Regulation | China RoHS declaration Product out of China RoHS scope. Substance declaration for your information |
| RoHS exemption information | Yes |
| Environmental Disclosure | Product Environmental Profile |
| Circularity Profile | No need of specific recycling operations |
| Warranty | 18 months |
