RE17RBMU | Timing on impulse, one shot timing relay – 1 s..100 h – 24..240 V AC – 1 OC – AN Electric

Sale!

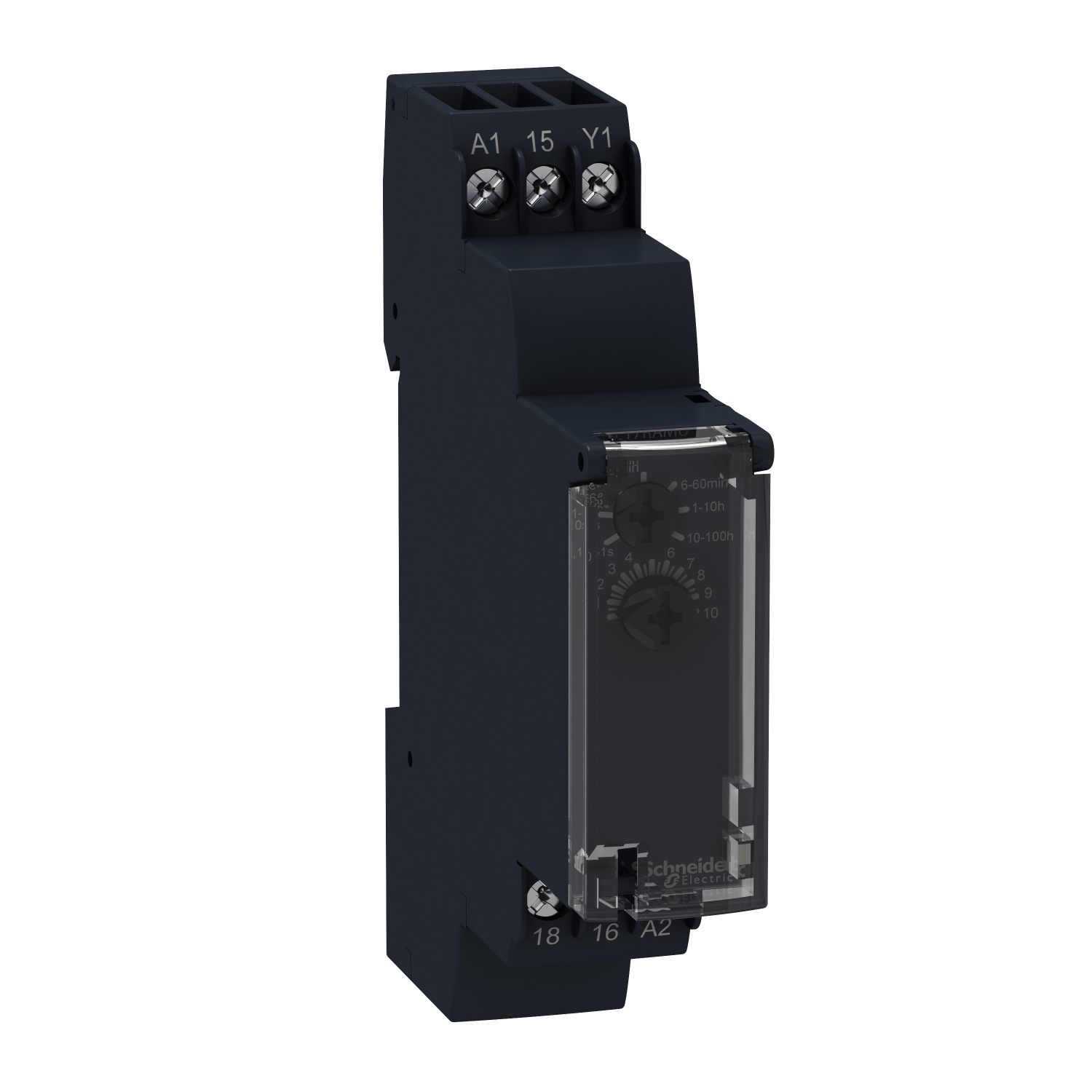

RE17RBMU | Timing on impulse, one shot timing relay - 1 s..100 h - 24..240 V AC - 1 OC

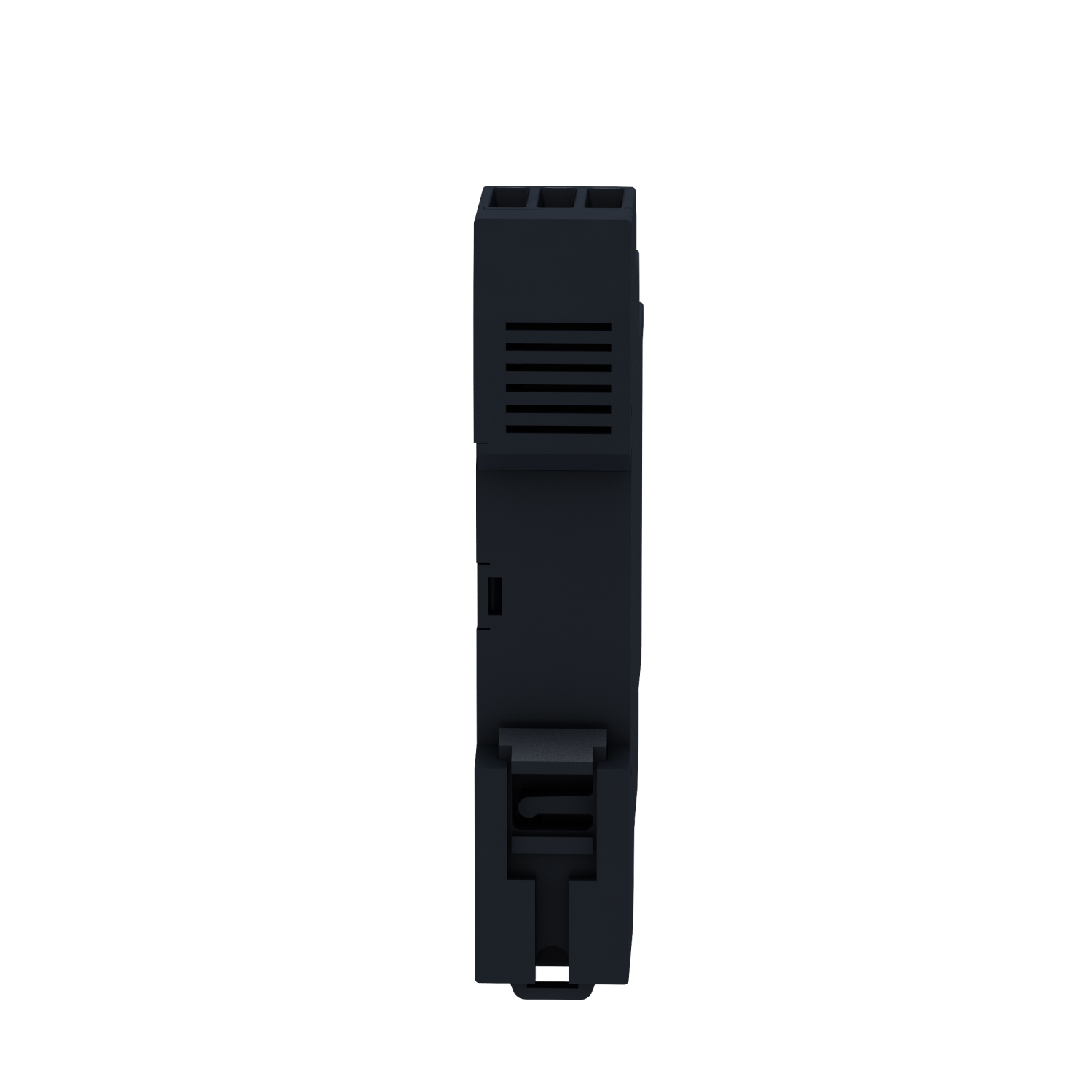

RE17RBMU | Timing on impulse, one shot timing relay - 1 s..100 h - 24..240 V AC - 1 OC - Image 2

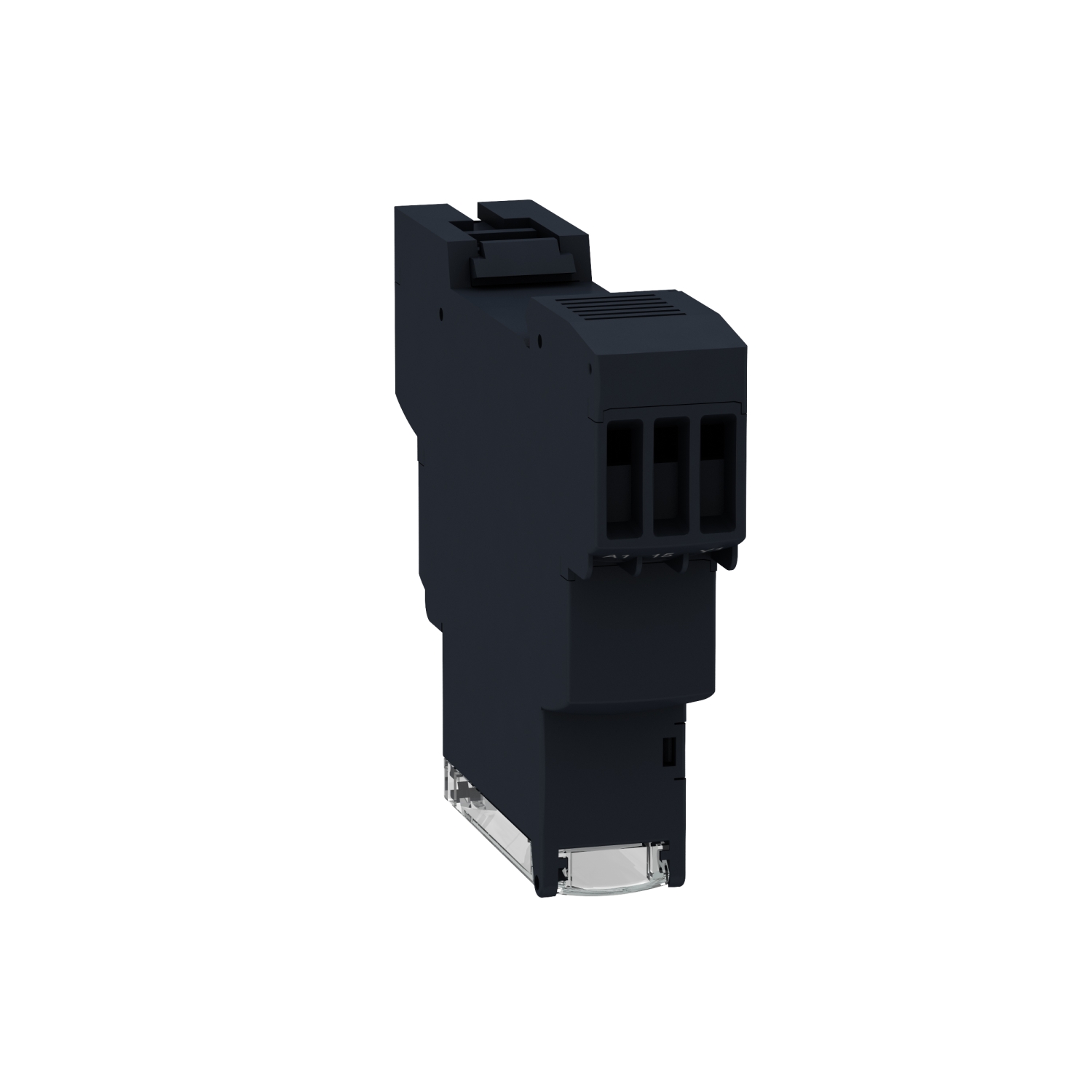

RE17RBMU | Timing on impulse, one shot timing relay - 1 s..100 h - 24..240 V AC - 1 OC - Image 3

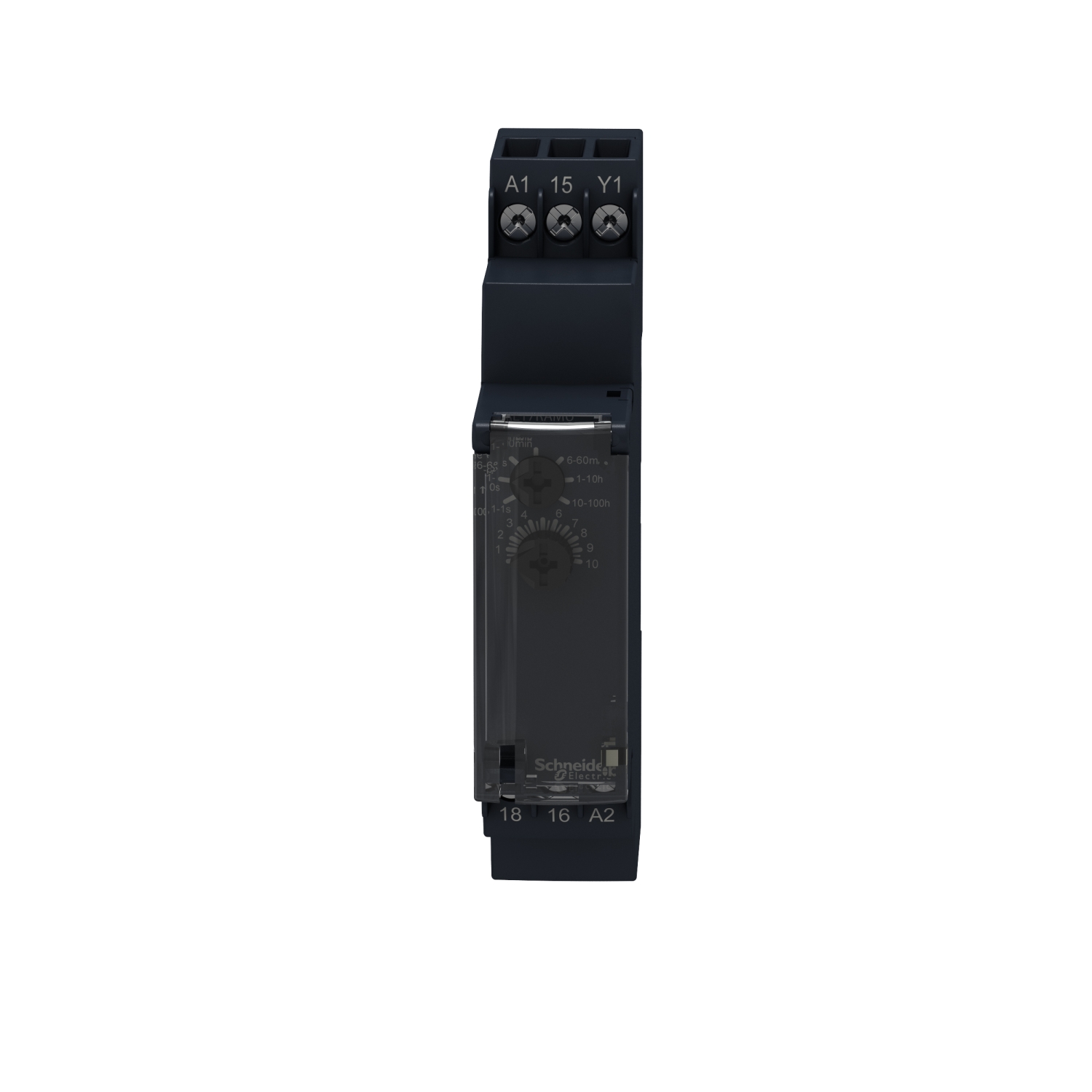

RE17RBMU | Timing on impulse, one shot timing relay - 1 s..100 h - 24..240 V AC - 1 OC - Image 4

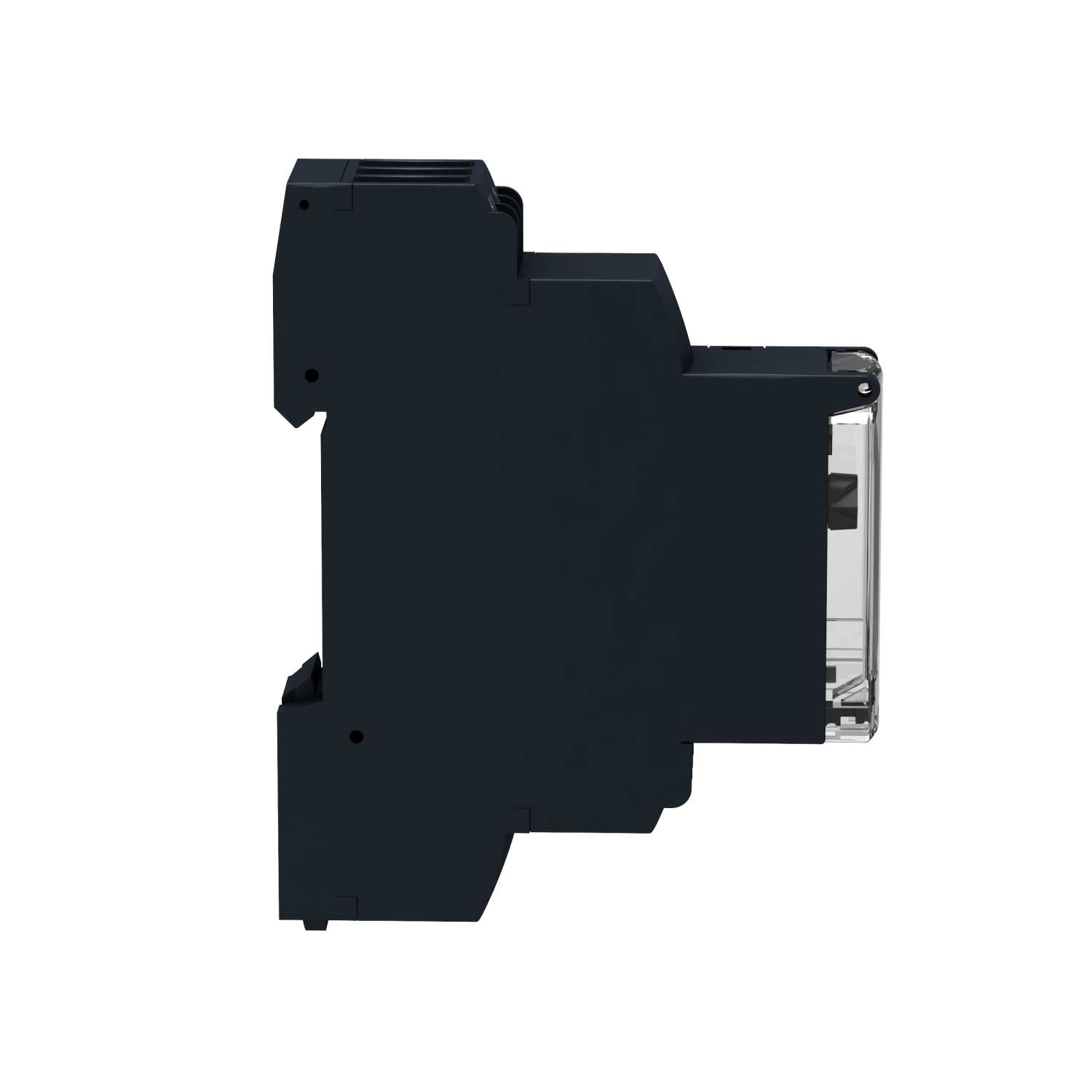

RE17RBMU | Timing on impulse, one shot timing relay - 1 s..100 h - 24..240 V AC - 1 OC - Image 5

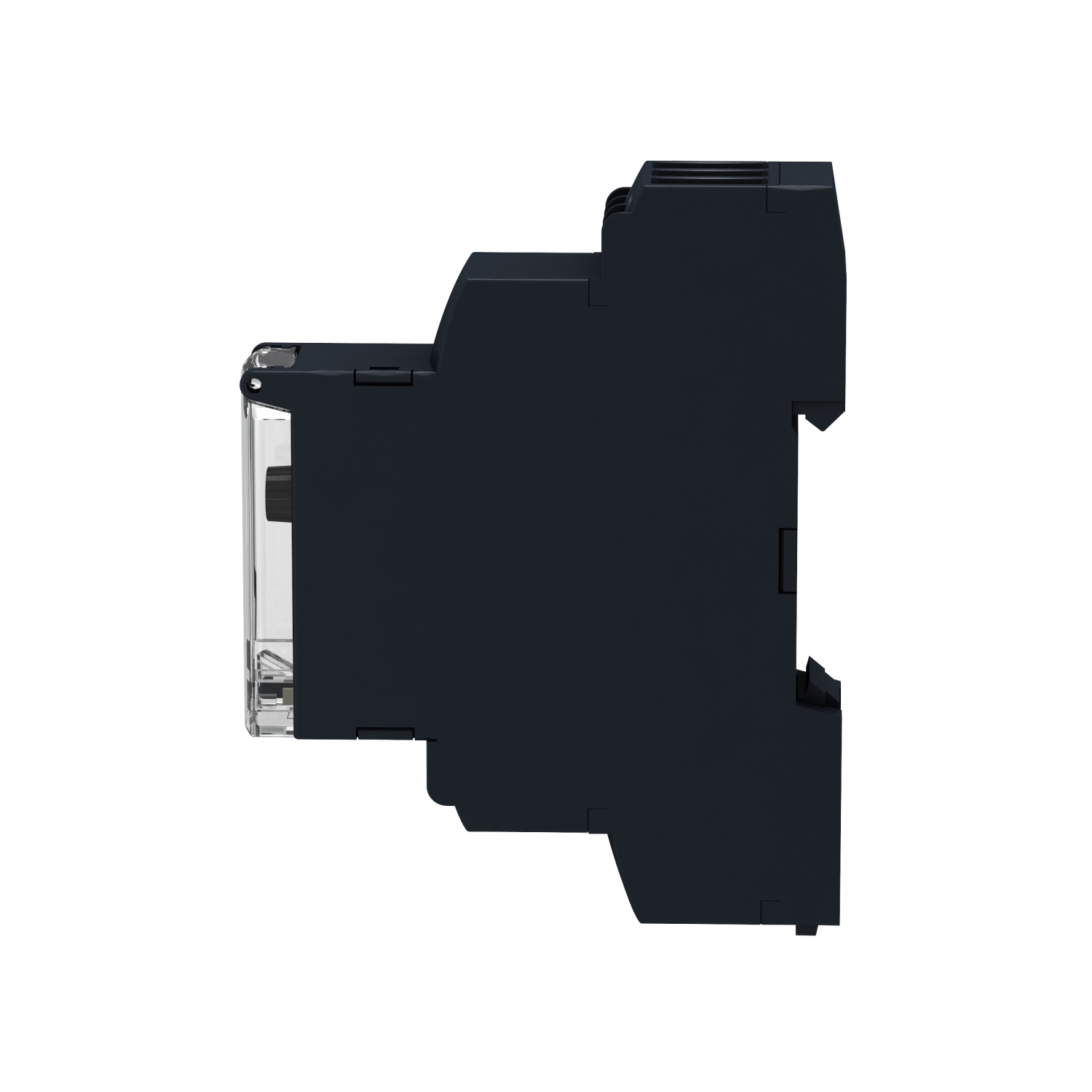

RE17RBMU | Timing on impulse, one shot timing relay - 1 s..100 h - 24..240 V AC - 1 OC - Image 6

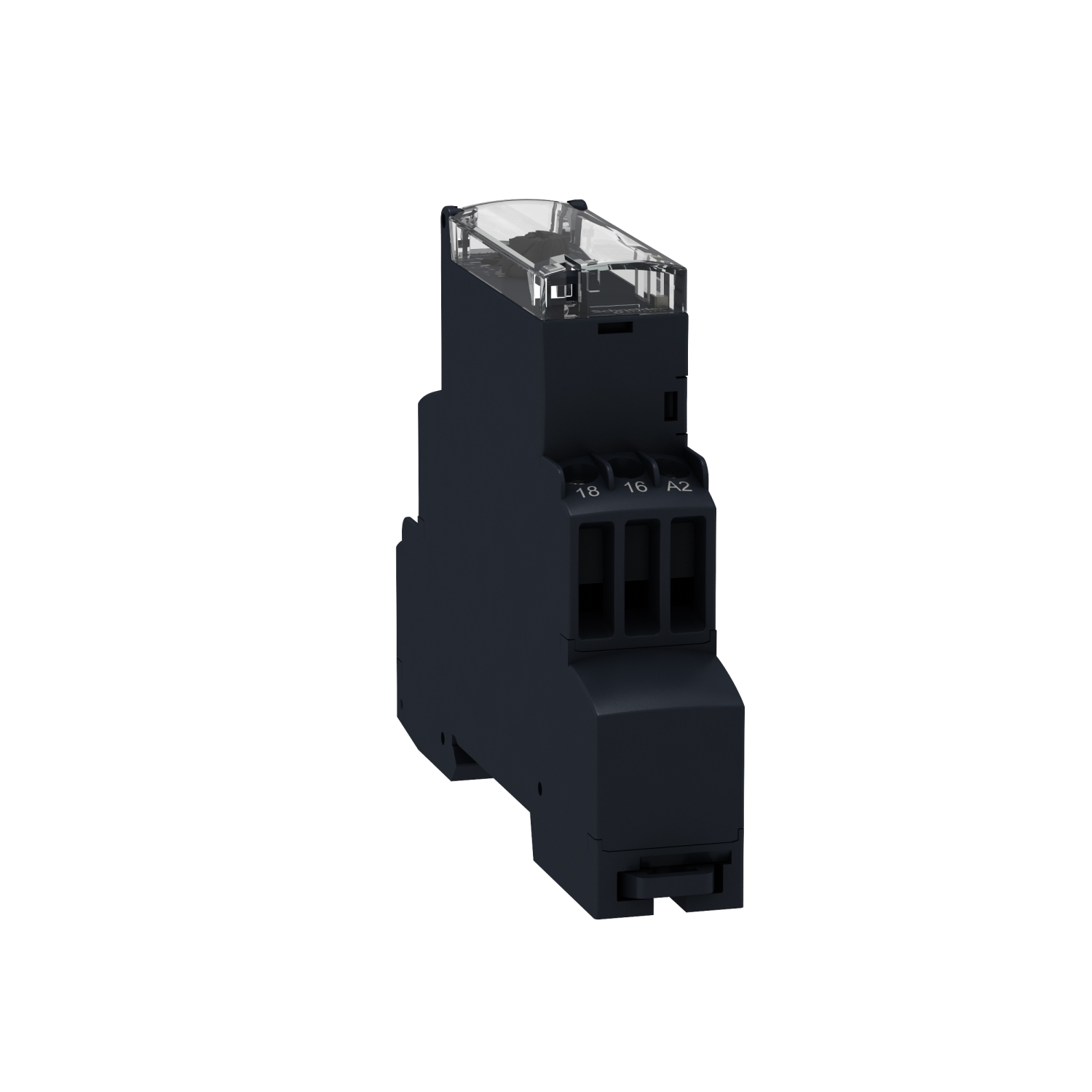

RE17RBMU | Timing on impulse, one shot timing relay - 1 s..100 h - 24..240 V AC - 1 OC - Image 7

RE17RBMU | Timing on impulse, one shot timing relay – 1 s..100 h – 24..240 V AC – 1 OC

Original price was: 2.935,39 EGP.Current price is: 1.702,52 EGP.

RE17RBMU | Timing on impulse, one shot timing relay – 1 s..100 h – 24..240 V AC – 1 OC

Out of stock

Description

RE17RBMU | Timing on impulse, one shot timing relay – 1 s..100 h – 24..240 V AC – 1 OC

Additional information

brands	Schneider Electric
Range of product	Harmony Timer Relays
Product or component type	Single function relay
Device short name	RE17R
Time delay range	10…100 h 1…10 min 6…60 min 1…10 s 6…60 s 1…10 h 0.1…1 s
Control type	Selector switch front panel
supply voltage frequency	50…60 Hz +/- 5 %
Housing material	Self-extinguishing
Mechanical durability	10000000 cycles
Power on delay	100 ms
Safety reliability data	MTTFd = 296.8 years B10d = 270000
Width	17.5 mm
Net weight	0.07 kg
Release input voltage	10 V
Creepage distance	4 kV/3 conforming to IEC 60664-1
On-load factor	100%
