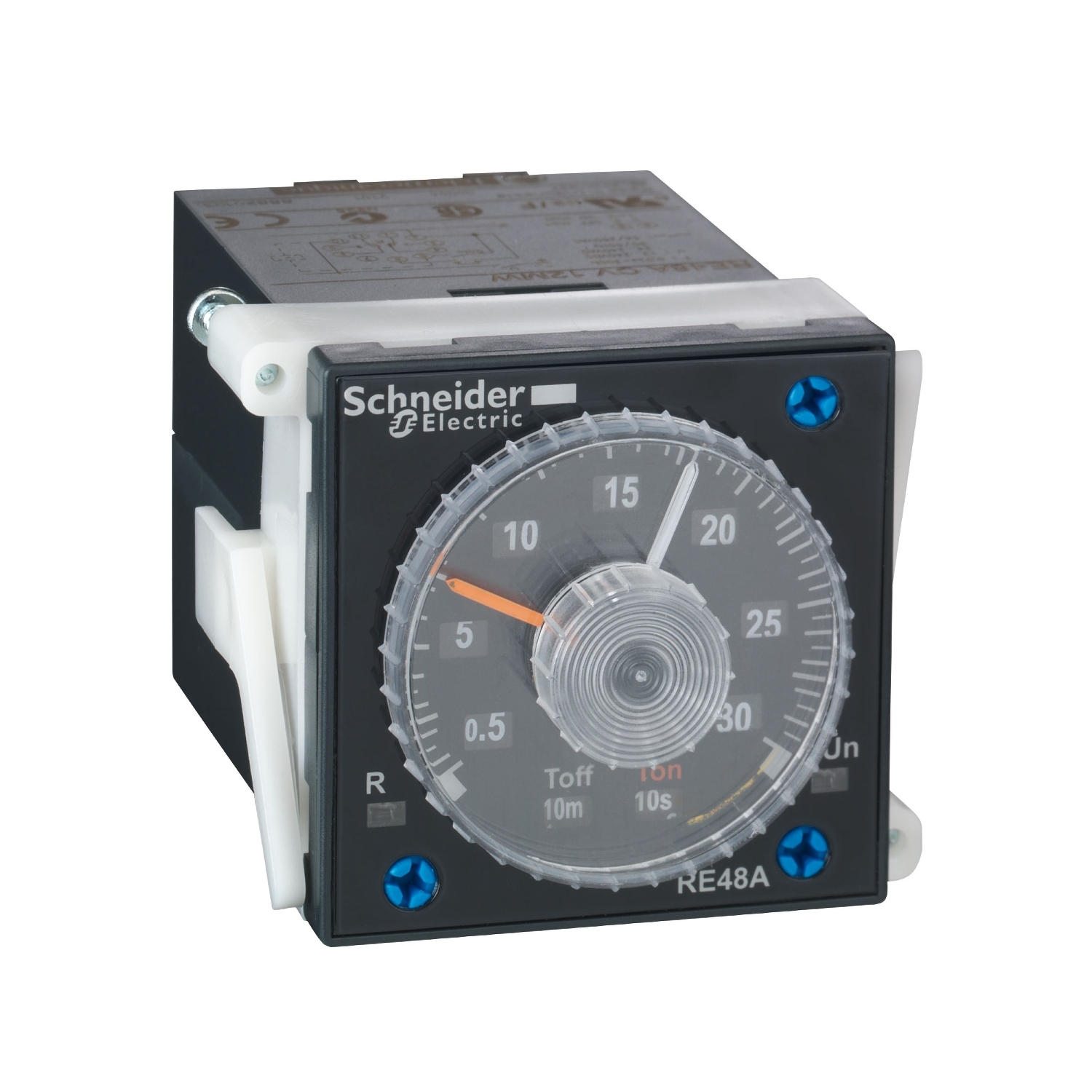

RE48ACV12MW | Asymmetrical flashing relay – 0.02 s..300 h – 24..240 V AC – 2 OC
Original price was: 6.745,15 EGP.3.912,19 EGPCurrent price is: 3.912,19 EGP.
RE48ACV12MW | Asymmetrical flashing relay – 0.02 s..300 h – 24..240 V AC – 2 OC
Out of stock
RE48ACV12MW | Asymmetrical flashing relay – 0.02 s..300 h – 24..240 V AC – 2 OC
| brands | Schneider Electric |
|---|---|
| Range of product | Harmony Timer Relays |
| Product or component type | Dual function relay |
| Electrical connection | Plug-in sub-base 11 pin(s) |
| Component name | RE48A |
| Time delay range | 0.2…12 min 5…300 s 0.02…1.2 s 0.5…30 min 5…300 h 0.2…12 h 0.2…12 s 0.5…30 s 2…120 s 0.05…3 s 2…120 min 5…300 min 0.5…30 h 2…120 h |
| Control type | Selector switch front panel |
| Housing material | Self-extinguishing |
| Mechanical durability | 30000000 cycles |
| Net weight | 0.14 kg |
| Product front plate size | 48 x 48 mm |
| Temperature drift | +/- 0.02 %/°C of the maximum setting value conforming to IEC 61812-1 |
| Voltage drift | +/- 0.2 %/V of the maximum setting value at 48…240 V +/- 1 %/V of the maximum setting value at 24…48 V |
| Minimum pulse duration | 20 ms |
| Pick up duration | 55 ms |
| On-load factor | 100% |
| Power consumption in W | 0.5 W at 24 V 1.7 W at 240 V |
| Output voltage | 240 V at 5 A AC-12 30 V at 2 A DC-13 240 V at 1.5 A AC-15 |
| Marking | CE |
| Mounting support | Base mounted: socket Panel mounted: system supplied with the product |
| discrete output type | Relay |
| Standards | EN 50081-1/2 EN 50082-1/2 IEC 61812-1 93/68/EEC 89/336/EEC IEC 60669-2-3 73/23/EEC |
| Product certifications | UL C-Tick cULus CSA |
| Humidity drift | +/- 0.05 %/%RH of the maximum setting value conforming to IEC 61812-1 |
| Immunity to voltage dips | 30 % / 10 ms conforming to IEC 61000-4-11 60 % / 100 ms conforming to IEC 61000-4-11 95 % / 5 s conforming to IEC 61000-4-11 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.7 cm |
| Package 1 Width | 10.3 cm |
| Package 1 Length | 6.2 cm |
| Package 1 Weight | 131 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 4.417 kg |
| Sustainable offer status | Green Premium product |
| REACh Regulation | REACh Declaration |
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration |
| Mercury free | Yes |
| China RoHS Regulation | China RoHS declaration |
| China RoHS declaration | Yes |
| Environmental Disclosure | Product Environmental Profile |
| Circularity Profile | End of Life Information |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 18 months |
