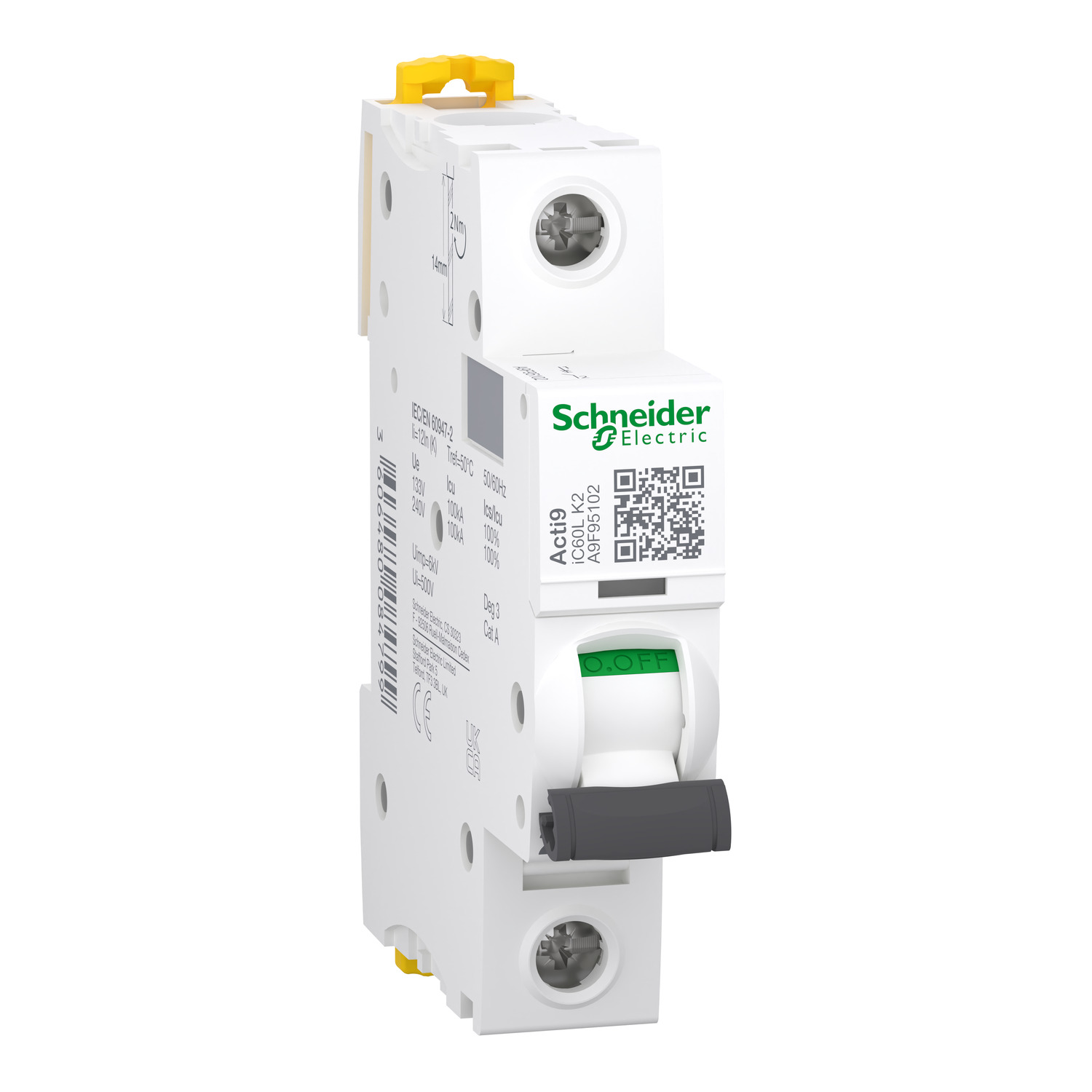

Schneider A9F95102 | Miniature circuit breaker (MCB), Acti9 iC60L, 1P, 2A, K curve, 15000A (IEC/EN 60898-1), 100kA (IEC/EN 60947-2)

Schneider A9F95102 | Miniature circuit breaker (MCB), Acti9 iC60L, 1P, 2A, K curve, 15000A (IEC/EN 60898-1), 100kA (IEC/EN 60947-2)

Technical Specifications

• Model Number: A9F95102
• Series: Acti9 iC60L
• Breaker Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 1P (Single-Pole)
• Rated Current: 2A
• Tripping Curve: K Curve (for high inrush current loads)
• Breaking Capacity:
  • 15kA (IEC/EN 60898-1 – Residential & Commercial Applications)
  • 100kA (IEC/EN 60947-2 – Industrial & High Fault Level Applications)
• Voltage Rating: 230/400V AC
• Frequency: 50/60 Hz
• Mounting Type: DIN Rail Mounting
• Ingress Protection: IP20 (when installed in an enclosure)
• Compliance & Certifications:
  • IEC/EN 60898-1 (for residential & commercial electrical systems)
  • IEC/EN 60947-2 (for industrial & heavy-duty electrical systems)

Key Features

1. K-Curve Tripping for High Inrush Current Loads

   • Specially designed to withstand high starting currents from inductive loads like motors, transformers, and solenoids without nuisance tripping.
   • Trips within 8 to 12 times the rated current, ensuring stable operation in demanding applications.

2. Ultra-High Breaking Capacity (100kA)

   • Offers exceptional protection against short circuits, making it suitable for high-fault environments such as industrial plants and power stations.

3. Single-Pole (1P) Design for Compact Installation

   • Ideal for protecting individual circuits, providing space-efficient integration into electrical panels.

4. Advanced Safety Features with Acti9 Technology

   • VisiTrip Indicator for quick fault detection.
   • VisiSafe Technology ensures complete disconnection of the circuit for enhanced operator safety.

5. Compact & Modular DIN Rail Mounting

   • Designed for quick installation in both new installations and retrofitting projects.

6. Reliable Performance in Harsh Conditions

   • Built to withstand voltage fluctuations and harsh industrial conditions, ensuring long-term durability.

7. Full Compliance with Global Standards

   • Meets both IEC 60898-1 (for residential & commercial use) and IEC 60947-2 (for industrial applications), ensuring wide usability.

Applications

• Industrial Machinery Protection: Ideal for motors, transformers, and industrial control systems.
• Power Distribution Panels: Used in commercial and industrial power networks for circuit protection.
• Heavy-Duty Equipment: Protects equipment with high inrush currents without nuisance tripping.
• Renewable Energy Systems: Suitable for solar power and battery storage applications.
• Critical Infrastructure: Applied in data centers, medical facilities, and high-risk electrical environments.
