Description

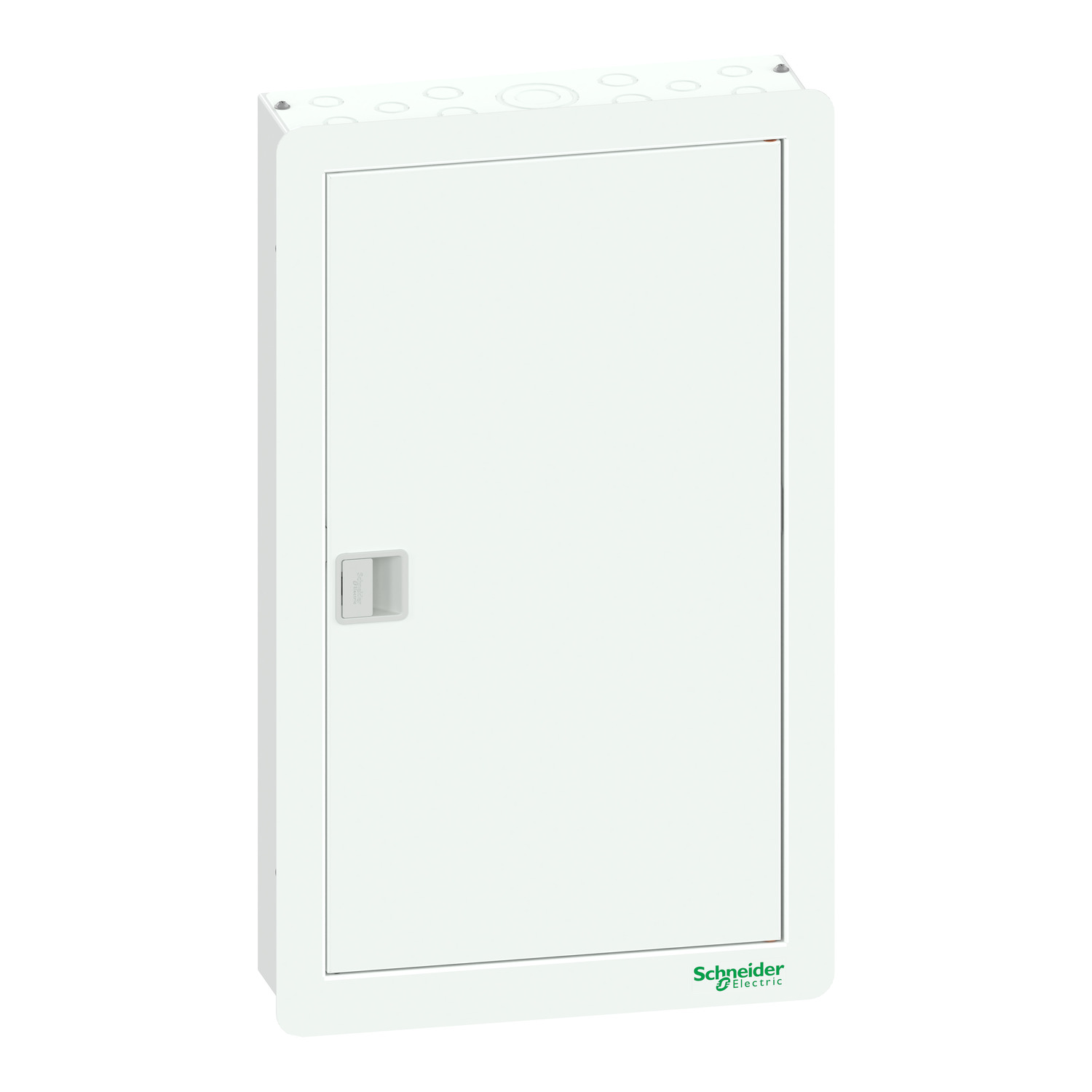

Schneider A9HD336XIR125 | Acti 9 Vertical TPN 36way with 3P 125A Dual incomer provision

Technical Specifications

1. Product Type: Vertical TPN Distribution Board

2. Series: Acti9

3. Model: A9HD336XIR125

4. Mounting Type: Wall-mounted

5. Orientation: Vertical configuration

6. Number of Ways: 36 outgoing ways

7. Main Incomer Rating: 125 Amperes

8. Poles: Three-phase + Neutral (TPN)

9. Incomer Configuration: Dual incomer provision (supports two power sources with interlocking capability)

10. Busbar Type: Copper busbar, fully shrouded and segregated

11. Enclosure Material: Sheet steel with high-quality powder coating

12. Degree of Protection: IP43 (higher ratings possible with optional accessories or enclosures)

13. Operational Voltage: Up to 415V AC

14. Frequency: 50/60 Hz

15. Standards Compliance:

    • IEC 61439-3 (distribution boards)

    • IEC 60947-1 (low-voltage switchgear and controlgear)

16. Cable Access: Top and bottom knockouts for flexible cabling options

17. Color: Light grey (RAL 7035)

18. Metering Options: Provision for optional metering accessories

19. Ambient Temperature: Operating range from -20°C to +60°C

Key Features

• Dual Incomer Provision: Allows connection of two separate power sources (e.g., utility and generator), enhancing energy reliability and continuity.

• 36-Way High-Capacity Design: Ideal for large-scale installations requiring numerous protected circuits.

• Modular Integration: Fully compatible with Schneider’s Acti9 protection devices, including MCBs, RCDs, and RCBOs.

• EverLink Ready: Terminal compatibility with Schneider’s patented EverLink technology for secure and long-lasting connections (when applicable to accessories).

• Efficient Heat Dissipation: Built-in ventilation to manage heat under high electrical loads.

• Safe and Segregated Layout: Ensures electrical safety by isolating live parts and busbars.

• Ease of Installation: Spacious interior and accessible layout make wiring and maintenance straightforward.

• Expandable and Flexible: Supports future upgrades with room for extra devices or monitoring modules.

• Factory Assembled: Tested and pre-configured by Schneider Electric for optimal safety and performance.

Applications

The Schneider A9HD336XIR125 is designed for environments where a high number of circuits and reliable source switching are required. Common applications include:

• Commercial Complexes: Shopping malls, office buildings, and hotels requiring extensive circuit protection and power management.

• Industrial Plants: Used in workshops, factories, and manufacturing floors with diverse machinery and equipment.

• Hospitals and Healthcare Facilities: Where backup power and source switching are critical for patient safety.

• Educational Institutions: Universities and schools with wide electrical distribution needs.

• Public Infrastructure Projects: Airports, railway stations, metro systems, and stadiums.

• Data Centers and IT Facilities: Ensures stable power distribution with source redundancy.

• Residential Towers and Gated Communities: Used as a main distribution point in high-rise and multi-unit residential developments.
