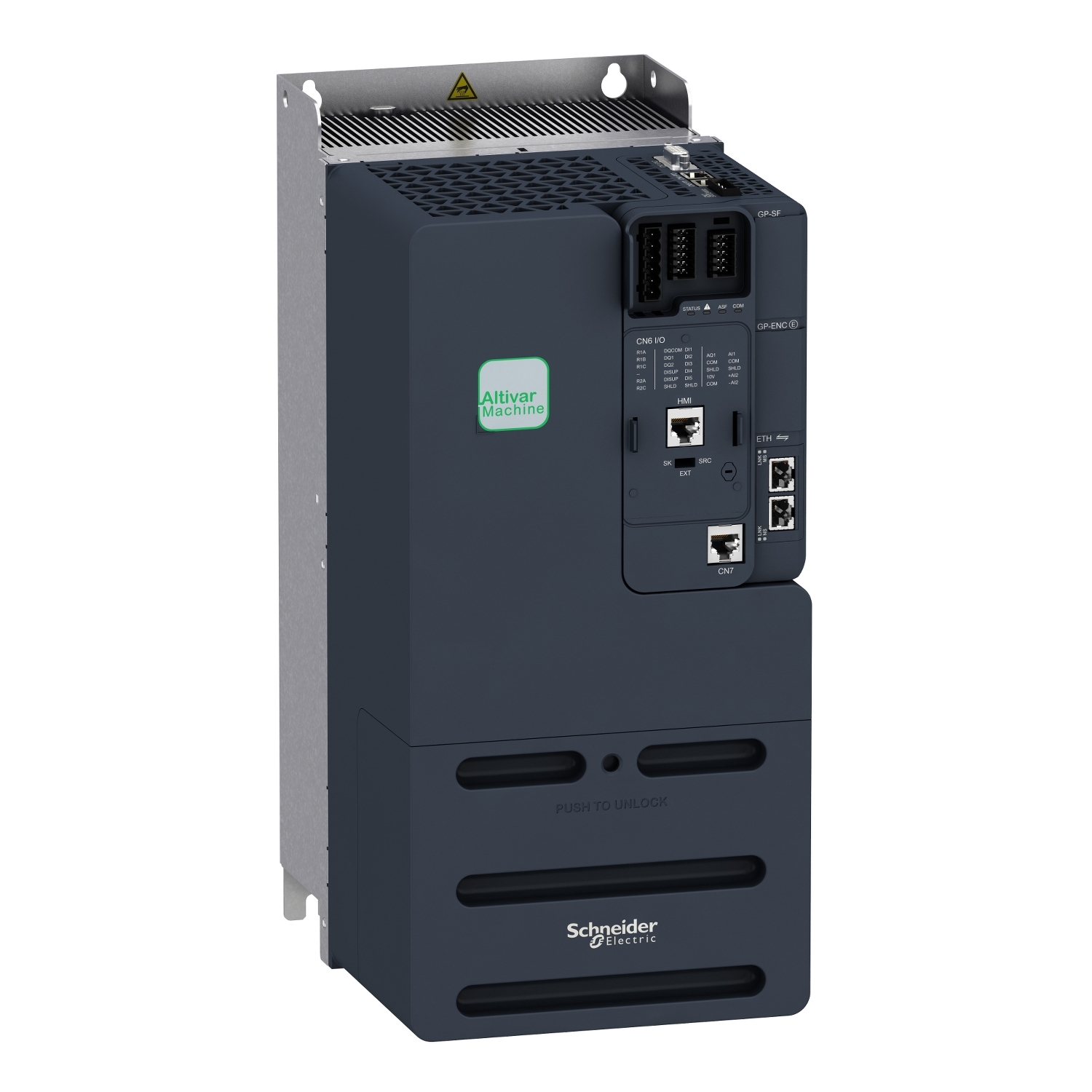

Schneider ATV340D22N4 | Variable speed drive, Altivar Machine ATV340, 22 kW, 400 V, 3 phases,

Schneider ATV340D22N4 | Variable speed drive, Altivar Machine ATV340, 22 kW, 400 V, 3 phases,



Technical Specifications

• Brand: Schneider Electric
• Model: Altivar Machine ATV340
• Product Number: ATV340D22N4
• Type: Variable Speed Drive (VSD)
• Power Rating: 22 kW (30 HP)
• Voltage: 400V AC (Three-Phase)
• Control Method: Sensorless Vector Control, Closed-Loop Control
• Communication Protocols: Modbus, Ethernet/IP, CANopen, Profibus (optional modules available)
• Operating Temperature: -10°C to +50°C
• Ingress Protection: IP20
• Mounting Type: Panel or Cabinet Mount

Key Features

Advanced Motor Control

• Supports sensorless vector control (SVC) and closed-loop control for precise speed and torque regulation.
• High-speed response time (less than 2 ms) ensures smooth motor operation.

Optimized for Industrial Applications

• Designed for heavy-duty machinery, including conveyors, pumps, fans, and CNC machines.
• Can handle high dynamic loads with superior motor control.

Smart Connectivity & Integration

• Compatible with multiple industrial communication protocols, making it easy to integrate with PLCs and automation systems.
• Supports Ethernet/IP, Modbus TCP, CANopen, and Profibus.

Energy Efficiency

• Reduces energy consumption by optimizing motor speed according to load requirements.
• Helps lower operational costs and improve overall efficiency.

Robust & Durable Design

• Operates reliably in harsh industrial environments, with IP20 protection for electrical safety.
• Designed to withstand mechanical shocks and vibrations, ensuring long-lasting performance.

Applications

The ATV340D22N4 is ideal for various industrial applications, including:
Conveyor Systems – Smooth speed variation for material handling.
Pumps & Fans – Energy-saving control for HVAC and fluid management.
CNC Machines – Precise motion control for manufacturing.
Packaging & Textile Machines – Enhances automation and efficiency.
Hoists & Cranes – High-torque applications requiring fast response.
