Description

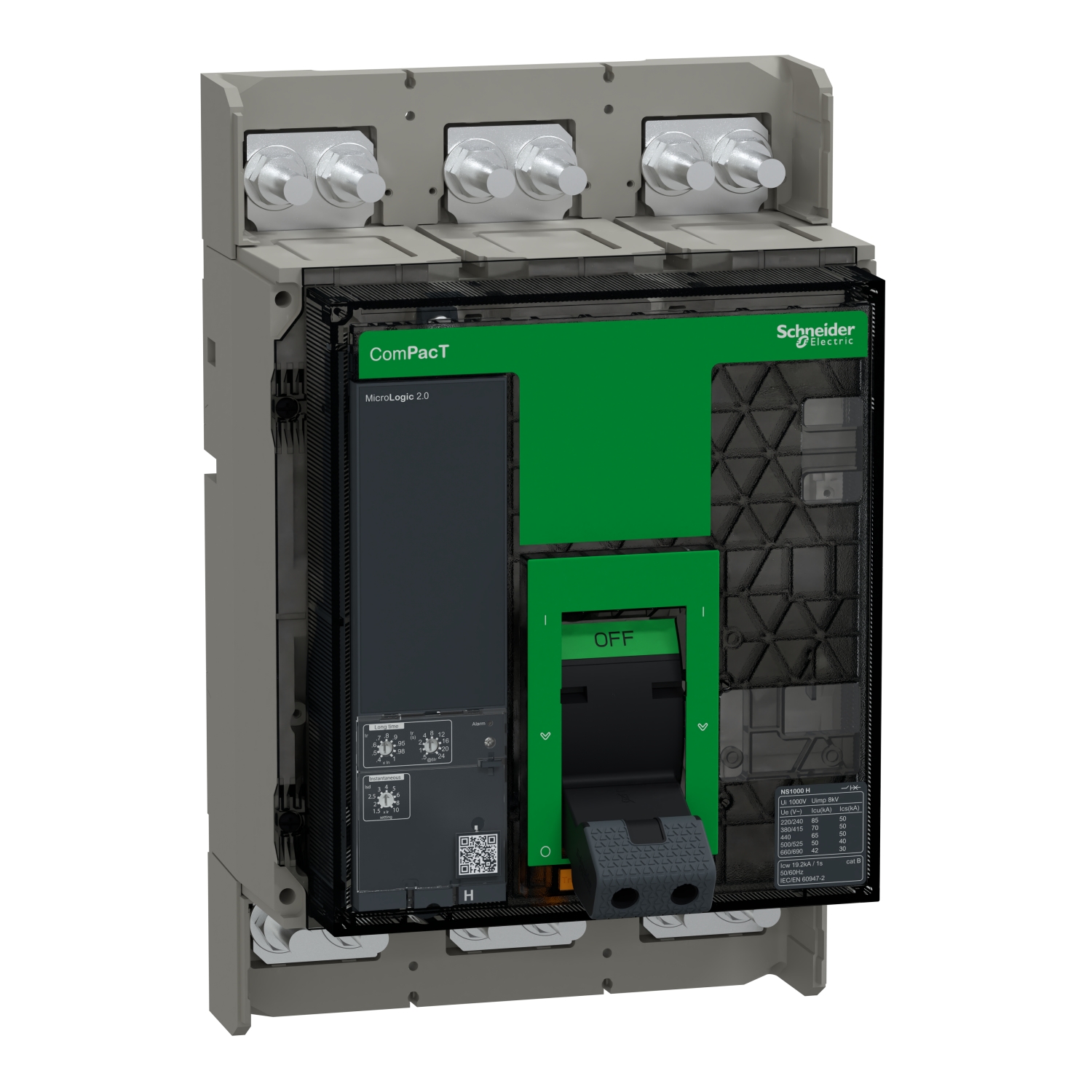

Schneider C100H320FM | Circuit breaker, ComPacT NS1000H, 70kA at 415VAC, 3P, fixed, manually operated, MicroLogic 2.0 control unit, 1000A

The Schneider Electric C100H320FM is a high-performance circuit breaker from the ComPacT NS1000H series. It is designed to handle demanding applications with a breaking capacity of 70kA at 415VAC, providing robust protection for electrical circuits in industrial and commercial settings. This circuit breaker features a 1000A rated current and operates at 690VAC with 50/60Hz frequency, making it versatile for various electrical configurations.

Key Specifications of Schneider C100H320FM

• Current Rating: 1000A
• Number of Poles: 3 Poles
• Breaking Capacity: 70kA at 415VAC
• Control Unit: MicroLogic 2.0, providing adjustable protection settings for overcurrent and short circuits, compliant with ANSI 49/50 codes.
• Installation Type: Fixed, ensuring durability and stability.
• Manual Operation: Can be manually operated with ON, OFF, or “push to trip” buttons.

Features:

• MicroLogic 2.0 Protection Unit: Allows flexible adjustment of protection settings for both long-time and instantaneous faults.
• Eco-friendly Design: The ComPacT NS1000H breaker comes with green packaging and supports sustainability initiatives by Schneider Electric.
• Compact and Space-efficient: Designed for ease of integration into electrical panels, maximizing available space.

This breaker is ideal for medium to large-scale applications requiring high-performance protection against short circuits and overcurrent. It complies with IEC 60947-1 and IEC 60947-2 international standards for circuit breakers.
