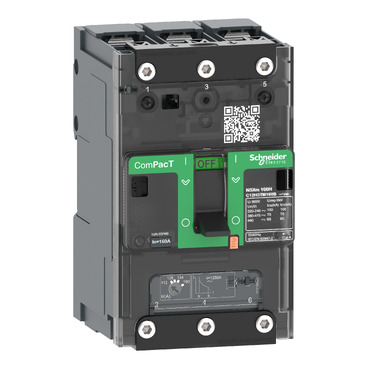

Schneider C11B3TM040B | Circuit breaker, ComPacT NSXm 63B, 25kA/415VAC, 3 poles, TMD trip unit 40A



Schneider C11B3TM040B Description

The Schneider C11B3TM040B is a specific model of a circuit breaker from Schneider Electric, designed for protecting electrical circuits. Here’s a detailed description:

Model: C11B3TM040B

Type: Circuit Breaker

Specifications:

• Rated Current: 40A
• Voltage Rating: Typically up to 690V AC
• Breaking Capacity: Standard breaking capacity suitable for industrial and commercial applications
• Trip Unit: Thermal-magnetic trip unit for comprehensive protection
• Frame Size: Compact frame for efficient space utilization
• Mounting Type: Designed for DIN rail or panel mounting

Features:

• Protection: Provides reliable protection for electrical circuits and equipment against overloads and short circuits.
• Thermal-Magnetic Trip Unit: Offers dual protection with thermal protection for overloads and magnetic protection for short circuits.
• Compact Design: Easy to install in control panels and distribution boards, making it suitable for space-constrained applications.
• Durability: High-quality construction ensures long-term reliability and performance.
• Compliance: Adheres to international standards for electrical safety and performance, ensuring dependable operation.

Applications:

• Industrial Machinery: Suitable for protecting motors and other industrial machinery from electrical faults.
• Commercial Installations: Ideal for use in commercial buildings to ensure safe and reliable circuit protection.
• Motor Protection: Provides effective protection for motors against both overloads and short circuits.
• Power Distribution Panels: Can be used in power distribution panels to safeguard electrical circuits.
• HVAC Systems: Ensures safe operation of heating, ventilation, and air conditioning systems.

The Schneider C11B3TM040B circuit breaker is engineered to deliver efficient and reliable protection for a wide range of industrial and commercial electrical applications. Its thermal-magnetic trip unit ensures comprehensive protection, enhancing the safety, longevity, and performance of electrical systems and equipment.
