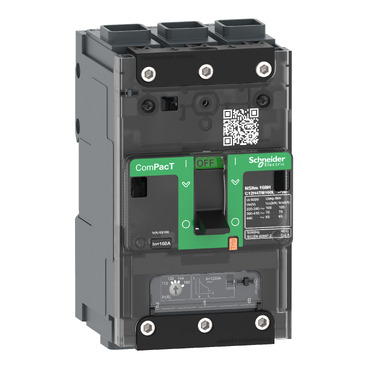

Schneider C12E3TM125L | Circuit breaker, ComPacT NSXm 160E, 16kA/415VAC, 3 poles, TMD trip unit 125A, EverLink lugs

Schneider C12E3TM125L | Circuit breaker, ComPacT NSXm 160E, 16kA/415VAC, 3 poles, TMD trip unit 125A, EverLink lugs

Specifications C12E3TM125L

• Product Name: Schneider ComPacT NSXm 160E Circuit Breaker

• Reference Code: C12E3TM125L

• Type: Molded Case Circuit Breaker (MCCB)

• Rated Current: 125 A

• Poles: 3-pole (3P)

• Breaking Capacity: 16 kA at 415 VAC

• Trip Unit Type: TMD (Thermal Magnetic Trip Unit)

• Voltage Rating: Up to 415 VAC

• Terminal Type: EverLink terminals for secure and durable connections

• Mounting: Panel-mounted or inside distribution boards

• Protection Degree: IP40 (when installed inside a suitable enclosure)

• Standards Compliance: IEC 60947-2

Features

• Compact design that saves space in distribution boards

• Built-in TMD trip unit provides reliable thermal and magnetic protection against overloads and short circuits

• EverLink lug technology ensures consistent clamping force and prevents loosening over time

• Easy to install and maintain, with optional accessories like auxiliary contacts or monitoring modules

• High durability and performance even in demanding industrial and commercial environments

• Designed for both standard and high-performance applications

• Environmentally friendly construction with long service life

Applications

• Suitable for main and sub-main distribution boards in residential, commercial, and industrial buildings

• Provides effective circuit protection for lighting, HVAC systems, and general power outlets

• Commonly used in factories, shopping malls, schools, hospitals, and office complexes

• Ideal for motor protection and equipment requiring reliable overload and short circuit protection

• Applicable in renewable energy systems, including solar installations
