Schneider C12E44V160L | Circuit breaker, ComPacT NSXm 160E, 16kA/415VAC, 4 poles, MicroLogic 4.1 trip unit 160A, EverLink lugs

Schneider C12E44V160L | Circuit breaker, ComPacT NSXm 160E, 16kA/415VAC, 4 poles, MicroLogic 4.1 trip unit 160A, EverLink lugs

Specifications

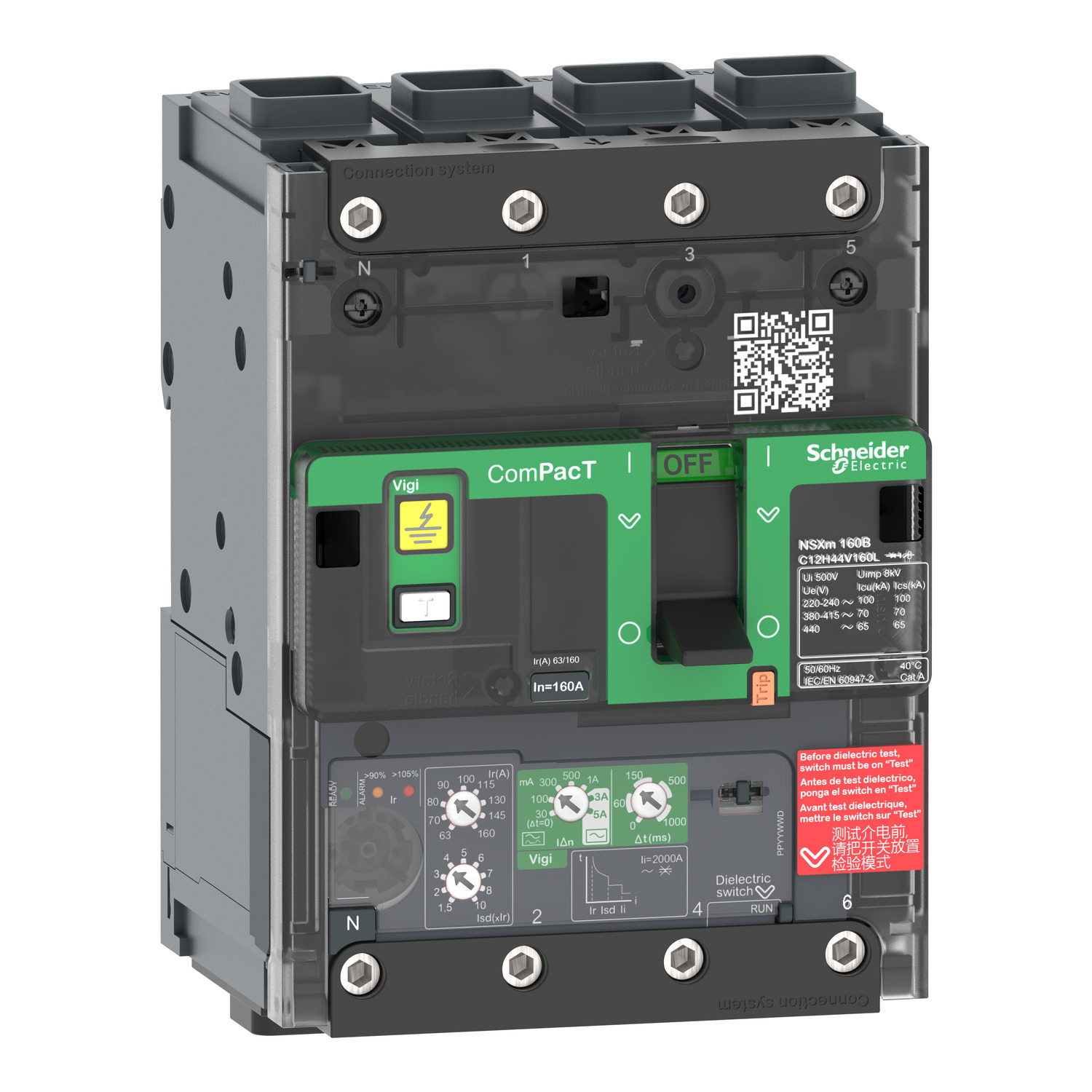

The Schneider C12E44V160L is a 4-pole molded case circuit breaker (MCCB) from the ComPacT NSXm E range. It is designed for low-voltage applications and offers reliable protection with electronic precision.

• Product reference: C12E44V160L

• Rated current: 160A

• Number of poles: 4 poles (3 phases + neutral)

• Breaking capacity: 16kA at 415VAC (according to IEC 60947-2)

• Voltage rating: Up to 415V AC, 50/60 Hz

• Trip unit type: MicroLogic 4.1 electronic trip unit

• Protection functions: Long-time (L), Short-time (S), Instantaneous (I)

• Mounting: Fixed, panel-mounted

• Terminal connection: EverLink lugs

• Standards: IEC 60947-2 compliant, CE marked

• Range: ComPacT NSXm E

Features

This circuit breaker is equipped with advanced electronic protection, compact design, and smart connection technologies that enhance safety, performance, and ease of use.

• The MicroLogic 4.1 electronic trip unit provides accurate and adjustable protection settings for overload and short-circuit conditions. It ensures coordination and selectivity in complex electrical systems.

• The 4-pole configuration protects all three phases and the neutral, making it suitable for systems with unbalanced loads or where neutral safety is essential.

• EverLink lugs offer secure and stable terminal connections that compensate for conductor creep and thermal cycling, reducing maintenance needs and improving installation reliability.

• The compact body design allows for space-saving installations in switchboards and control panels, while still offering full protection and connectivity.

• Designed to support integration with Schneider’s auxiliary accessories such as auxiliary contacts, shunt trip, under-voltage release, and motorized mechanisms.

• The MicroLogic 4.1 unit also enables digital readiness and supports energy monitoring, remote diagnostics, and communication in smart panel configurations.

Applications

The C12E44V160L is ideal for a wide variety of demanding electrical distribution environments, both commercial and industrial.

• Used in commercial buildings, hospitals, offices, and data centers as a main or sub-main breaker providing complete phase and neutral protection.

• Suitable for industrial facilities and manufacturing plants where accurate fault protection, durability, and terminal reliability are critical.

• Highly recommended for renewable energy systems such as solar PV installations and backup power systems, especially where load monitoring and smart distribution are needed.

• Installed in public infrastructure projects including schools, airports, transportation hubs, and government buildings where high reliability and safety compliance are required.

• Well-suited for smart buildings and energy-efficient installations where monitoring, integration, and space optimization are key priorities.
