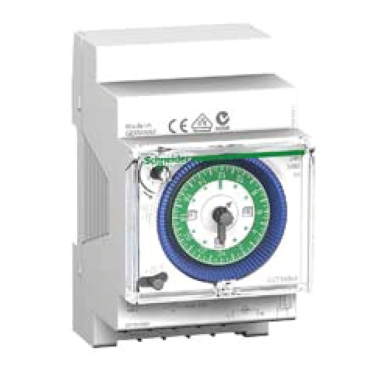

Schneider CCT16364 | Acti 9 – IH – mechanical time switch – 24 h – without memory

Schneider CCT16364 | Acti 9 – IH – mechanical time switch – 24 h – without memory

1. Technical Specifications CCT16364

• Product Reference: CCT16364

• Series: Acti9 IH

• Product Type: Mechanical time switch

• Time Range: 24-hour cycle

• Programming Type: Mechanical, daily repeat cycle

• Minimum Switching Interval: 15 minutes

• Switching Capacity:

  • Resistive Load: Up to 16 A at 250 V AC

  • Inductive Load (cos φ = 0.6): Up to 10 A

• Output Contact Configuration: SPDT (Single Pole Double Throw) – 1 changeover contact

• Operating Voltage: 230 V AC ±10%

• Frequency: 50/60 Hz

• Power Consumption: ~1 VA

• Backup Battery / Memory: None (settings lost if power fails)

• Mounting Type: DIN rail, 1 module wide (18 mm)

• Connection Terminals: Screw clamp terminals

• Degree of Protection:

  • IP20 (front face when mounted in enclosure)

• Ambient Operating Temperature: –10°C to +55°C

• Standards Compliance:

  • IEC 60730-1

  • IEC 60730-2-7

  • CE marked, RoHS compliant

• Mechanical Durability: Over 100,000 operations

• Programming Mechanism: Dial with 96 switching segments (15-minute steps)

• Manual Override: Yes (ON/AUTO/OFF selector)

2. Key Features CCT16364

• Mechanical 24-hour timer for simple, daily recurring operations

• No memory backup, so programming resets if power is lost

• Easy programming with rotary dial and push-in segments

• Allows automatic switching on and off of circuits every day

• Compact 1-module width fits neatly in DIN rail enclosures

• Manual override switch allows instant control when needed

• Suitable for resistive and inductive loads (lighting, small motors, etc.)

• Maintenance-free design, long life, no software or programming required

• Fully compatible with Acti9 modular panels and standard DIN systems

3. Applications

• Ideal for residential, commercial, or light industrial use

• Commonly used for controlling:

  • Outdoor or indoor lighting systems

  • Water heaters

  • Ventilation or exhaust fans

  • Irrigation pumps

  • Signboards and display lighting

• Perfect for applications needing daily on/off cycles without complex automation

• Used where reliable, low-cost timing control is required without dependence on digital programming
