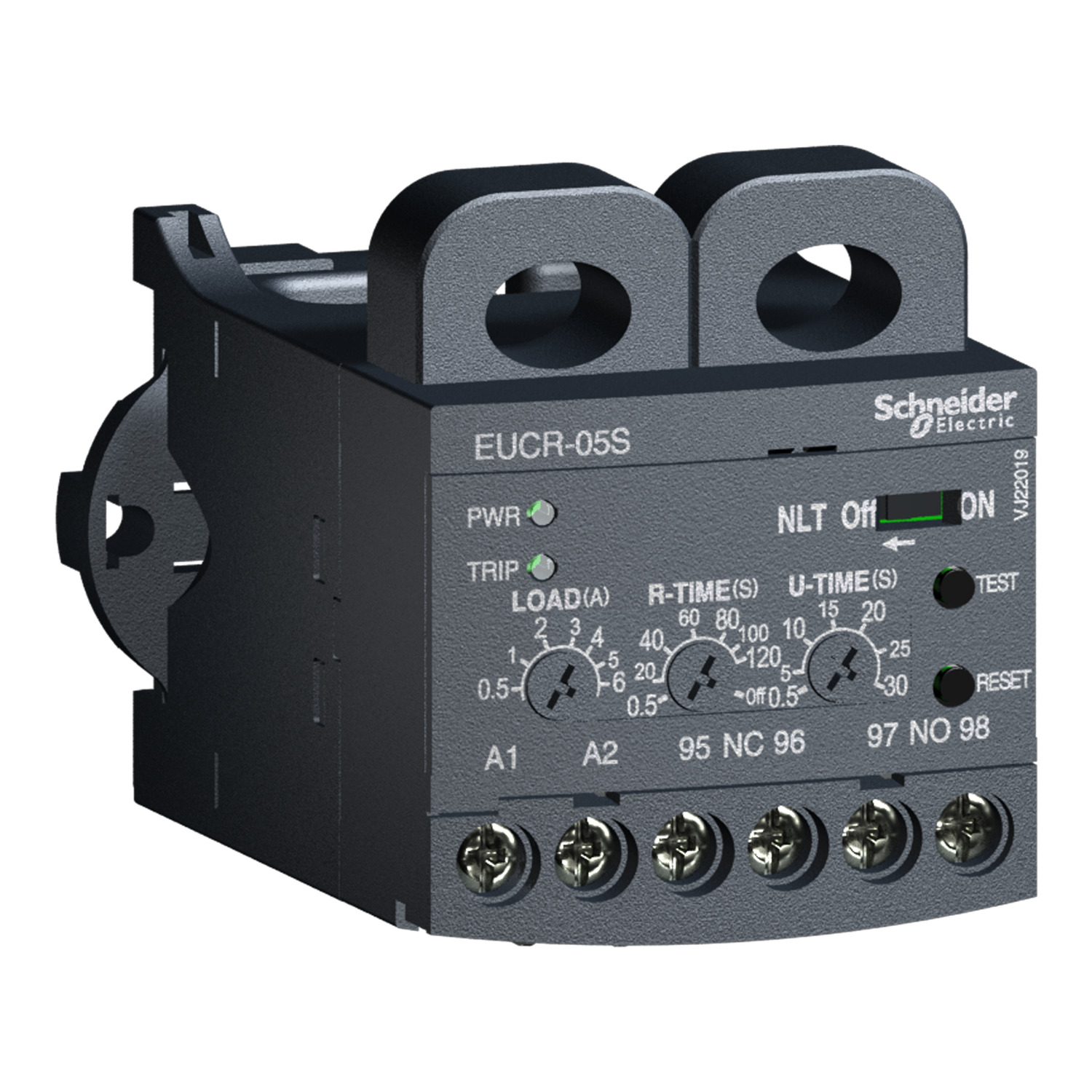

Schneider EUCR-05S | Electronic undercurrent relay, EOCR Digital, 0.5 to 6A, 24 to 240VAC/DC, Standard

1. Technical Specifications

• Model: EUCR-05S (EOCR Digital)
• Type: Electronic Undercurrent Relay
• Current Range: 0.5A – 6A
• Operating Voltage: 24 – 240V AC/DC
• Trip Function: Protects against undercurrent and phase loss
• Mounting Type: DIN Rail or Panel Mount
• Response Time: Adjustable trip delay for precision protection
• Standards Compliance: IEC & UL certified

2. Features:

Advanced Protection: Detects undercurrent conditions and prevents damage to motors and equipment.
Wide Voltage Range: Operates with both AC and DC supplies (24-240V).
Digital Precision: Ensures accurate and reliable monitoring.
Adjustable Settings: Allows fine-tuning of trip delay and sensitivity.
Compact & Easy to Install: Designed for quick DIN rail or panel mounting.
Enhanced Safety: Prevents motor burnouts and system failures due to phase loss.

3. Applications:

Industrial Motor Protection: Prevents damage due to low current conditions.
Pumps & Compressors: Ensures proper operation and prevents dry running.
HVAC Systems: Protects fans and blowers from undercurrent faults.
Automation & Control Panels: Ensures smooth functioning of critical processes.

4. Why Choose Schneider EUCR-05S?

• Reliable Performance: Manufactured by Schneider Electric, a global leader in electrical protection.
• Versatile & Flexible: Supports multiple voltage inputs and a wide current range.
• Digital Accuracy: Provides precise detection of undercurrent issues.
• Easy Installation & Configuration: Reduces downtime and simplifies maintenance.
