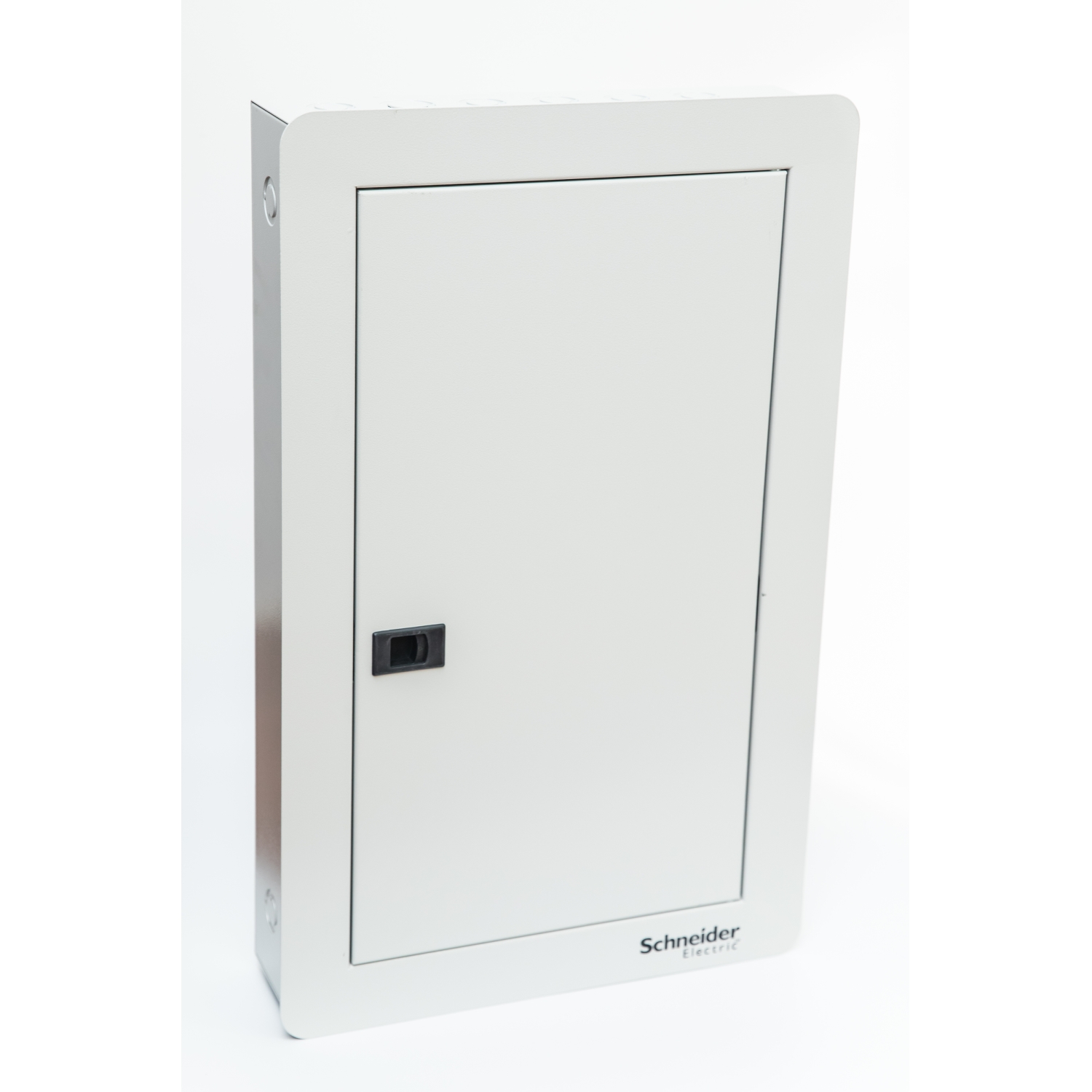

1. Technical Specifications EZ9EROW412

• Product Reference: EZ9EROW412

• Series: Easy9

• Product Type: Low-voltage distribution board

• Mounting Type: Surface-mounted

• Orientation: Horizontal

• Number of Rows: 4

• Total Number of Ways: 48

  • 12 ways per row × 4 rows

• Modular Device Size: 18 mm DIN rail modules

• Material: Powder-coated sheet metal (steel)

• Color: White (RAL 9003 or equivalent)

• Enclosure Type:

  • Door: Hinged front cover (metal), may support padlocking

  • With removable front faceplate

• IP Rating: IP30 (suitable for indoor installations only)

• Rated Insulation Voltage (Ui): 500 V

• Rated Operational Voltage: 230/400 V AC

• Frequency: 50/60 Hz

• Earth and Neutral Terminals: Included, pre-installed

• Busbar and DIN Rails: Supplied with the unit

• Knockouts: Top, bottom, and sides for cable entry

• Conformity & Standards:

  • IEC 61439-3 (Assembly standard)

  • RoHS compliant

  • CE certified

• Fire Resistance: Flame-retardant, halogen-free

• Operating Temperature Range: –5°C to +60°C

• Typical Dimensions (approx.):

  • Width: ~500 mm

  • Height: ~650 mm

  • Depth: ~100 mm
    (May vary slightly by version or accessory configuration)

2. Key Features EZ9EROW412

• Accommodates up to 48 single-pole modular devices in a structured 4-row layout

• Designed for neat and safe distribution of power in residential and light commercial applications

• Durable metal construction ensures mechanical robustness and long service life

• Spacious interior allows for easy wiring, routing, and accessibility for maintenance

• Modular design supports integration of MCBs, RCCBs, RCBOs, surge protectors, timers, and other Easy9 devices

• Supplied complete with:

  • DIN rails

  • Earth & neutral bars

  • Busbars (phase distribution, if included)

  • Labeling strips

• Clear labeling space and door for easy identification of circuits

• Front door adds protection and aesthetics, while keeping devices accessible

• Complies with international safety and performance standards

• Optimized for fast installation and configuration flexibility

3. Applications

• Ideal for use in:

  • Residential buildings (large homes, villas, apartments)

  • Commercial spaces (shops, showrooms, clinics, offices)

  • Light industrial environments

• Serves as a main or sub-distribution panel for managing lighting, power sockets, air conditioning units, and general circuits

• Suitable for final distribution of electricity in low-voltage electrical networks

• Commonly installed in electrical closets, corridors, or service rooms

• Enables centralized circuit protection and safe power distribution in multi-circuit systems
