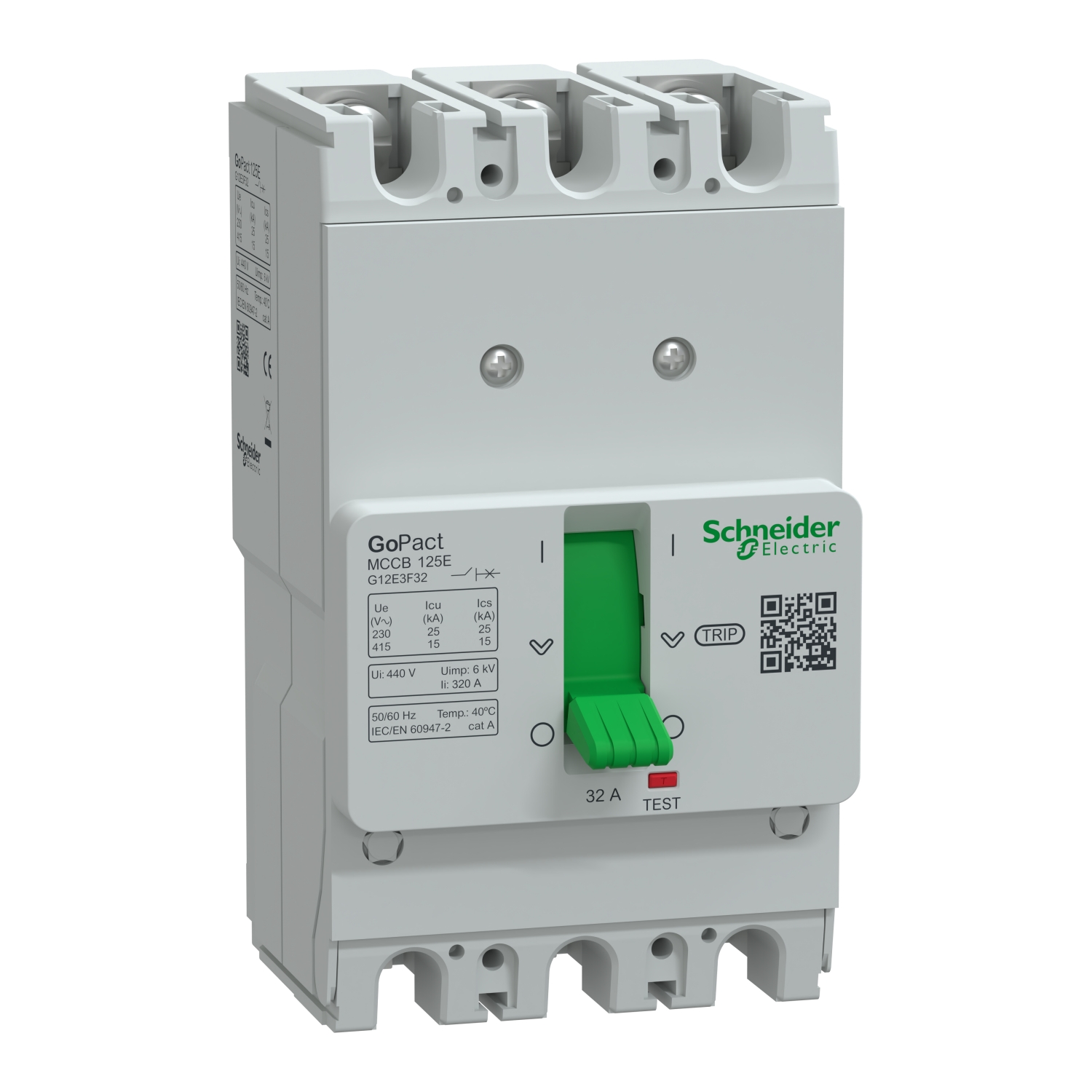

Schneider G12E3F32 |Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 32A rating, TMD trip unit, fixed thermal protection

Schneider G12E3F32 |Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 32A rating, TMD trip unit, fixed thermal protection



1. 1. Technical Specifications G12E3F32

      • Product Name: Schneider Electric G12E3F32

      • Product Type: Molded Case Circuit Breaker (MCCB)

      • Series: GoPact MCCB 125

      • Number of Poles: 3 poles

      • Rated Current (In): 32 Amps

      • Frame Size: 125 A

      • Rated Operational Voltage (Ue): Up to 415 VAC

      • Breaking Capacity (Icu): 15 kA at 415 VAC

      • Trip Unit Type: TMD (Thermal Magnetic Trip Unit)

      • Thermal Trip: Fixed – set protection against overloads

      • Magnetic Trip: Fixed – rapid response to short-circuits

      • Frequency: 50/60 Hz

      • Mounting Type: Fixed mounting (panel-integrated)

      • Standards Compliance: IEC 60947-2

      • Utilization Category: AC-22A — suitable for resistive and inductive loads

      Key Features G12E3F32

      • Reliable Circuit Protection at 32A
        Provides dependable overload and short-circuit protection for electrical systems with a 32A current requirement.

      • Fixed Thermal and Magnetic Protection
        Simplified protection setup with predefined settings—ideal for applications with known, consistent load characteristics.

      • Efficient and Economical
        Offers essential circuit protection with Schneider Electric quality at a cost-effective price point.

      • Compact and Durable Design
        Space-efficient breaker with rugged construction suitable for commercial and light industrial applications.

      • Quick Fault Isolation
        The fixed magnetic trip ensures immediate circuit disconnection during fault conditions, reducing system downtime and risk.

      • Easy Panel Integration
        Standard form factor and terminal layout enable quick installation in control panels or distribution boards.

      Applications

      • Commercial Electrical Distribution
        Ideal for protecting lighting circuits, wall sockets, and AC units in offices, retail stores, and hospitality facilities.

      • Industrial Control Panels
        Used in auxiliary control circuits, small motor loads, and machine interfaces that require fixed 32A protection.

      • Backup and Emergency Power Systems
        Ensures reliable protection for circuits connected to UPS systems or generators operating at 32A.

      • Data & Communication Systems
        Provides protection for low-to-medium load distribution circuits in IT rooms and network installations.

      • Renewable Energy Installations
        Can be used in fixed-load sections of solar PV or wind power systems requiring basic 32A protection.

      • Institutional and Public Facilities
        Deployed in schools, government buildings, and hospitals for safe, fixed-rated circuit protection.
