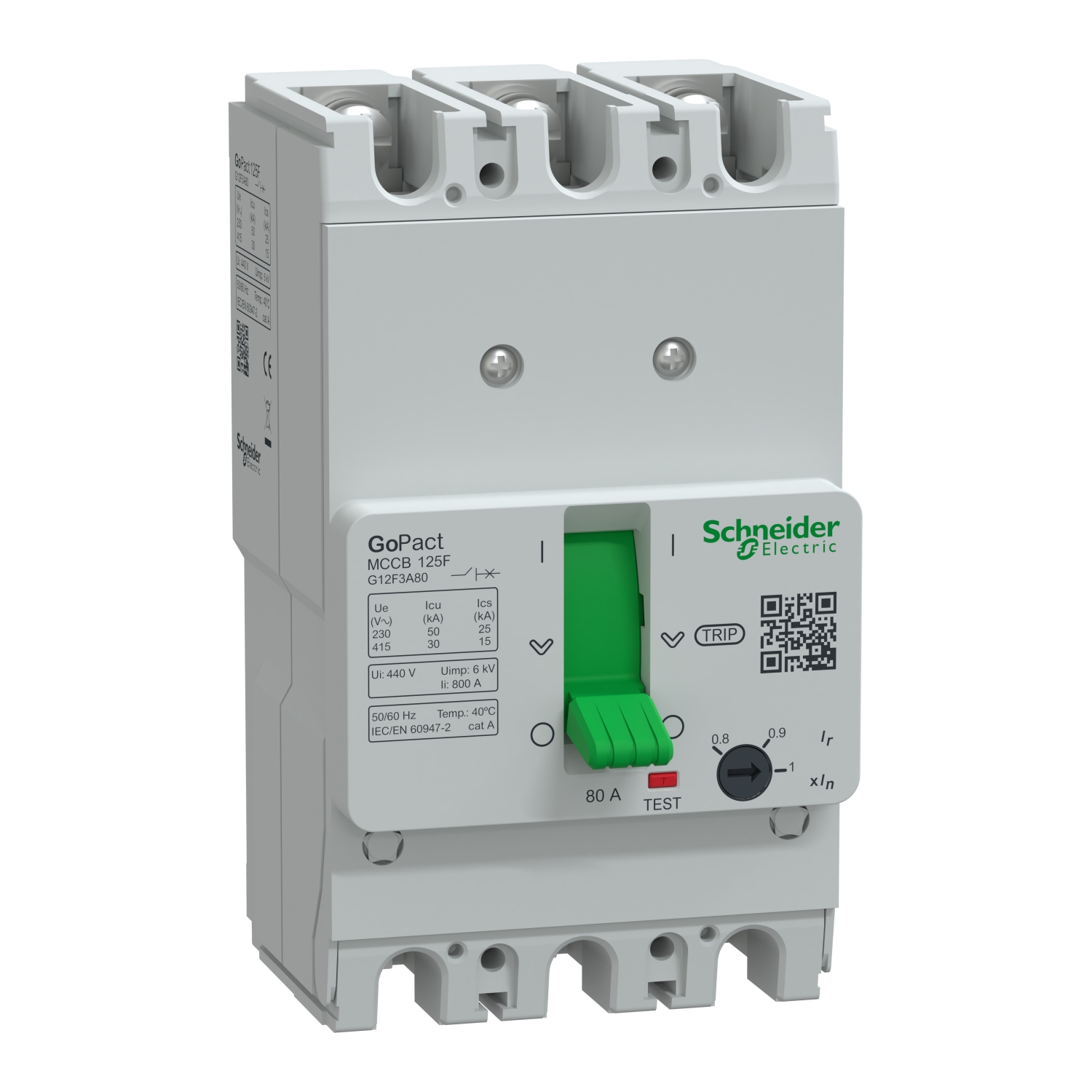

Technical Specifications G12F3A80

• Product Name: Schneider Electric G12F3A80

• Product Type: Molded Case Circuit Breaker (MCCB)

• Series: GoPact MCCB 125

• Number of Poles: 3 poles

• Rated Current (In): 80 Amps

• Frame Size: 125 A

• Rated Operational Voltage (Ue): Up to 415 VAC

• Breaking Capacity (Icu): 30 kA at 415 VAC

• Trip Unit Type: TMD (Thermal Magnetic Trip Unit)

• Thermal Protection: Adjustable — overload setting can be fine-tuned

• Magnetic Protection: Fixed — fast action against short-circuit faults

• Frequency: 50/60 Hz

• Mounting Style: Fixed mounting in panelboards or switchgear

• Compliance: IEC 60947-2

• Utilization Category: AC-22A (resistive and inductive loads)

Key Features G12F3A80

• Robust 80A Circuit Protection
  Designed to handle moderate-to-high current circuits with high reliability, ideal for commercial and industrial applications.

• High Breaking Capacity (30 kA)
  Effectively interrupts high fault currents, ensuring protection of both personnel and equipment during short-circuit conditions.

• Adjustable Thermal Trip
  Allows for tailored overload protection settings, enabling precise coordination with other circuit protection devices.

• Fixed Magnetic Trip Function
  Provides instant response to short-circuit faults, minimizing damage and downtime.

• Compact and Standardized Design
  Facilitates easy integration into standard panels with front terminal access and compact housing.

• Long Operational Life and Reliability
  Built using durable materials to withstand demanding environments and continuous operation.

Applications

• Commercial Electrical Panels
  Provides overload and short-circuit protection for lighting, HVAC systems, and socket circuits in office buildings, malls, and public facilities.

• Industrial Electrical Systems
  Protects distribution circuits powering machinery, pumps, compressors, and automation equipment.

• Renewable Energy Installations
  Suitable for solar PV systems, battery energy storage circuits, and inverter protection.

• Critical Infrastructure Facilities
  Ideal for circuits supporting essential equipment in data centers, hospitals, airports, and telecom networks.

• Backup Power and Generator Panels
  Safeguards power circuits fed from standby generators or UPS systems with 80A rating requirements.

• OEM Panels and Custom Control Cabinets
  A reliable solution for panel builders and OEMs designing medium-current control and distribution panels.
