Description

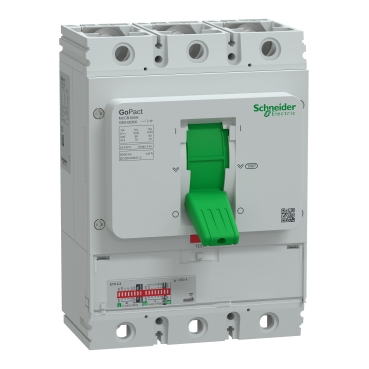

Schneider G80H3E800 | Circuit breaker, GoPact MCCB 800, 3 poles, 70kA at 415VAC, 800A rating, ETU trip unit, adjustable thermal protection

Technical Specifications G80H3E800

• Type: Molded Case Circuit Breaker (MCCB), GoPact series.

• Number of Poles: 3 poles.

• Rated Current: 800 Amperes.

• Breaking Capacity: 70 kiloamperes (kA) at 415 Volts AC.

• Trip Unit: ETU (Electronic Trip Unit) providing precise and advanced protection.

• Adjustable Thermal Protection: Thermal protection settings can be adjusted to suit specific application needs.

• Rated Voltage: Suitable for operation at 415 VAC.

• Durability: Designed to operate reliably under demanding industrial conditions.

Key Features G80H3E800

• Advanced Multi-level Protection: Equipped with an ETU electronic trip unit for accurate protection against overload, short circuit, and phase failure conditions.

• Adjustable Thermal Settings: Allows customization of thermal trip parameters to match different electrical load requirements.

• High Breaking Capacity: Capable of interrupting fault currents up to 70kA, providing strong protection against severe electrical faults.

• Rugged and Durable Construction: Built from high-quality materials to ensure longevity and reliable operation in harsh environments.

• Easy Installation and Maintenance: Designed for quick setup and simple access to the trip unit for easy maintenance or setting adjustments.

• Compatibility with Modern Systems: Integrates well with contemporary electrical protection and control systems.

Applications

• Industrial Electrical Panels: Suitable for protecting electrical circuits in large-scale industrial plants and manufacturing facilities.

• Electrical Distribution Systems: Used in medium and low voltage distribution boards requiring high reliability.

• Commercial and Institutional Buildings: Provides secure protection for electrical installations in office buildings, hospitals, and other large facilities.

• Large-scale Engineering Projects: Ideal for projects requiring robust and adjustable circuit protection solutions.

• Protection for Transformers and Motors: Safeguards critical electrical equipment like transformers and motors from damage due to overloads or short circuits.

• Settings Flexibility for Variable Loads: Appropriate for applications where load conditions vary and adjustable protection is necessary.
