Description

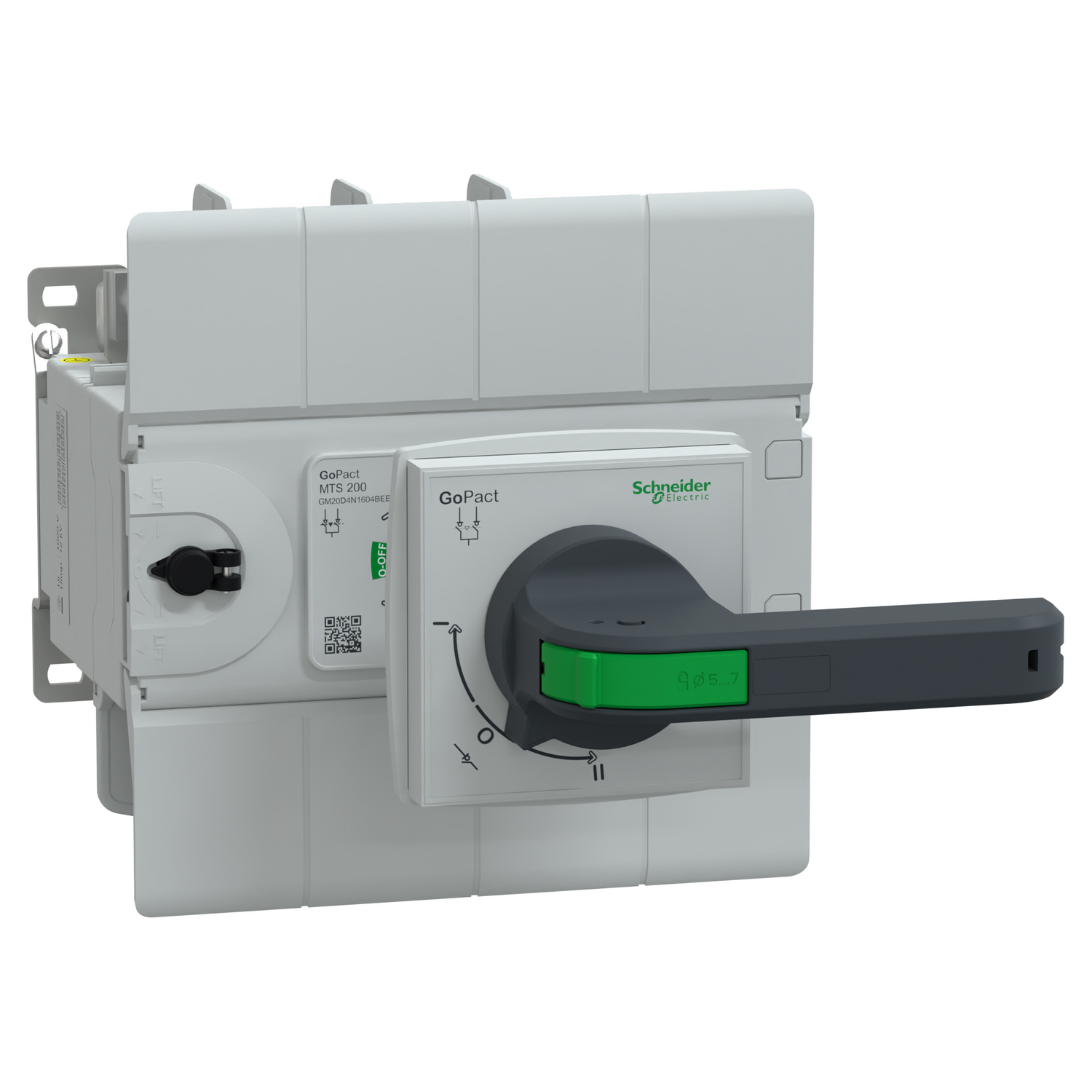

Schneider GM20D4N1604BEE | Manual transfer switch, GoPact MTS 200, 4 poles, 160A, 415VAC 50/60Hz, extended rotary handle, open transition

Technical Specifications

• Product Type: Manual Transfer Switch (MTS)

• Series: GoPact MTS 200

• Model: GM20D4N1604BEE

• Number of Poles: 4 (3-phase + neutral)

• Rated Current: 160 Amps

• Rated Voltage: 415 VAC

• Frequency: 50/60 Hz

• Operation Mode: Manual

• Switching Type: Open transition (break-before-make)

• Handle Type: Extended rotary handle for external operation

• Mounting: Panel or enclosure installation

• Compliance: IEC 60947-6-1

Key Features

• Open Transition Switching
  Prevents any overlap between power sources during switching, ensuring full isolation and system safety.

• 4-Pole Design
  Allows complete disconnection, including neutral, which is important for balanced three-phase systems.

• Extended Rotary Handle
  Ensures user-friendly operation, especially when the switch is enclosed in a cabinet or mounted panel.

• Visible Source Selection
  Clear indication of the selected source (position I – 0 – II) improves control and minimizes risk of operator error.

• Rugged and Durable
  Designed with high-grade materials to withstand heavy-duty usage in industrial and commercial environments.

Applications

• Commercial Buildings: Offices, shopping centers, and institutions requiring a safe manual switch between utility and backup power.

• Industrial Facilities: Manufacturing units, factories, and workshops where dependable load transfer is essential.

• Backup Power Systems: Perfect for switching loads between the grid and generators in standby power systems.

• Remote Installations: Reliable and economical for areas where automatic switching is not necessary or feasible.
