Description

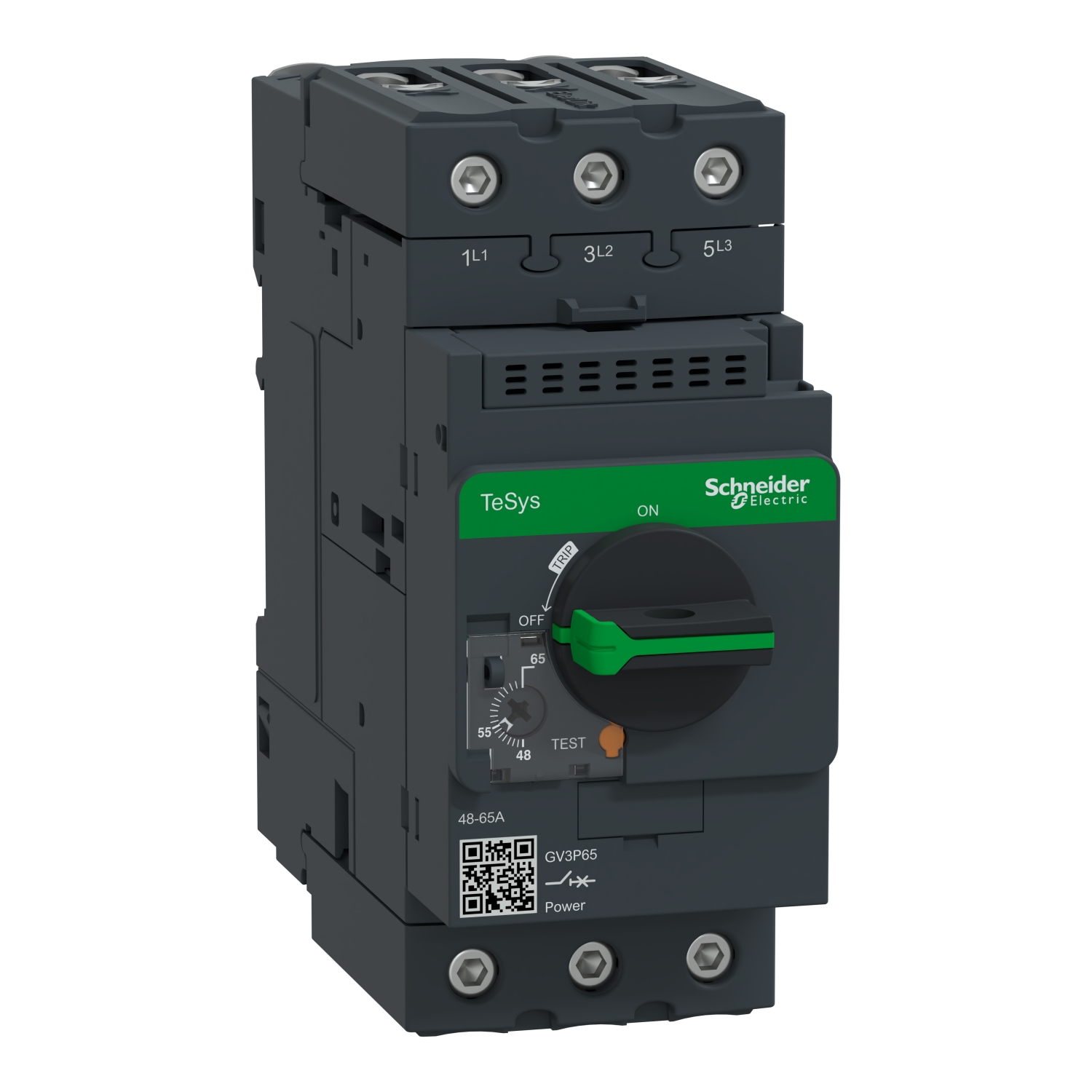

Schneider GV3P65 | Motor circuit breaker, TeSys GV3, 3P, 48-65 A, thermal magnetic, EverLink terminals

Key Specifications:

• Current Range: 48A to 65A, suitable for medium to large motors.
• Voltage Rating: Up to 690V AC.
• Protection Type: Thermal-magnetic protection, which combines both thermal overload and magnetic short circuit protection.
• Adjustable Thermal Setting: Allows fine-tuning of the overload protection to suit different motor types and sizes.
• Rated Power: Handles up to 75 kW at 400V for three-phase motors.
• Enclosure Protection: IP20, ensuring basic protection against contact with internal components and dust ingress.

Key Features:

1. Thermal-Magnetic Protection: Provides comprehensive protection for motors against both overloads (due to excessive current) and short circuits (due to faults in the system).
2. Manual Isolation and Control: The GV3P65 allows for manual switching and disconnection of the motor from the electrical supply, enhancing safety during maintenance.
3. Compact and Robust Design: Its space-efficient, durable design is suited for various industrial environments, even in harsh conditions.
4. User-Friendly Operation: Easy-to-use rotary knob for simple setting adjustments and reliable operation.
5. High Durability: Rated for long-term performance with a high mechanical endurance, ideal for continuous industrial applications.

Applications:

• Industrial Machinery: Commonly used in controlling and protecting motors for machines that require regular and reliable operation.
• Pumps: Ideal for pump systems that require protection against electrical faults and overload conditions.
• Conveyors and Automation Systems: Provides motor protection in automated material handling systems.
• HVAC Systems: Suitable for motor-driven HVAC equipment where motor protection and control are critical.
