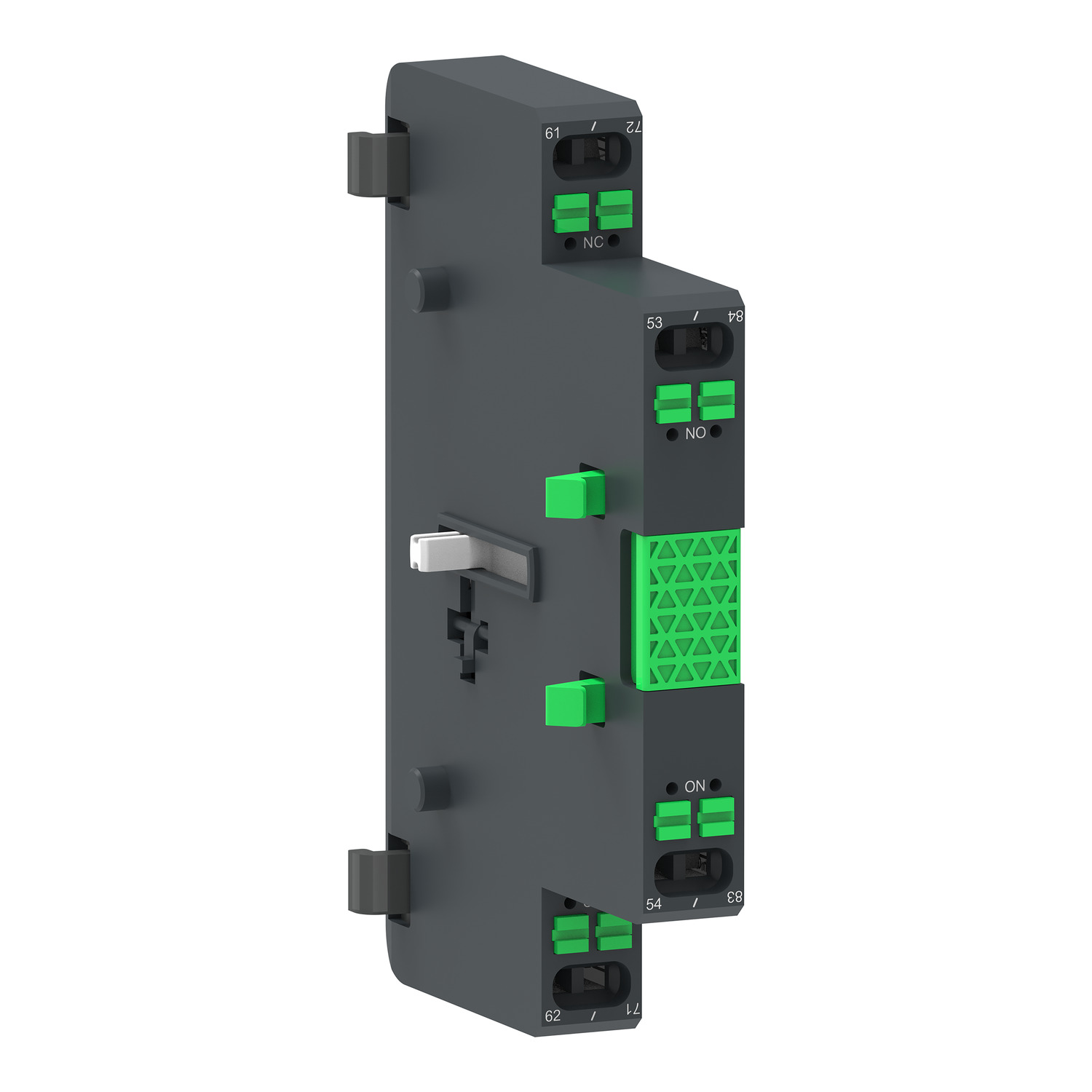

Schneider LAG8N113 | Auxiliary contact block,TeSys Giga contactor,1NO+1NC,side mounting,push-in terminals

Schneider LAG8N113 | Auxiliary contact block,TeSys Giga contactor,1NO+1NC,side mounting,push-in terminals



Technical Specifications

• Model Number: LAG8N113
• Series: TeSys Giga
• Contact Configuration: 1 Normally Open (1NO) + 1 Normally Closed (1NC)
• Mounting Type: Side Mounting
• Connection Type: Push-in Terminals
• Rated Operational Voltage: Up to 690V AC/DC
• Rated Operational Current: Up to 10A
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations at rated load
• Operating Temperature Range: -40°C to +70°C
• Standards & Certifications: IEC 60947-5-1, UL, CSA, CE

Key Features

1. Enhanced Control and Monitoring

   • Provides additional signaling capabilities to the main contactor, enhancing control system functionality.

2. Flexible 1NO + 1NC Contact Configuration

   • Supports multiple control applications, including interlocking and feedback signaling.

3. Side-Mounting Design for Easy Integration

   • Attaches seamlessly to TeSys Giga contactors, ensuring quick and secure installation.

4. Push-in Terminal Technology for Fast Wiring

   • Allows tool-free, secure, and vibration-resistant connections, reducing installation time.

5. High Electrical and Mechanical Durability

   • Designed for long-term reliability with up to 10 million mechanical operations.

6. Wide Voltage Compatibility (Up to 690V AC/DC)

   • Ensures versatility in various industrial and commercial applications.

7. Compact and Space-Saving Design

   • Helps optimize panel space while maintaining efficient electrical performance.

8. Compliance with International Standards

   • Meets IEC 60947-5-1, UL, CSA, and CE standards, ensuring global compatibility.

Applications

• Industrial Automation
  • Used in motor starters, conveyor systems, and control panels for enhanced control functions.
• Motor Control Centers (MCCs)
  • Provides interlocking and feedback mechanisms in motor starter applications.
• Building and HVAC Systems
  • Ensures efficient control of ventilation, heating, and cooling systems.
• Process and Manufacturing Industries
  • Enables safe and reliable control of production machinery and material handling systems.
