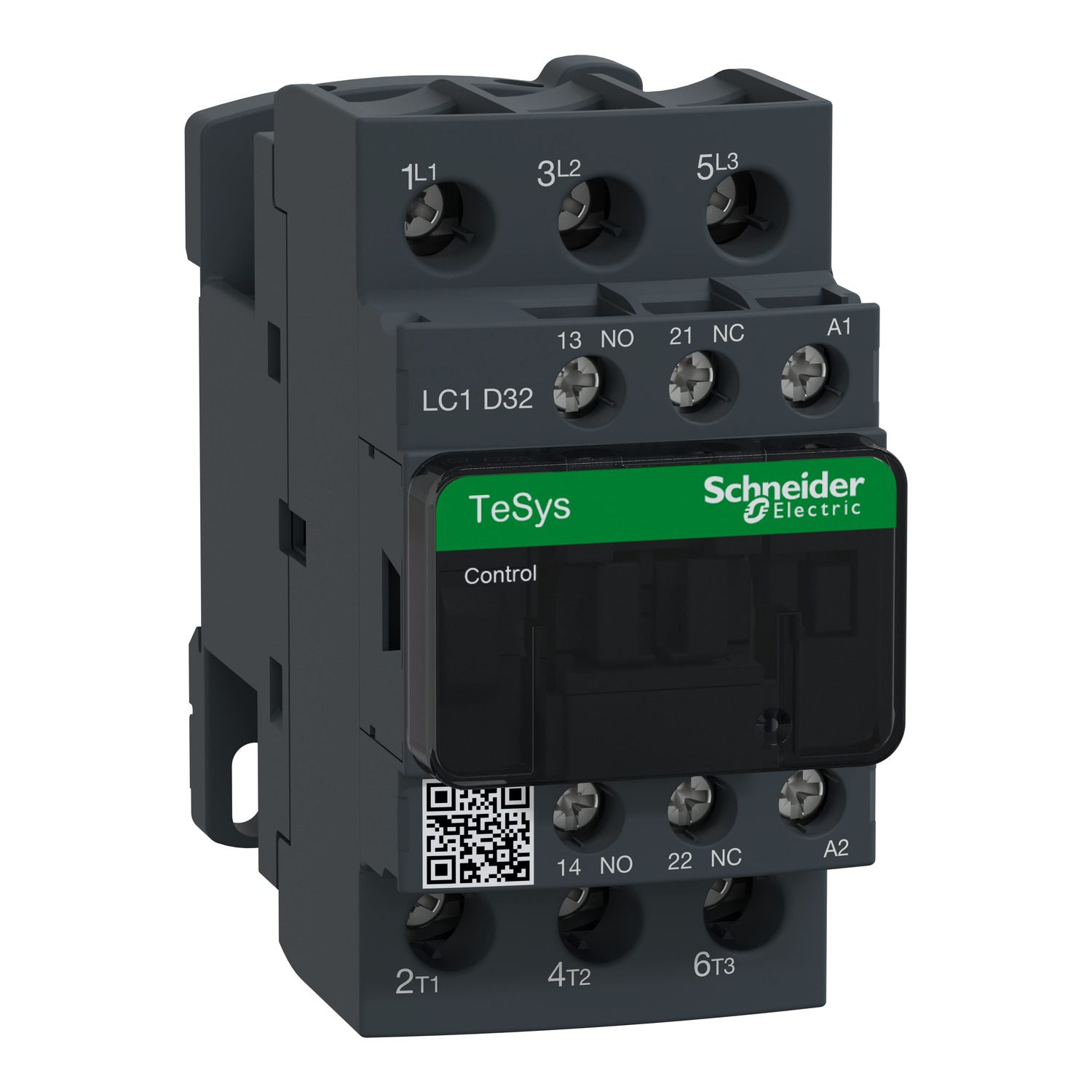

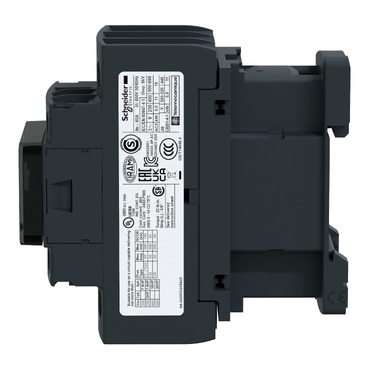

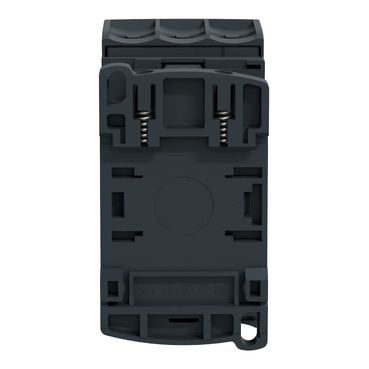

Schneider LC1D32M7 | TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 32 A – 220 V AC coil

Schneider LC1D32M7 | TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 32 A – 220 V AC coil

Technical Specifications

• Product Name: TeSys D Contactor

• Model Number: LC1D32M7

• Poles: 3P (Three normally open – 3 NO)

• Rated Operational Current (AC-3): 32 A

• Rated Operational Voltage: ≤ 440 V AC

• Control Circuit Voltage: 220 V AC, 50/60 Hz

• Utilization Category:

  • AC-3 (motor control): 32 A (up to 15 kW @ 400 V)

  • AC-1 (resistive loads): Higher current capacity

• Mechanical Durability: Up to 10 million operations

• Electrical Durability: Up to 1.2 million operations (AC-3)

• Mounting: DIN rail or panel mounting

• Auxiliary Contacts:

  • Built-in: None (optional add-ons available)

  • Optional: Auxiliary contact blocks (front or side mounting)

• Conductor Size:

  • Solid or stranded cables: 1 to 10 mm²

  • With cable lugs: 1 to 6 mm²

• Ambient Operating Temperature: -5°C to +60°C

• Standards Compliance: IEC 60947-4-1, IEC 60947-5-1

• Certifications: CE, UL, CSA, EAC

• Protection Rating: IP20 (when enclosed), conforming to IEC standards

Key Features

• Compact and Modular Design: Saves space in panels while allowing easy combination with overload relays, timers, and accessories.

• High Durability: Robust performance with millions of mechanical and electrical cycles.

• Fast and Reliable Switching: Suitable for frequent switching operations and demanding motor control tasks.

• Flexible Installation: Compatible with DIN rail and screw mounting, with front and side auxiliary modules.

• Wide Application Range: Handles motor loads up to 15 kW (400 V) in standard duty (AC-3).

• Safe Operation: Flame-retardant housing and secure terminal design ensure user safety and reliable connections.

• Global Compliance: Certified to international standards for use worldwide.

Applications

The LC1D32M7 is suitable for a variety of industrial and commercial applications, including:

• Motor Control Circuits: Start/stop control of induction motors

• HVAC Systems: Control of compressors, blowers, and fans

• Lighting Control Panels

• Pumping Stations and Water Treatment Systems

• Industrial Automation and Machinery

• Distribution Boards and Control Cabinets

• Building Management Systems (BMS)
