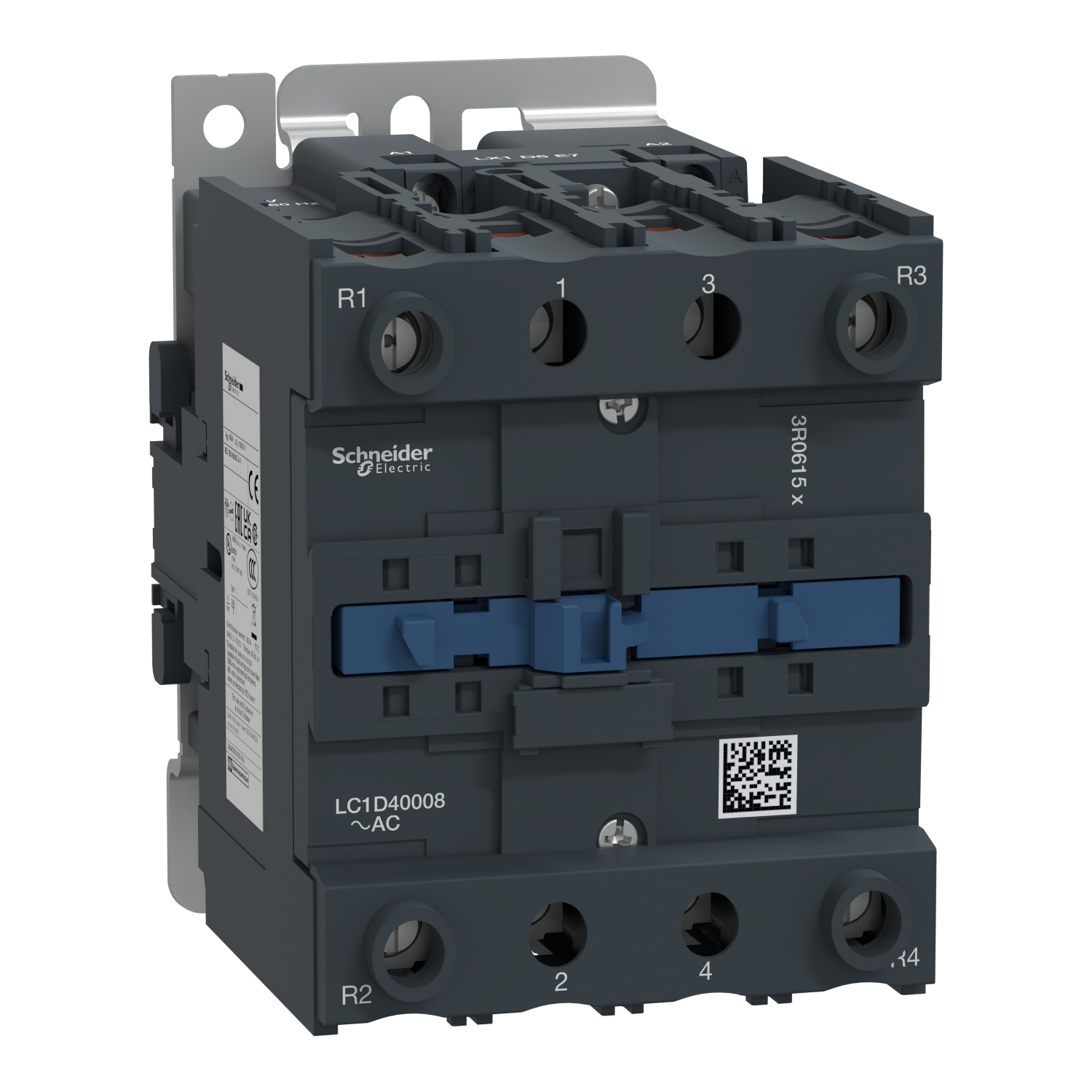

The Schneider Electric LC1D40008M7 is a TeSys D contactor designed for industrial and commercial applications, offering high performance and reliability. This contactor is engineered to control electrical motors and other heavy-duty electrical equipment, providing efficient and safe operation in various systems.

Specifications:

• Model: LC1D40008M7 TeSys D Contactor
• Type: 4-Pole (2 Normally Open + 2 Normally Closed Contacts)
• Rating: AC-1 (for general purpose, non-inductive loads)
• Voltage Rating: Operates with a voltage of ≤ 440 V
• Current Rating: Can handle up to 60 A.
• Coil Voltage: 220 V AC, suitable for both 50 Hz and 60 Hz applications.
• Size: Designed to fit into a variety of systems requiring substantial power control.

Features:

1. High Current Handling: Can manage up to 60 A, making it suitable for high-load applications and motor control.
2. Versatile Contacts: Equipped with 2 Normally Open (NO) and 2 Normally Closed (NC) contacts, offering flexibility in circuit control.
3. AC-1 Rating: Ideal for controlling non-inductive loads like resistive loads or general-purpose applications.
4. Easy Installation: Designed for quick and easy installation into various industrial control systems.
5. Long Operational Life: Built to last, offering durability and long-term reliability in demanding industrial environments.
6. High Voltage Tolerance: Works efficiently with voltage up to 440 V, allowing compatibility with a wide range of systems.

Applications:

• Motor Control: Excellent for controlling motors, particularly in heavy-duty equipment and industrial machinery.
• General Electrical Control: Used in systems where non-inductive loads need to be controlled reliably and safely.
• Industrial Systems: Perfect for a variety of industrial applications, including manufacturing processes, machinery, and automation systems.
• Power Distribution: Ideal for systems requiring high-power switching and protection, such as motor starters, pumps, and HVAC systems.

How It Works:

The LC1D40008M7 contactor operates by controlling the flow of electricity in a circuit. When the 220 V AC coil is energized, it activates the contactor, allowing the opening and closing of the electrical contacts. The 2 Normally Open contacts (NO) will close, while the 2 Normally Closed contacts (NC) will open, enabling or interrupting power flow to the connected equipment, such as motors or other devices.
